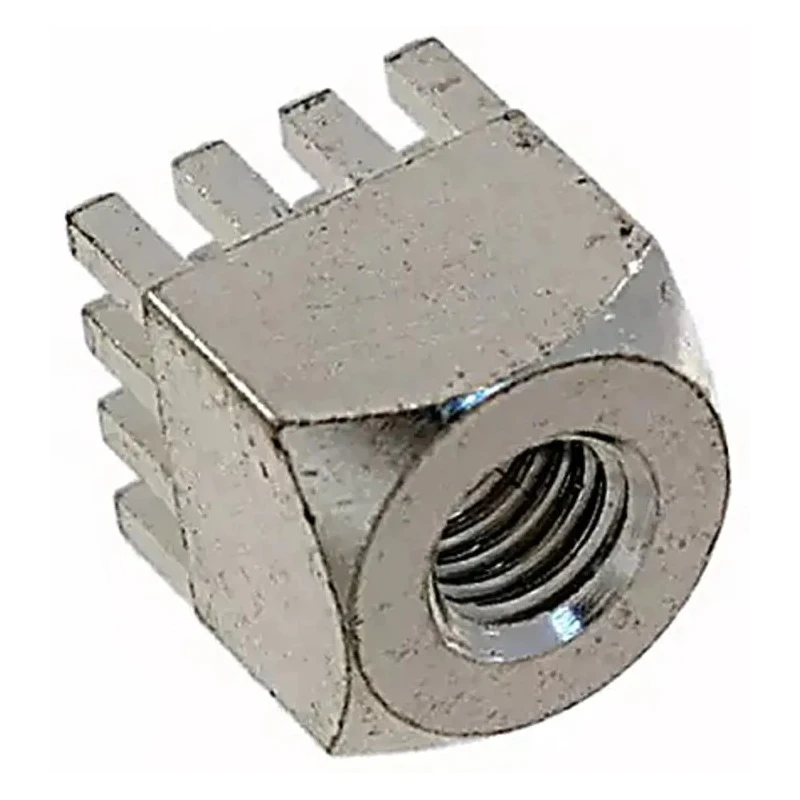

Wurth Elektronik REDCUBE Brass Screw Terminal, Vertical Orientation, 180A Current, Tin-Plated Brass Body, M4 Screw 7461095

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik REDCUBE Brass Screw Terminal, Vertical Orientation, 180A Current, Tin-Plated Brass Body, M4 Screw 7461095

Name: Wurth Elektronik REDCUBE Brass Screw Terminal, Vertical Orientation, 180A Current, Tin-Plated Brass Body, M4 Screw 7461095
Brand: Wurth Elektronik
SKU: 189002



Category Screw Terminals Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Screw Size	M4
Brand	Wurth Elektronik
Orientation	Vertical
Body Material	Brass
Current	180A
Model	7461095
Series	REDCUBE
Number of Legs	16
Number of Rows	4
Pitch	2.54mm
Body Plating	Tin

Key Features

Constructed from brass with tin plating for durability.
Vertical orientation suitable for PCB mounting using press-fit technology.
Equipped with M4 screw size and 16 legs arranged in 4 rows.
Pitch of 2.54mm enabling compact and secure connection.
Snap-in feature for reliable installation and resistance to vibration and shock.
Eliminates need for soldering by providing gas-tight electrical connections.
Part of the REDCUBE series engineered for robust power element applications.
Ideal for use in power supplies, converters, medical, wind, solar, automotive, agricultural and industrial sectors.

Product Description

Wurth Elektronik 7461095 brass screw terminal features a vertical orientation crafted from tin-plated brass, supporting a current capacity of up to 180A. These screw terminals are designed for reliable and efficient power transfer onto printed circuit boards (PCBs), incorporating press-fit technology for secure and vibration-resistant mounting without the need for soldering.

Manufactured under the REDCUBE series, these terminals use a full plain pin plate configuration to transfer currents close to 300A onto PCBs, ensuring robust electrical contact. The press-fit technology produces an environmentally stable, gas-tight connection resistant to vibration and shock, suitable for demanding industrial applications.

The body material is brass with tin plating, featuring a pitch of 2.54mm and 16 legs arranged in 4 rows using M4 screws. Its snap-in design simplifies assembly, requiring only simple tooling and enabling easy integration into production processes.

Applications include high current transfer in power supplies, converters, battery emergency power systems, DC to AC converters, and a wide variety of industrial, medical, renewable energy (wind and solar), agricultural, and automotive sectors. These terminals offer a rugged construction that enhances performance reliability in critical electronic systems.

Brass body with tin plating for corrosion resistance. Vertical orientation for PCB press-fit mounting. Current capacity of 180A for high-power applications. Snap-in feature for robust retention and vibration resistance. M4 screw size with 16 legs in 4 rows ensures strong mechanical connection.

Pitch size of 2.54mm allows for compact spacing on PCB. Eliminates soldering requirements enhancing production efficiency. Part of the REDCUBE series designed for reliable power element connections. Widely used across industrial, medical, renewable energy, automotive, and agricultural sectors.

Choose Wurth Elektronik REDCUBE screws for reliable, efficient, and cost-effective PCB current transfer. Browse more high-quality Screw Terminals and connector components in the Electronics & Electricals category on EnvMart.
