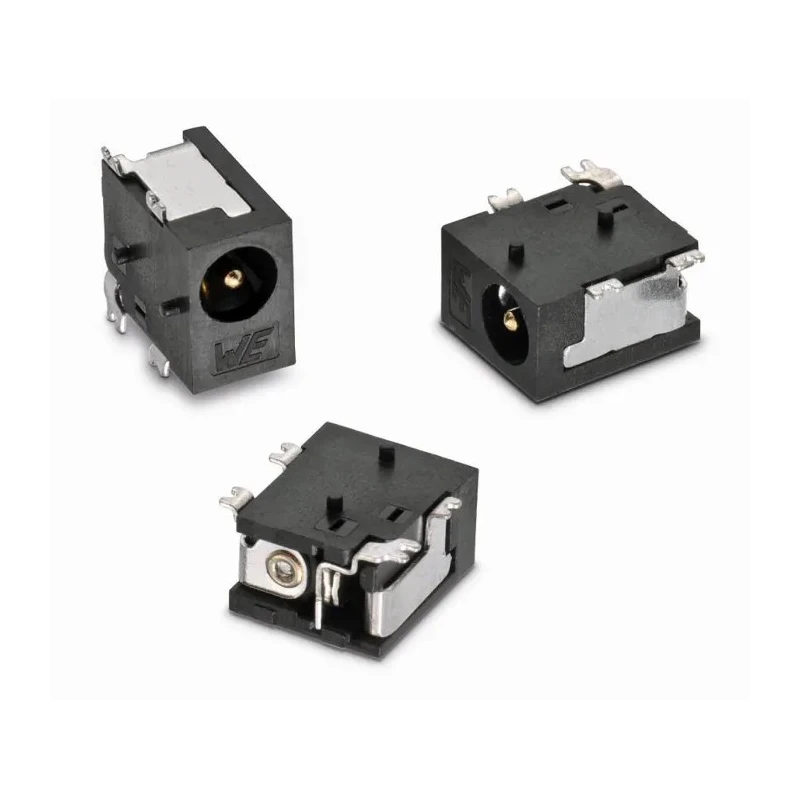

Wurth Elektronik WR-DC Right Angle DC Socket 5A 18V PCB Mount Length 8 mm Tin Gold 694103107102
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 18V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Length | 8mm |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Copper Alloy |
| Series | WR-DC |
| Termination Type | Solder |
| Outside diameter | 3.5mm |
| Inside Diameter | 1.05mm |
| Pin Diameter | 1mm |
| Contact Plating | Tin, Gold |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- The connector features a right angle orientation with PCB mount type.
- It has an inside diameter of 1.05 mm and outside diameter of 3.5 mm.
- The pin diameter is 1 mm with tin and gold-plated copper alloy contacts.
- Termination method is soldering ensuring reliable electrical connection.
- The product width is 15 mm and length is 8 mm, suitable for compact PCB layouts.
- Contact plating combines tin and gold for durability and conductivity.
- The contact material is copper alloy providing excellent electrical performance.
- It includes an internal normally closed single switch designed for SMT mount.
Product Description
Wurth Elektronik 694103107102 Right Angle DC Socket is designed as a low profile SMT mount DC power jack ideal for electronic devices requiring a robust 5 ampere, 18 volt connection on printed circuit boards. The connector exhibits a 3.5 mm outside diameter with an 8 mm length and 15 mm width, making it highly compact and suitable for space-constrained designs.
This DC socket is configured with a female connector gender and features right angle orientation to facilitate circuit board layout optimization. It incorporates a 1.05 mm inside diameter and 1 mm pin diameter contacts that are made of copper alloy and plated with a combination of tin and gold, enhancing corrosion resistance and electrical conductivity.
The component is terminated by solder and includes an internal normally closed single switch, making it suitable for automated SMT assembly processes. Its housing is constructed from black UL94-V0 PA9T, a highly flame retardant plastic, ensuring durability and compliance with safety requirements.
Designed for reliable power delivery, the part includes board guides to ensure precise PCB placement coupled with four soldering pads to secure mechanical connection and electrical contact. This socket is ideal for use in industrial, manufacturing, consumer electronics, and automotive applications where dependable DC power connectivity is essential.
The connector's tin and gold plating provide excellent conductivity and resistance to wear. Right angle orientation supports compact design and flexible mounting options. PCB mount type allows for surface mounting on printed circuit boards.
The component's flame retardant housing material enhances safety in electronic assemblies. Board guides assist accurate placement, improving assembly efficiency. The product delivers a confirmed rating of 5A current and 18V voltage.
Wurth Elektronik's WR-DC series, including model 694103107102, is trusted for quality and performance in critical DC power connection applications. Explore EnvMart for a comprehensive selection of electronics components, connectors, and accessories suited for your professional needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 18V and 5A, making it suitable for various electronic applications requiring reliable power connectivity.
The socket has a length of 8 mm, a width of 15 mm, an outside diameter of 3.5 mm, and an inside diameter of 1.05 mm.
The termination method for this connector is soldering, ensuring a reliable electrical connection on printed circuit boards.
The contacts are made of copper alloy and are plated with a combination of tin and gold, enhancing corrosion resistance and conductivity.
This model features a right angle orientation, which helps optimize circuit board layouts in compact designs.
Yes, it includes an internal normally closed single switch and is designed for SMT (Surface Mount Technology) assembly processes.
This socket is designed for PCB (Printed Circuit Board) mounting, allowing for surface mounting on electronic devices.
The pin diameter of this connector is 1 mm, which is compatible with standard PCB layouts.
This connector is ideal for industrial, manufacturing, consumer electronics, and automotive applications requiring dependable DC power connectivity.
The housing is made from black UL94-V0 PA9T plastic, which is highly flame retardant, enhancing safety in electronic assemblies.
The tin and gold plating on the contacts provides excellent conductivity and resistance to wear, improving the overall performance of the socket.
The connector is female, designed to accommodate compatible male connectors in electronic applications.
