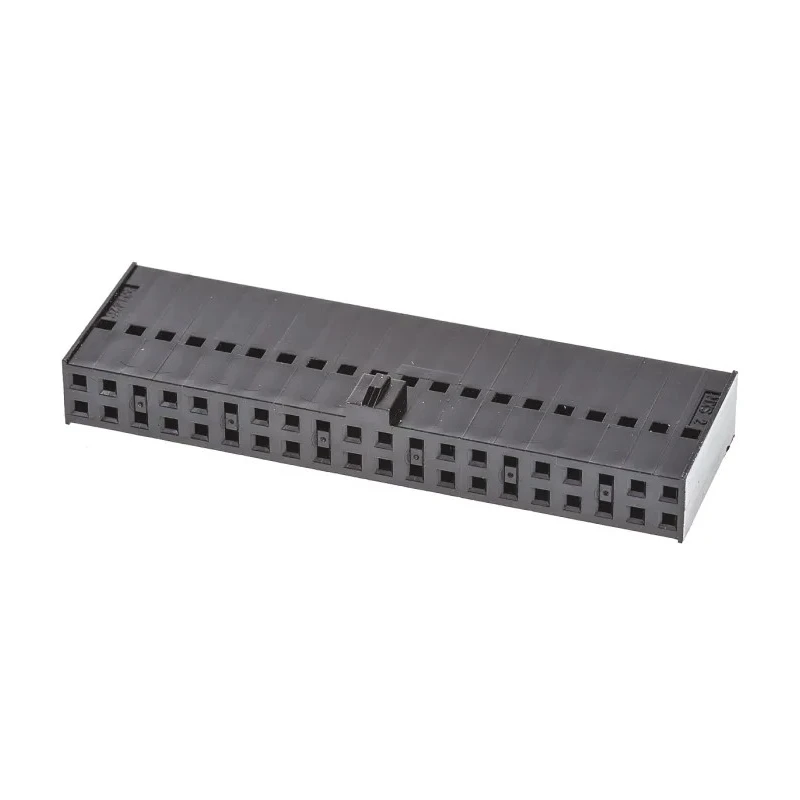

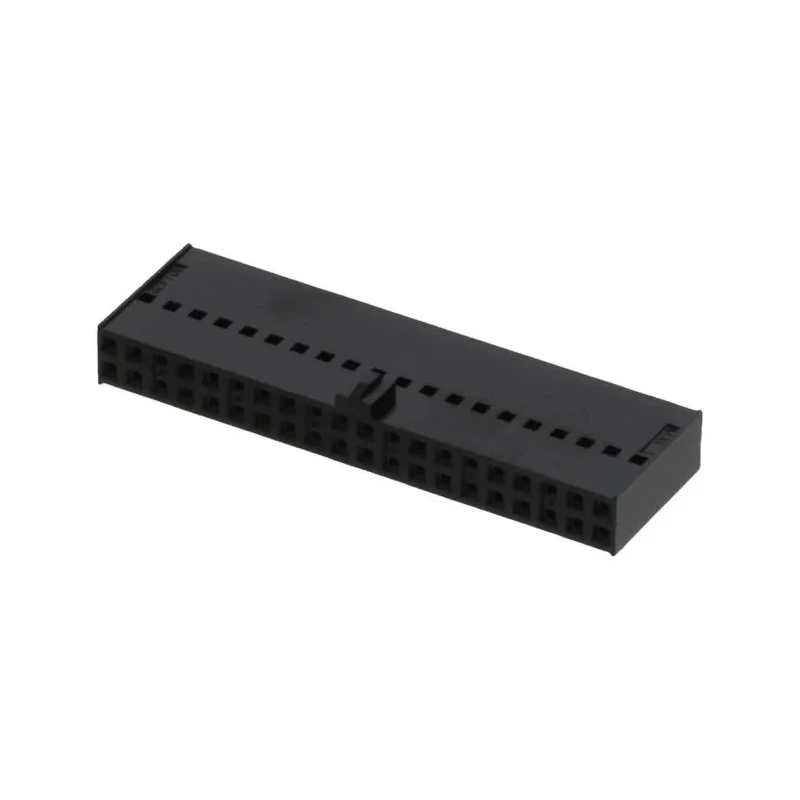

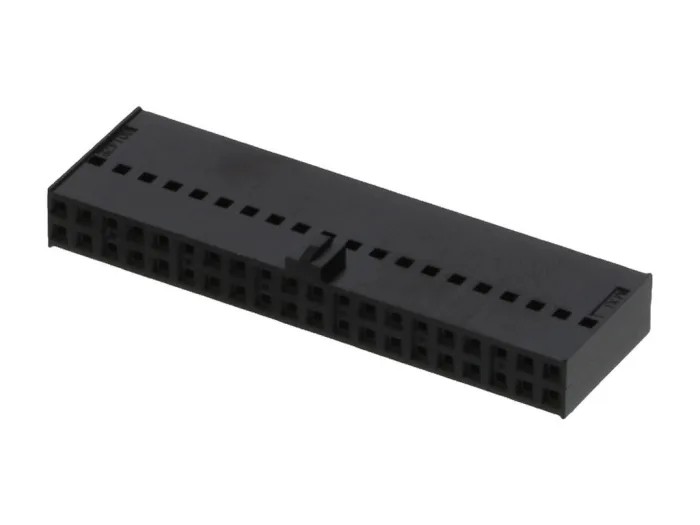

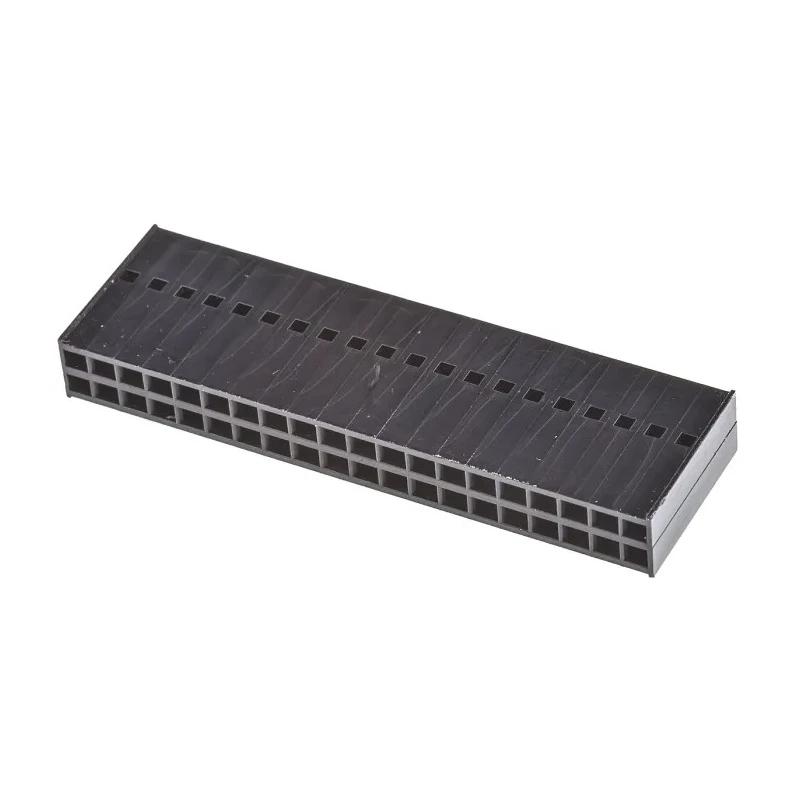

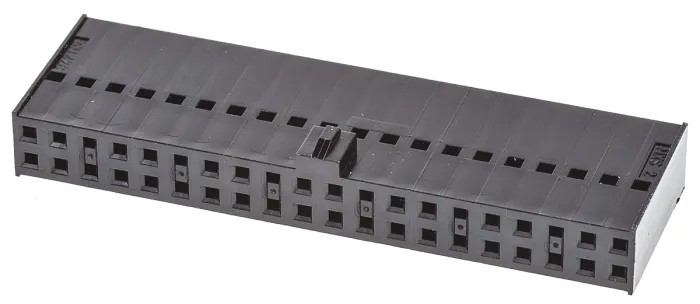

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 40 Way 2 Row Straight 90142-0040
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 50.8mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 40 |
| Connector Gender | Female |
Key Features
- This housing features a polarised-to-mating design to prevent incorrect connector alignment.
- It is made from durable PBT housing material which provides excellent insulation.
- The 50.8 mm length with 7.72 mm width and 15.24 mm depth allows a compact fit in electronic setups.
- The double-row construction accommodates up to 40 contacts to maintain organized wiring.
- Ideal for control panels, robotics, aerospace engineering, and other industrial applications.
- Compatible with C-Grid III connector range for secure cable mounting.
- The straight body orientation fits seamlessly into front-facing panel layouts.
- Designed to shield sensitive electrical links on PCBs from contaminants and shocks.
Product Description
The Molex 90142-0040 is a C-Grid III female connector housing designed for electrical and electronic applications requiring reliable interconnection.
This connector housing features a 2.54 mm pitch, providing precise spacing of contacts and accommodating 40 contacts arranged in two rows in a straight body orientation. Manufactured from high-quality PBT material, the housing is insulated to reduce electric shock risks and protects sensitive electrical links against contaminants.
Its compact external dimensions of 50.8 mm length, 7.72 mm width, and 15.24 mm depth enable integration into complex panel assemblies and control systems without occupying excessive space. The polarised-to-mating feature prevents incorrect alignment, ensuring stable and secure interconnections.
This housing is specifically engineered for use with the Molex C-Grid III series connectors, supporting cable mounting configurations. The dual row setup neatly organizes wiring in control panels, robotics systems, and aerospace engineering environments where reliable and precise connectors are critical.
Additional features include a lock-to-mating mechanism enhancing connector grip and ensuring durability during operational vibrations and movement. This housing offers a compact pitch size of 2.54 mm suitable for small conductors.
The material choice of PBT meets industrial performance standards for connector insulation. Its dimensions suit complex electronic device assemblies requiring high contact density. Polarised and locking features prevent assembly errors and improve connection reliability.
Applications span control panels, robotics, aerospace, and other industrial uses. This product aligns with industrial interconnection standards DIN 41651 and HE13/14, supporting a range of commercial and consumer electronic assembly needs.
Explore more high-performance Connector Housings at EnvMart for industrial, manufacturing, control, and aerospace applications to ensure your project's precision and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, allowing for precise spacing of contacts.
It can accommodate up to 40 contacts arranged in two rows.
The external dimensions are 50.8 mm in length, 7.72 mm in width, and 15.24 mm in depth.
The housing is made from PBT (polybutylene terephthalate), which provides excellent insulation.
It is suitable for applications in control panels, robotics, aerospace engineering, and other industrial uses.
The connector housing features a straight orientation, making it suitable for front-facing panel layouts.
Yes, it is specifically designed for use with the Molex C-Grid III connector range.
The polarised-to-mating design prevents incorrect connector alignment, ensuring stable and secure interconnections.
It includes a lock-to-mating mechanism that enhances connector grip and ensures durability during operational vibrations.
The connector gender of this housing is female, designed to fit with male connectors.
The country of origin for this product is India.
It aligns with industrial interconnection standards DIN 41651 and HE13/14, supporting various electronic assembly needs.
