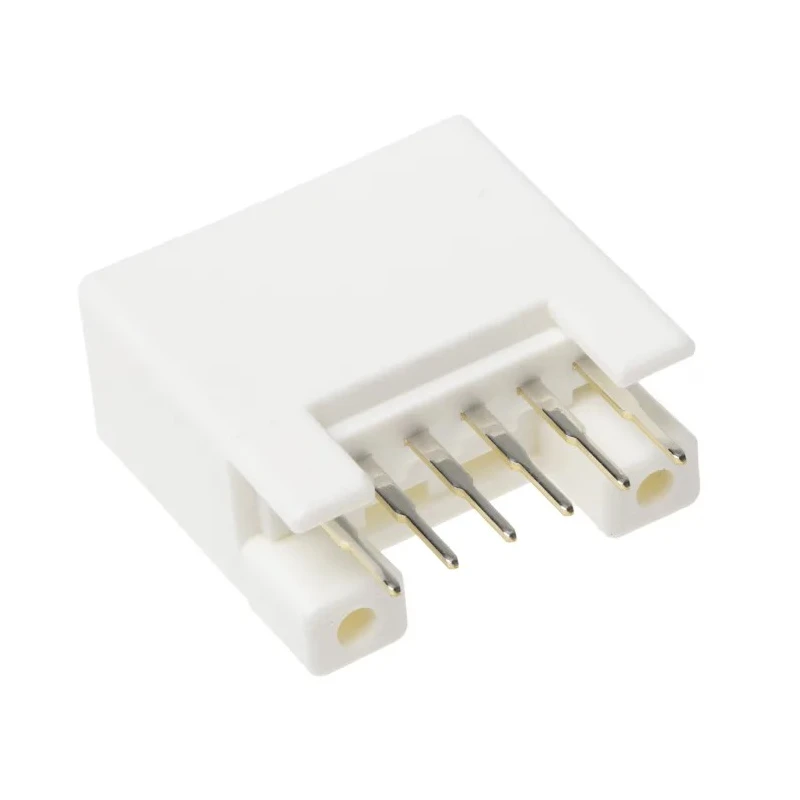

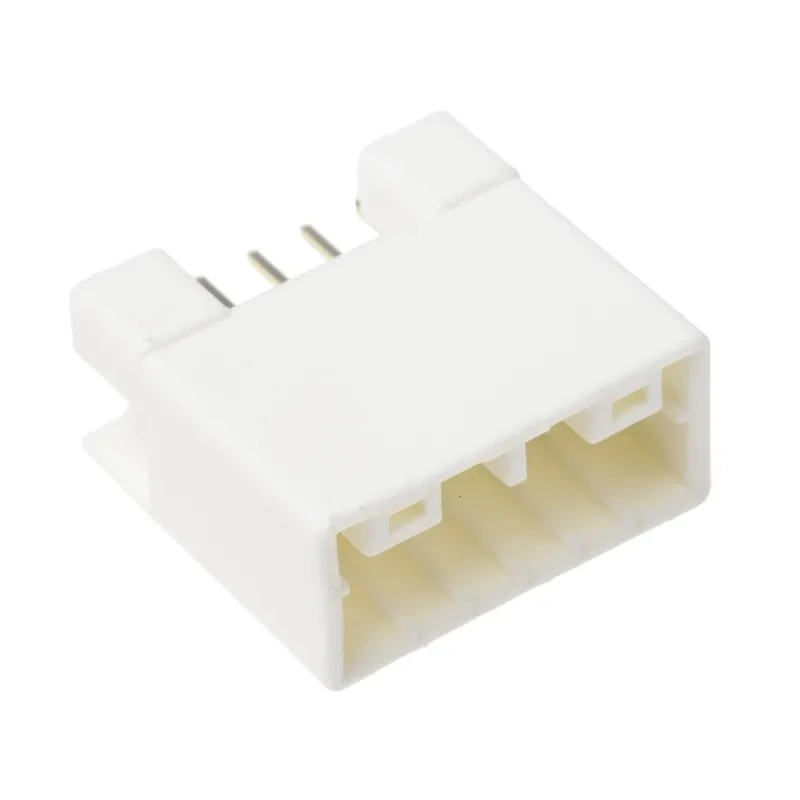

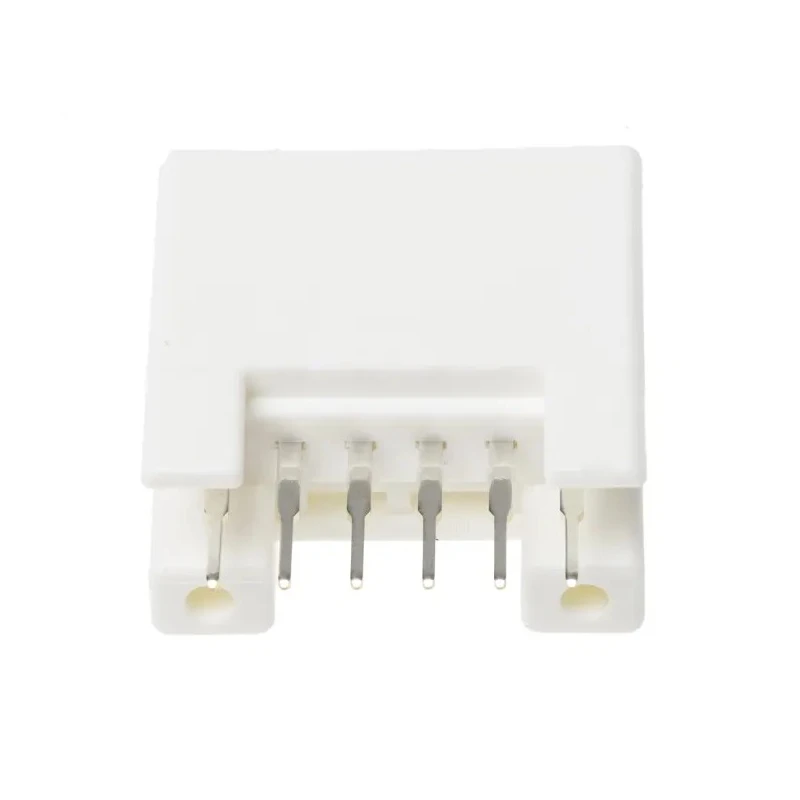

TE Connectivity MULTILOCK 070 Series Straight Through Hole PCB Socket 6-Contact 1 Row 3.5 mm Pitch Solder 12V 1-174954-1

TE Connectivity 1-174954-1 MULTILOCK 070 Series Straight Through Hole PCB Socket is a 6-contact, single-row connector designed for automotive wire-to-board and wire-to-wire applications operating at 12V. This miniature connector features a compact 3.5 mm pitch, enabling high-density wiring in a durable housing that protects the contacts from damage caused by rocking action during mating and unmating.

The MULTILOCK 070 series connectors incorporate a housing lance design allowing use of lanceless contacts to avoid tangling and deformation. The integral double locking system on the wire side guarantees secure contact retention under vibration and mechanical stress. The Mk II plug housing employs a two-piece double lock plate to prevent partial insertion and enhance reliability.

Constructed with brass female contacts that are tin-plated, this socket provides robust electrical connection while complying with RoHS environmental directives. The straight, through-hole PCB mount design facilitates solder termination and easy integration with automotive and industrial printed circuit boards.

Operating temperature ranges from -55°C to 105°C, making it suitable for automotive powertrain, safety systems, convenience and driver information systems, as well as other harsh environment applications. The connector system supports wire-to-board connections and is part of a versatile range including plugs, receptacles, and PCB headers requiring separate crimp contacts.

Compact 3.5 mm pitch allows high-density wiring. Durable housing with lance design protects contacts from mechanical damage. Integral double lock mechanism ensures positive contact retention. Wide operating temperature range from -55°C to 105°C.

Brass contacts with tin plating provide reliable electrical performance. Straight orientation and through-hole solder mounting for PCB integration. Compliance with RoHS standards.

This MULTILOCK 070 series PCB Socket is ideal for demanding automotive and industrial electrical systems requiring secure, robust wire connections. It is an essential component in powertrain, body and chassis, safety, and convenience systems, providing a dependable interface between wiring harnesses and printed circuit boards.
