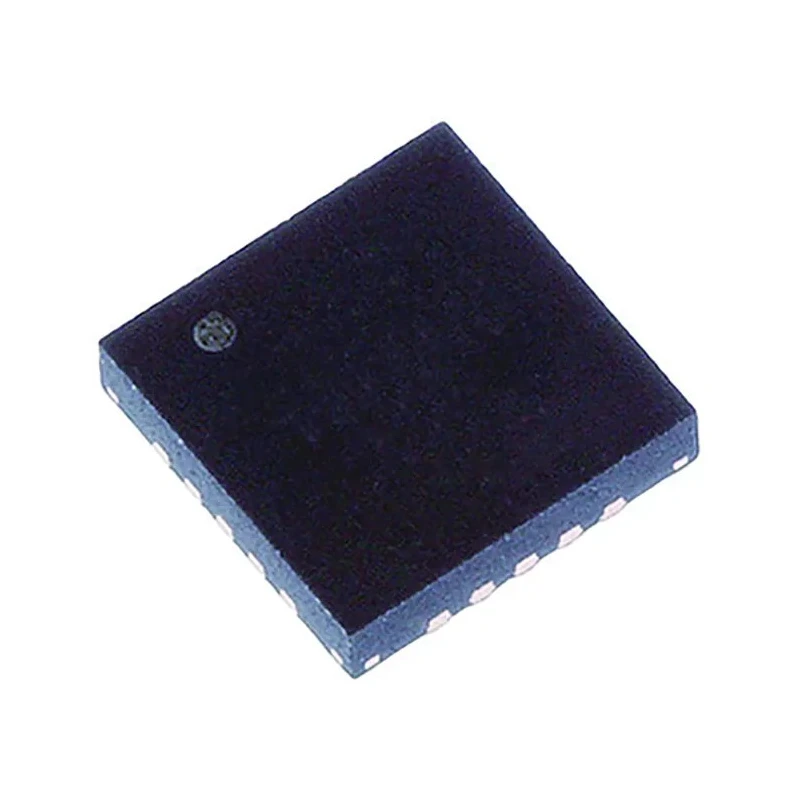

onsemi Dual Operational Amplifier 80 MHz Gain Bandwidth, 20-Pin Surface Mount QFN Package NCS5651MNTXG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.95mm |
| Length | 4mm |
| Model | NCS5651MNTXG |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCS5651 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 20 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 80MHz |
| Input Bias Current | 1 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 60V/μs |
Key Features
- Operates on supply voltage range from 6 V to 12 V.
- Includes two operational amplifier channels with low distortion.
- Delivers output current up to 1.5 A with rail-to-rail voltage swing within ±1 V.
- Programmable current limit with a single resistor.
- Features thermal warning and error flags for temperature monitoring.
- Operates within a temperature range from -40°C to 125°C.
- Compact 20-pin QFN package with dimensions 4 mm x 4 mm x 0.95 mm.
- Exposed thermal pad for improved heat dissipation.
Product Description
onsemi NCS5651MNTXG is a high-efficiency dual operational amplifier designed for power line drivers and similar industrial power amplification applications. Featuring an 80 MHz gain bandwidth product and accommodating a supply voltage from 6 V to 12 V, this 20-pin surface mount QFN device combines low distortion with robust power handling.
The dual operational amplifiers include a small-signal op-amp configurable as a unity gain follower buffer or part of a 4-pole low pass filter, alongside a powerful output amplifier capable of supplying peak currents up to 2 A and continuous output current of 1.5 A. The design guarantees voltage swing within 1 V or less from either supply rail at 1.5 A output, ensuring improved signal-to-noise ratio for demanding signal integrity.
Programmable current limit is set with a single resistor to tailor protection per application. The device incorporates two independent thermal flags with hysteresis: a thermal warning flag configurable for user-defined thresholds and a thermal error flag that triggers shutdown above 150°C junction temperature for safe operation.
The package's exposed thermal pad enhances heat dissipation, enabling reliable performance in industrial environments. Its operational temperature range from -40°C to 125°C allows use in harsh and variable conditions.
The NCS5651MNTXG is ideal for Power Line Communication (PLC) systems, actuator drivers, motor control circuits, and other applications requiring class A/B power amplification. Its compact 4 mm by 4 mm QFN footprint enables efficient PCB integration where space and thermal management are critical.
With integrated diagnostic and protection features, the amplifier supports robust design demands in industrial, commercial, and HVAC control systems. Enhance your industrial circuit designs with the reliable and versatile onsemi NCS5651MNTXG Operational Amplifier, available in a compact QFN package.
Explore additional op amps and semiconductor amplifiers at EnvMart for diverse electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is 80 MHz.
It can deliver a continuous output current of up to 1.5 A.
This unit operates on a supply voltage range from 6 V to 12 V.
The QFN package dimensions are 4 mm x 4 mm x 0.95 mm.
It operates within a temperature range from -40°C to 125°C.
It includes two independent thermal flags: a thermal warning flag and a thermal error flag that triggers shutdown above 150°C junction temperature.
This model uses surface mount technology.
The slew rate is 60 V/μs.
The input offset voltage is 10 mV.
It is suitable for applications such as Power Line Communication (PLC) systems, actuator drivers, and motor control circuits.
The input bias current is specified at 1 nA.
This operational amplifier has two channels.
