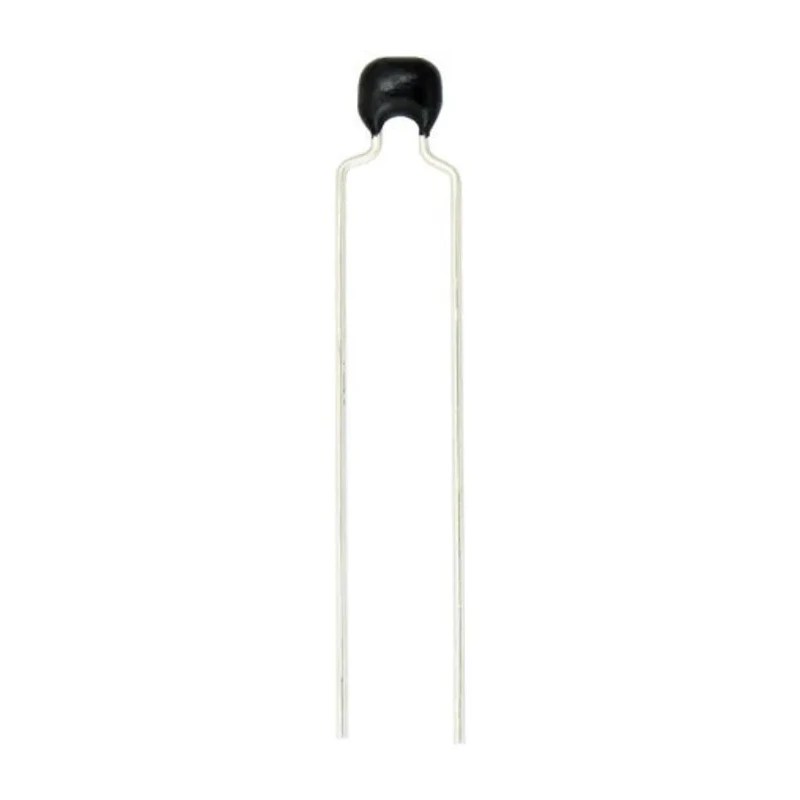

Vishay 1 nF Multilayer Ceramic Capacitor 50V DC ±5% Through Hole Radial K102J15C0GF53H5H

Vishay K102J15C0GF53H5H is a 1 nF Multilayer Ceramic Capacitor designed for demanding industrial and automotive applications. It features a stable C0G dielectric that ensures minimal capacitance change over a wide temperature range, making it ideal for filtering, sample-and-hold circuits, and timing functions.

This capacitor is built for through hole radial mounting, providing robust mechanical stability on printed circuit boards. The series supports a maximum operating temperature of 175°C, exceeding many standard capacitors, and meets strict automotive AEC-Q200 qualifications, ensuring reliable performance under harsh environmental conditions.

The compact size, with a length and width of 3.8 mm and seated height of 2.6 mm, along with 5 mm lead spacing, enables integration in space-constrained assemblies. Lead diameters of 0.5 mm are compatible with typical PCB hole sizes, and leads are 100% tinned copper clad for corrosion resistance and solderability.

This model also complies with UL 94 V-0 flame retardant epoxy resin standards, enhancing safety in electrical designs. Its ±5% capacitance tolerance ensures precise performance, and the Class I suppression class characterizes it with low dissipation factor and high Q factor.

Typical applications include EMI filtering and sensor modules in automotive systems such as turbo chargers, brake controls, throttle valves, and exhaust gas sensors. The capacitor's high stability and quality make it suitable for industrial manufacturing, electronic instrumentation, and HVAC control systems.

Capacitance of 1 nF suitable for filtering and timing applications. Through hole radial mount type for secure PCB installation. C0G dielectric provides stable, low-loss performance across temperature. Rated for voltage of 50V DC and operating temperature up to 175°C.

Complies with AEC-Q200 automotive standard for harsh environments. Compact dimensions of 3.8 mm length, 3.8 mm width, and 2.6 mm height. Lead spacing of 5 mm and lead diameter of 0.5 mm supports reliable connections. RoHS compliant with UL, EN, IEC, and EIA standards.

Manufactured in China with high-quality tin-coated copper leads. Discover Vishay capacitors and other electronic components by browsing the Electronics Components category at EnvMart.
