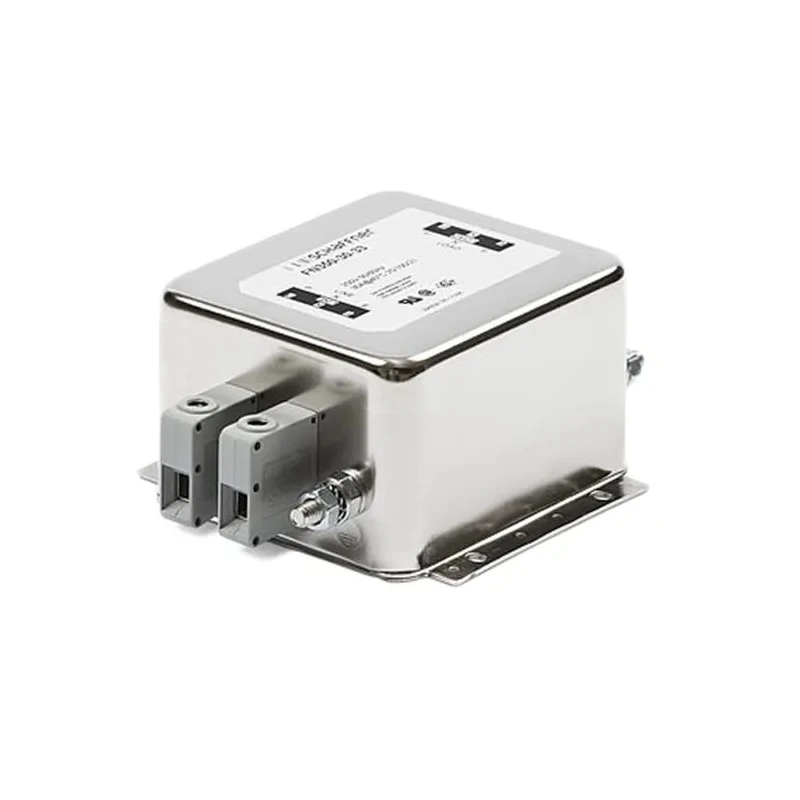

Schaffner Chassis Mount EMC Filter 12A 250V AC 400Hz Terminal Block Single Phase FN350

Schaffner FN350 chassis mount EMC filter is a compact and robust single phase filter solution specifically engineered for motor drive and industrial equipment applications. Rated for a maximum current of 12A and a maximum voltage of 250V AC at 400Hz, this flange mount filter delivers effective electromagnetic interference (EMI) suppression through its single stage design and high component values.

The filter features industrial grade terminal blocks facilitating rapid and secure installation in demanding environments. Its durable chassis mount form factor enables easy integration into control panels and enclosures with limited space.

Operating reliably across a temperature range of -25°C to 100°C, the FN350 filter ensures stable performance even under harsh industrial conditions. The filter capacitance of 4.7μF and a leakage current of only 4.9mA contribute to its efficient noise attenuation and low power loss rated at 5.7W.

This EMC filter meets IEC 60950 safety standards, verifying its compliance with internationally recognized electrical safety requirements. Measuring approximately 105mm in length, 57mm in height, and 138.5mm in depth, it fits well in automated equipment, power supplies, testing instruments, and office electronic devices where EMI reduction is essential.

Terminal block termination for easy wiring. Single stage design for effective EMI noise reduction. Compact dimensions and chassis mounting for installation flexibility. High maximum current rating of 12 amps. Operating frequency optimized at 400 Hz.

Low leakage current enhancing energy efficiency. Compliance with IEC 60950 safety standard. Works reliably in temperature range -25°C to 100°C. Power loss limited to 5.7 watts. Ideal use in automation, power supply units, and office equipment.

This industry-grade EMC filter from Schaffner ensures reliable suppression of electromagnetic noise in single phase drive and control equipment, helping to maintain compliance with EMC regulations and enhancing device longevity and performance. Explore more electronic components in the EMC Filter category available at EnvMart for your industrial and commercial needs.
