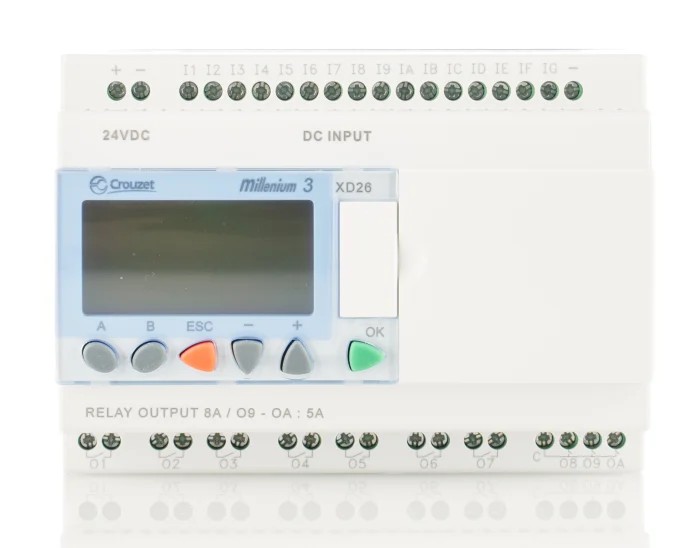

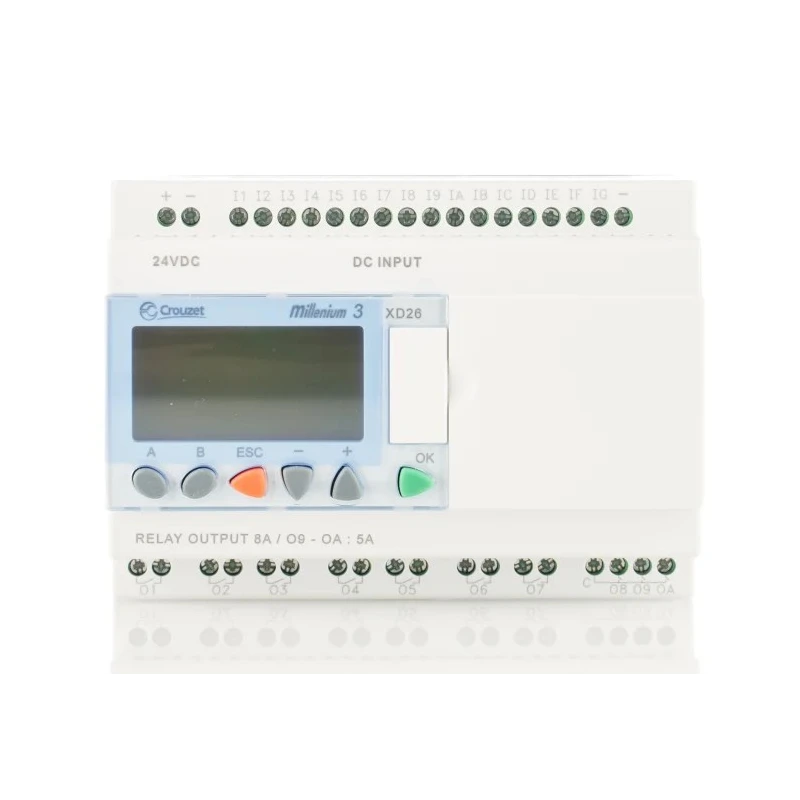

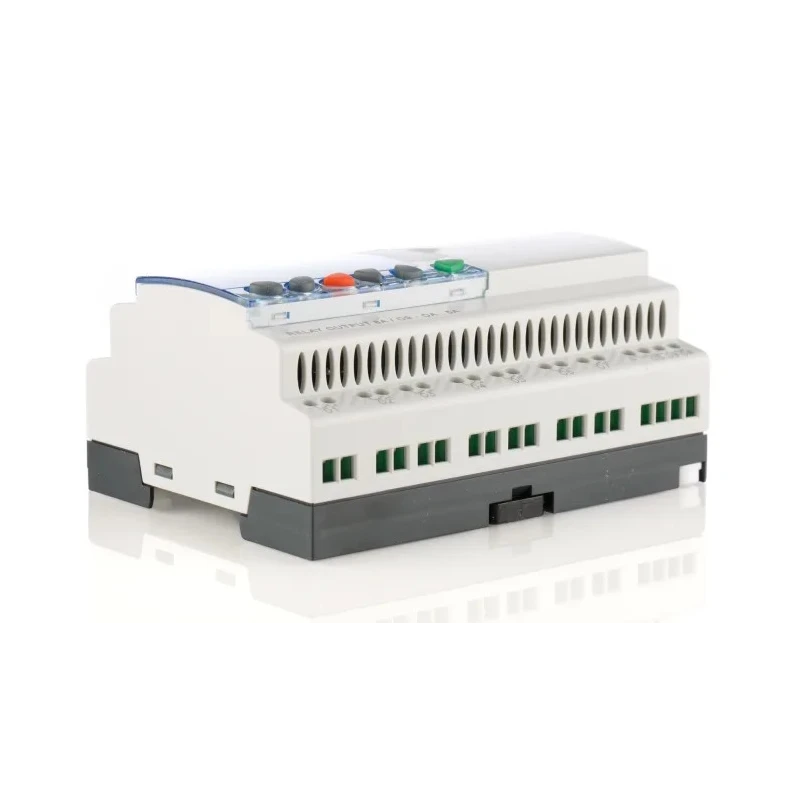

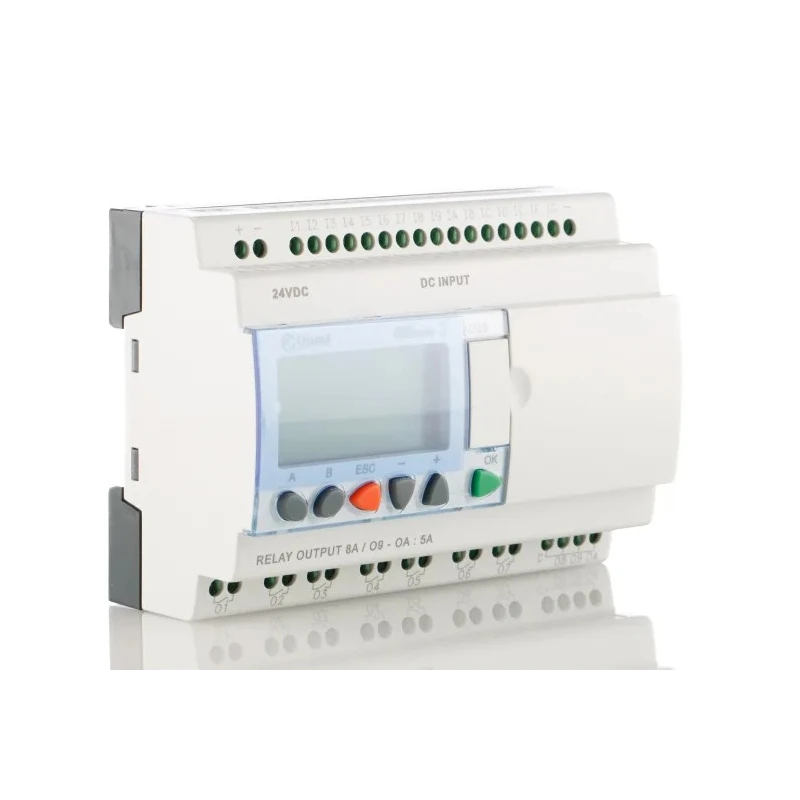

Crouzet Millenium 3 Series 16-Input Analogue and Digital Logic Module, 10 Relay Outputs, 24V DC, 8A Output Current 88970161

The Crouzet 88970161 Millenium 3 Series Logic Module is a robust industrial automation component providing 16 inputs, including 6 analogue inputs with 10-bit resolution, and 10 relay outputs. Designed for demanding applications, it delivers a steady supply voltage of 24V DC and supports an output current of up to 8A, ensuring reliable control of connected devices.

This DIN rail-mounted module features a screw termination method for secure wiring. It incorporates a backlit green LCD display offering intuitive monitoring and is programmable via ladder logic or function block diagram languages. The module includes battery backup to protect critical program data during power interruptions.

Communication is facilitated through dual ports supporting serial and USB interfaces, with Modbus protocol allowing read/write access to two 8-word registers. Additionally, the logic module supports network creation options enabling communication across up to seven Millennium 3 units, boosting system scalability and flexibility.

Engineered to operate in temperatures ranging from -20°C to 55°C, this Logic Module meets a broad spectrum of industrial environmental conditions. The compact design measures 124.6mm in length, 100mm in width, and 59.5mm in depth, fitting efficiently into control panels.

This module is ideal for controlling automation in automatic washing machines, agricultural machinery, HVAC systems, and heating applications. The combination of analogue and digital inputs makes it versatile for various signal types, enhancing its utility across operational scenarios.

Operates with 16 inputs, 6 analogue 10-bit resolution and digital inputs. Provides 10 relay outputs for robust switching capabilities. Supports ladder logic and function block diagram programming methods. Includes battery backup to prevent program loss during power failure.

Features serial and USB port communications with Modbus protocol. Compact DIN rail mounting with screw termination for secure installation. Operating temperature range between -20°C and 55°C allows flexible deployment. Expandable network configuration supports multiple units communication.

Backlit LCD for enhanced user interface and monitoring. Designed and manufactured in France ensuring quality and reliability. Explore the range of Crouzet industrial automation products at EnvMart for all your control system requirements.
