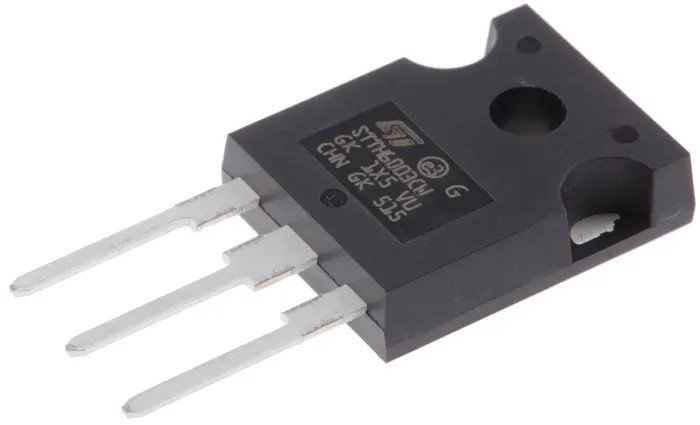

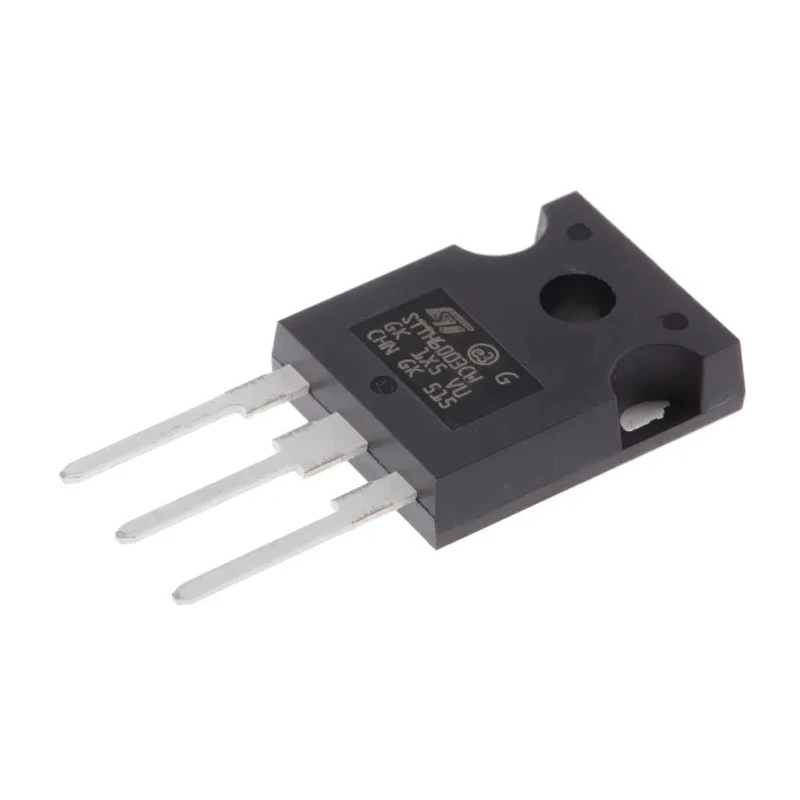

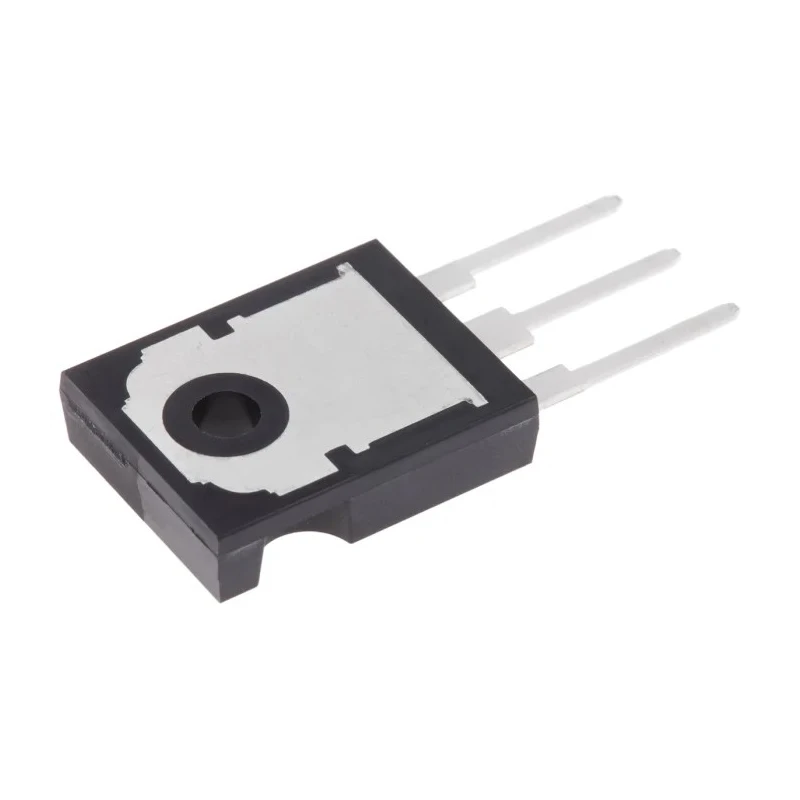

STMicroelectronics 300 V 60 A Switching Diode 3-Pin Through Hole TO-247 STTH6003CW
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH6003CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH6003 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 300V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 60μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 55ns |
Key Features
- Designed for through hole mounting with 3-pin configuration.
- Maximum continuous forward current of 60 amperes ensuring high current capability.
- Peak reverse repetitive voltage rating of 300 volts for robust operation.
- Fast switching diode with a peak reverse recovery time of 55 nanoseconds.
- Maximum forward voltage drop of 1.25 volts for efficient conduction.
- Operating temperature range from -40°C to 150°C for industrial environments.
- RoHS compliant with no automotive standard qualification.
Product Description
STMicroelectronics STTH6003CW is a high-performance switching diode housed in a 3-pin TO-247 through hole package, designed for power and industrial applications requiring robust and efficient rectification. It features a maximum continuous forward current of 60 amperes and a peak reverse repetitive voltage rating of 300 volts, making it suitable for high current and voltage environments.
This switching diode operates with a peak forward voltage drop of 1.25 volts and has a fast peak reverse recovery time of 55 nanoseconds, which makes it ideal for switching power supplies, inverters, and other high frequency circuits. The device supports an operating temperature range from -40°C to 150°C, capable of withstanding harsh industrial conditions.
The compact TO-247 package measures 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width, providing ease of mounting and reliable mechanical strength for through hole applications. The diode assembly shows a common cathode configuration for straightforward circuit integration.
This product is RoHS compliant, ensuring it meets environmental standards for restriction of hazardous substances. Although not suited for automotive standards, it suits various industrial and commercial electrical equipment requiring switching diodes with high current handling capabilities.
Designed for through hole mounting with a 3-pin TO-247 package. High current rating of 60 A continuous forward current for demanding applications. Peak reverse voltage of 300 V protects circuits against voltage spikes. Fast switching speed with peak reverse recovery time of 55 ns enhances efficiency.
Wide operating temperature from -40°C to 150°C supports varied working environments. RoHS compliant ensuring environmentally safe manufacturing and use.
Ideal for industrial power supplies, converters, and rectifier applications where durable and high switching speed diodes are required. Explore more semiconductor diodes and power components on EnvMart for your electronic design needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 60 amperes, ensuring it can handle high current applications effectively.
This model has a peak reverse repetitive voltage rating of 300 volts, providing robust operation in high voltage environments.
The diode features a fast peak reverse recovery time of 55 nanoseconds, enhancing its efficiency in high frequency circuits.
The TO-247 package measures 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width.
It operates within a temperature range of -40°C to 150°C, making it suitable for harsh industrial environments.
This diode is designed for through hole mounting, featuring a 3-pin configuration for easy integration into circuits.
The maximum forward voltage drop is 1.25 volts, which contributes to efficient conduction during operation.
Yes, this product is RoHS compliant, ensuring it meets environmental standards for the restriction of hazardous substances.
The diode has a common cathode configuration, which simplifies circuit integration.
The peak non-repetitive forward surge current for this diode is rated at 300 amperes, allowing it to handle brief surges effectively.
This switching diode is ideal for industrial power supplies, converters, and rectifier applications requiring high current and fast switching capabilities.
The peak reverse current is rated at 60 microamperes, indicating its performance under reverse bias conditions.
