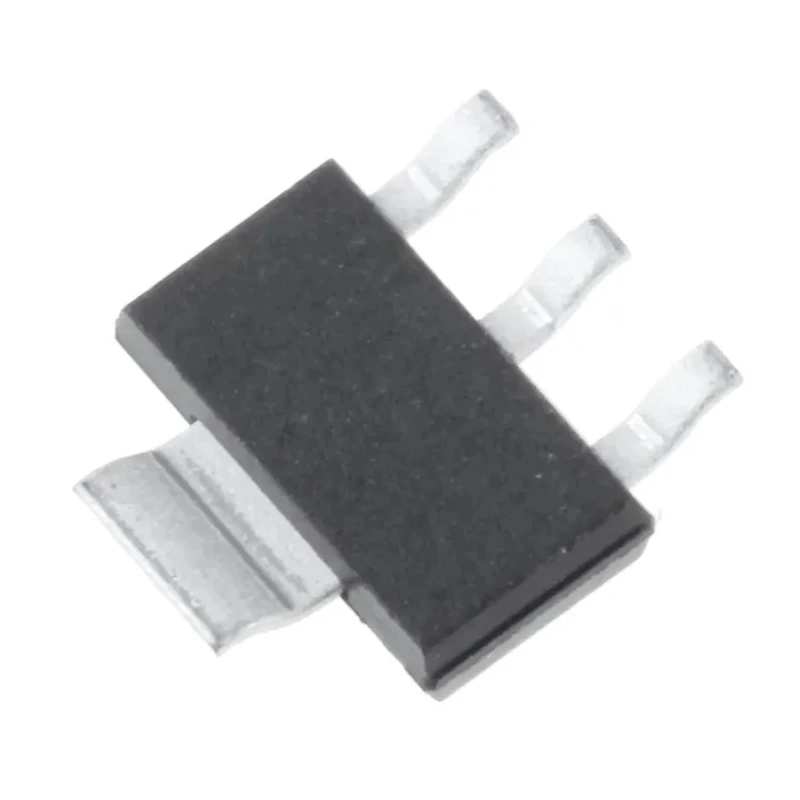

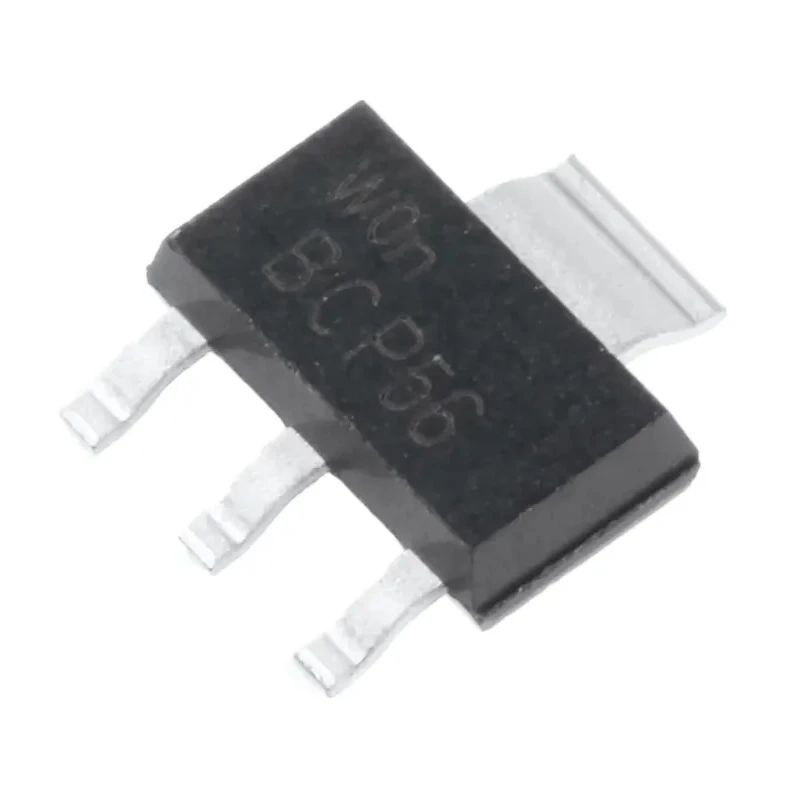

Nexperia Bipolar Transistor NPN 1 A 80 V 4-Pin SOT-223 Surface Mount BCP56,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Bipolar Transistor NPN 1 A 80 V 4-Pin SOT-223 Surface Mount BCP56,115

Name: Nexperia Bipolar Transistor NPN 1 A 80 V 4-Pin SOT-223 Surface Mount BCP56,115
Brand: Nexperia
SKU: 185460
Price: 0.28 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.65mm
Length	6.5mm
Model	BCP56,115
Width	3.5mm
Mount Type	Surface
Series	BCP56
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Collector Emitter Voltage Vceo	80V
Minimum DC Current Gain hFE	63
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	100V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	960mW
Maximum DC Collector Current Idc	1A
Transistor Configuration	Single
Maximum Transition Frequency ft	180MHz
onsemi NSV40301MZ4G NPN Transistor, 3 A, 40 V, 3 + Tab-Pin SOT-223Brand	ON Semiconductor
onsemi BCP56-16T3G NPN Transistor, 1 A, 80 V, 3 + Tab-Pin SOT-223Brand	onsemi

Key Features

Maximum collector current of 1 ampere for reliable switching applications.
Collector-emitter voltage rating of 80 volts suitable for medium voltage electronics.
Surface mount package type SOT-223 with 4 pins for efficient PCB mounting.
NPN transistor configuration providing standard bipolar operation.
Maximum power dissipation up to 960 milliwatts for moderate power handling.
Operating temperature range from -55°C to 150°C suitable for industrial environments.
Transition frequency of 180 MHz enabling high-frequency amplification.
Complies with RoHS environmental standards.

Product Description

Nexperia BCP56,115 is a general-purpose NPN bipolar transistor designed for electronic, power, and connector applications. Featuring a maximum DC collector current of 1 ampere and a maximum collector-emitter voltage of 80 volts, this transistor is housed in a compact 4-pin SOT-223 surface mount package ideal for PCB assembly.

This transistor supports a wide operating temperature range from -55°C up to 150°C, making it suitable for harsh industrial, automotive, and electronic circuits requiring reliable switching and amplification. The device offers a power dissipation capability of 960 milliwatts and a transition frequency of 180 MHz, enabling performance in medium-frequency applications.

With a typical minimum DC current gain (hFE) of 63 and transistor polarity NPN, the BCP56,115 is commonly used in amplification and switching circuits. The compact package dimensions of 6.5 mm by 3.5 mm by 1.65 mm allow for space-saving designs.

This transistor complies with RoHS environmental standards and meets the automotive AEC-Q101 standard, ensuring quality and reliability in automotive and industrial settings. Maximum collector current of 1A for efficient current switching.

Collector-emitter voltage rating of 80V for medium voltage operation. Surface mount SOT-223 package with 4 pins for compact PCB designs. NPN polarity for standard bipolar transistor applications. Power dissipation up to 960mW suitable for moderate power loads.

Wide operating temperature range from -55°C to 150°C for harsh environments. High transition frequency of 180MHz for high-speed switching. RoHS compliant for environmental safety. Meets AEC-Q101 automotive quality standards.

Compact size dimensions for space-constrained applications.

This transistor is ideal for use in industrial, automotive, laboratory, and electronic manufacturing sectors, supporting switching, amplification, and signal processing use cases with reliable performance and automotive-grade robustness.

Explore our full range of Bipolar Transistors and Nexperia semiconductor products on EnvMart for trusted industrial-grade electronic components.
