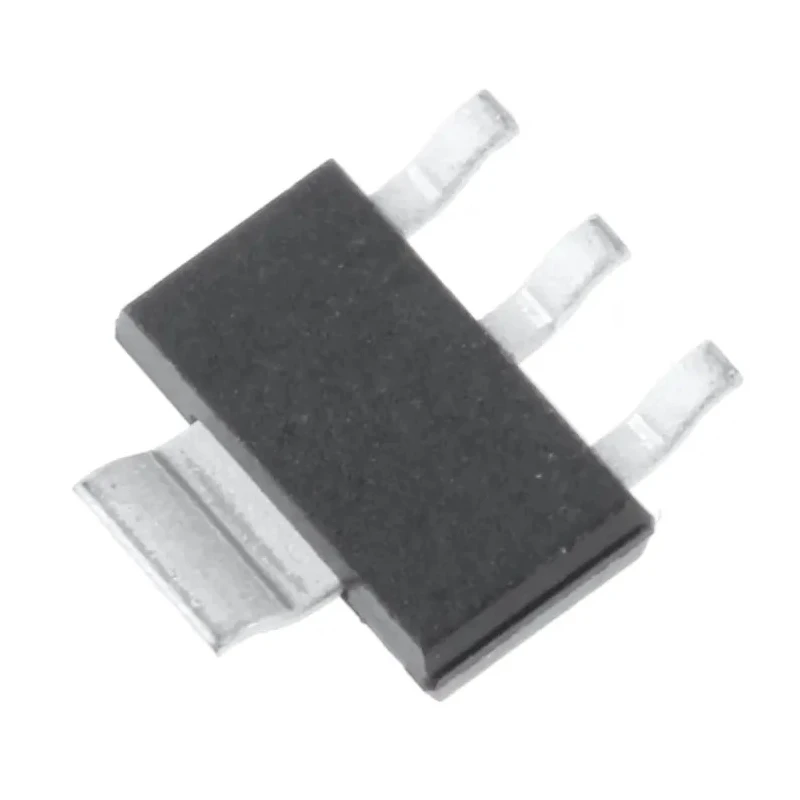

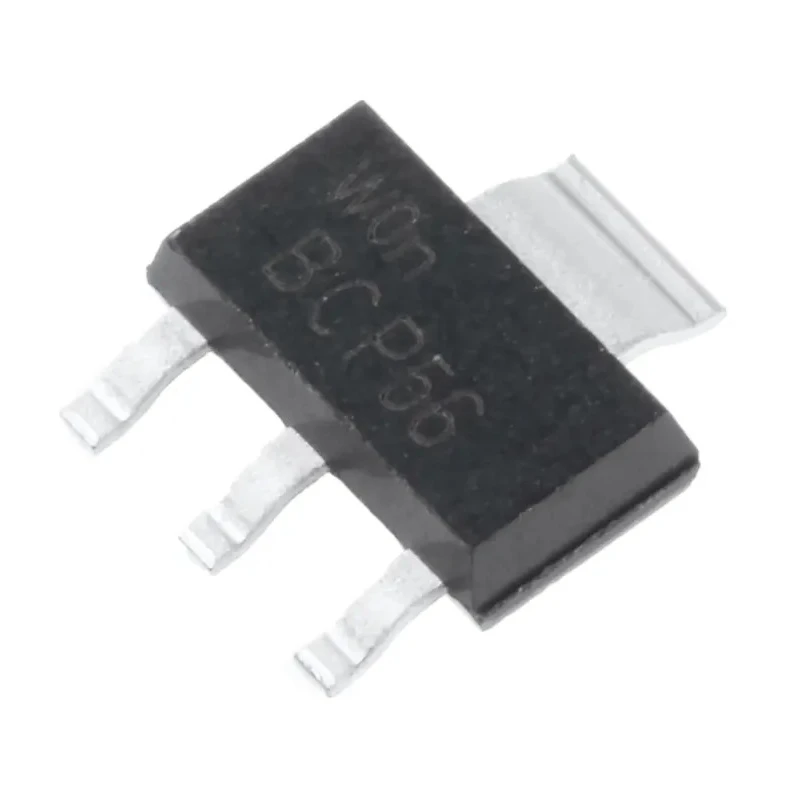

Nexperia NPN Transistor Bipolar, 1 A Collector Current, 80 V Collector Emitter Voltage, 4-Pin SOT-223 Package BCP56,115

Nexperia BCP56,115 Bipolar NPN Transistor is designed for versatile electronic applications requiring up to 1 A collector current and 80 V collector emitter voltage. Packaged in a compact 4-Pin SOT-223 surface mount type, this transistor supports enhanced PCB layout efficiency and reliable performance.

The device offers a collector base voltage maximum of 100 V and emitter base voltage maximum of 5 V, fitted for a variety of circuit designs. It dissipates up to 960 mW power, facilitating moderate load switching and amplification tasks in industrial, automotive, and consumer electronics sectors.

Operating reliably over a wide temperature range from -55°C to 150°C, it meets the stringent AEC-Q101 automotive standard, making it suitable for automotive electronics and harsh environments. The transistor's high transition frequency of 180 MHz enables fast switching and high-frequency operation in communication systems and power management circuits.

Dimensions are precisely measured as 6.5 mm length, 3.5 mm width, and 1.65 mm height allowing compact integration in modern electronic assemblies. Featuring RoHS compliance, this transistor aligns with environmental and safety standards applicable worldwide.

Single NPN transistor configuration for general purpose switching and amplification. Surface mount SOT-223 package enables space-saving PCB implementation. Max DC collector current of 1 A suitable for low to medium power electronic circuits.

Collector emitter voltage rated at 80 V for reliable high voltage operation. Power dissipation of 960 mW supports continuous moderate load handling. Wide operating temperature from -55°C to 150°C ensures durability in diverse environments.

AEC-Q101 certification confirms automotive grade quality and reliability. High transition frequency of 180 MHz enables high speed switching applications. Compact size with precise dimensions facilitating modern electronics integration.

This transistor is ideal for applications in industrial electronics, automotive systems, communication equipment, and consumer devices. It provides dependable performance where space, durability, and electrical parameters are critical.
