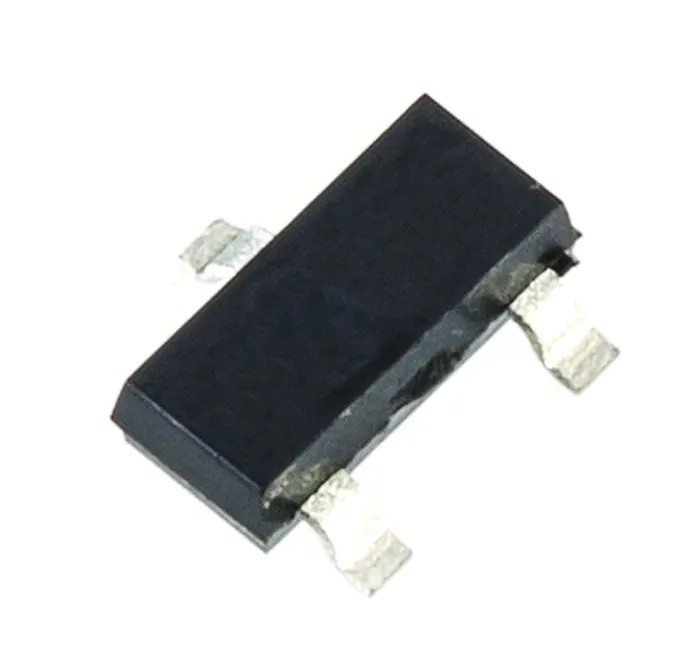

Nexperia Transistor 100 mA NPN, 45 V, 3-Pin SOT-23 BC847,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Transistor 100 mA NPN, 45 V, 3-Pin SOT-23 BC847,215

Name: Nexperia Transistor 100 mA NPN, 45 V, 3-Pin SOT-23 BC847,215
Brand: Nexperia
SKU: 185433
Price: 0.03 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BC847,215
Width	1.4mm
Mount Type	Surface
Series	BC847
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	45V
Minimum DC Current Gain hFE	110
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz
onsemi BC847BLT1G Transistor, 100 mA NPN, 45 V, 3-Pin SOT-23Brand	onsemi

Key Features

The transistor supports a maximum DC collector current of 100 mA.
Maximum collector-emitter voltage is rated at 45 V for reliable operation.
Comes in a surface mount SOT-23 package suitable for automated PCB assembly.
Offers a typical minimum DC current gain (hFE) of 110 for amplification applications.
Capable of dissipating up to 250 mW of power with robust thermal characteristics.
Designed to operate in temperatures ranging from -65°C up to 150°C ensuring wide industrial usability.
Meets RoHS compliance and automotive standard AEC-Q101 for high reliability.
Ideal for bipolar transistor general-purpose semiconductor applications in electronics and electrical engineering.

Product Description

The Nexperia BC847,215 is a general-purpose NPN bipolar transistor designed for amplification and switching applications in electronic circuits. Packaged in a small 3-pin SOT-23 surface-mount device, it enables compact PCB layouts and efficient automated assembly.

This transistor supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 45 V, making it suitable for a wide range of low power electronic designs including consumer electronics, instrumentation, and signal processing.

The device features a typical minimum DC current gain (hFE) of 110, providing good amplification characteristics. It can dissipate up to 250 mW of power with a stable operation temperature range from -65°C to 150°C for use in varied environmental conditions.

With RoHS compliance and meeting the automotive-grade AEC-Q101 standard, the BC847,215 transistor is reliable for automotive and industrial electronics. Its compact dimensions of 3 mm length, 1.4 mm width, and 1.1 mm height facilitate space-saving designs.

Applications include industrial, laboratory instruments, communication devices, and HVAC control systems where a compact, reliable bipolar transistor is needed. The surface mount SOT-23 package enhances manufacturing efficiency and circuit density.

Maximum DC collector current: 100 mA. Maximum collector-emitter voltage: 45 V. Surface mount SOT-23 package. Minimum DC current gain (hFE): 110. Power dissipation up to 250 mW. Operating temperature range: -65°C to 150°C.

RoHS compliant and AEC-Q101 automotive qualified. Package dimensions: 3×1.4×1.1 mm (L×W×H). Explore EnvMart's extensive catalog of semiconductor components including Bipolar Transistors to find solutions for your next electronics project with trusted quality standards.
