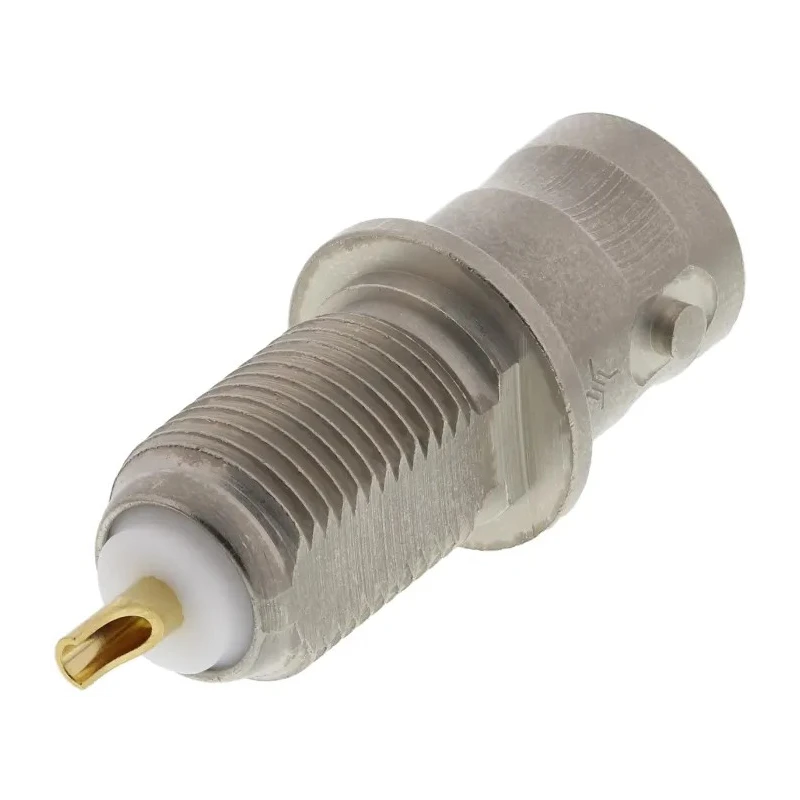

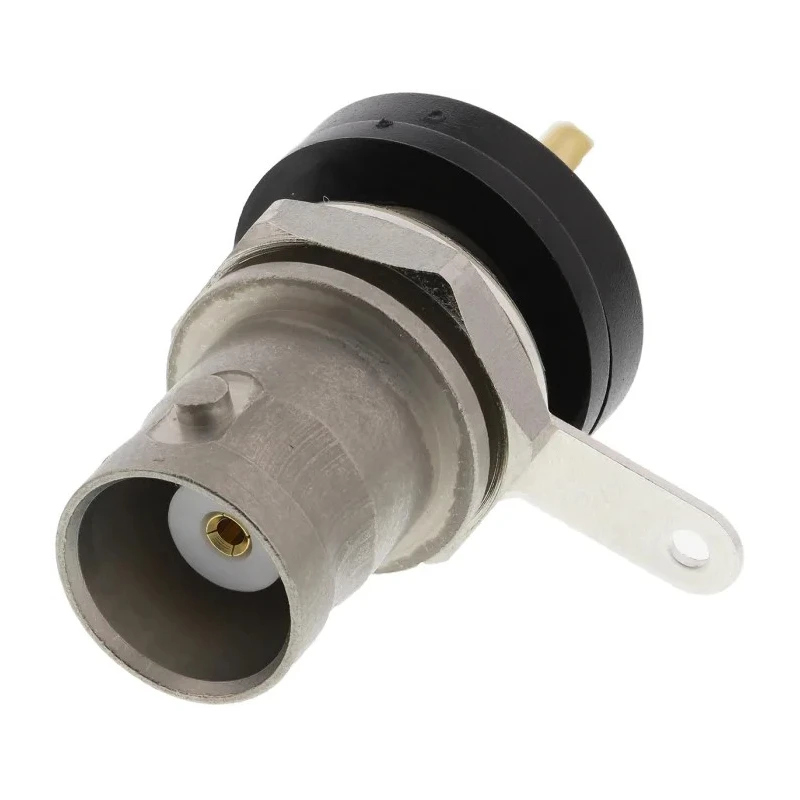

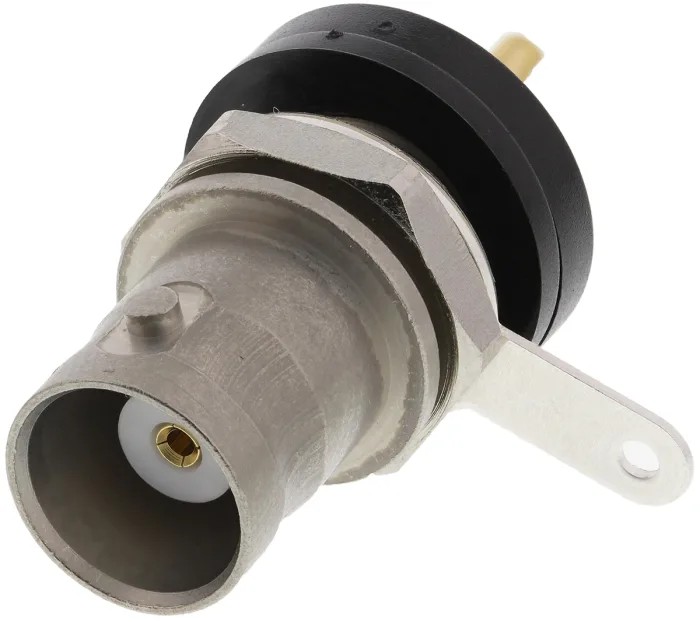

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Solder J01001A1222
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001A1222 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| binder, jack Panel Mount, 50Ω, Solder Termination, Straight BodyBrand | Telegartner |
Key Features
- Features a nickel-plated body and gold-plated beryllium copper contacts for enhanced durability.
- Rated for operating frequencies up to 4 GHz, supporting high-frequency applications.
- Suitable for temperature ranges from -65°C to 165°C, ensuring wide environmental adaptability.
- Employs a simple bayonet coupling mechanism for quick quarter-turn connection and disconnection.
- Equipped with a PTFE insulator and insulation washers available in multiple colors for identification.
- Designed for panel mounting with a bulkhead for secure installation.
- Termination is by solder, facilitating solid electrical connections.
- Connector polarity is normal with female contact gender both on connector body and contact.
Product Description
Telegartner J01001A1222 BNC Series Coaxial Connector is a high-quality, panel mount female coaxial connector with a 50 Ω impedance and straight body solder termination, designed to ensure reliable and durable signal transmission up to 4 GHz. It features a nickel-plated body and gold-plated beryllium copper contacts for enhanced conductivity and longevity.
This connector operates efficiently over a broad temperature range, from -65°C to 165°C, making it suitable for demanding environmental conditions in industrial, electronic, and telecommunications applications. The simple bayonet coupling mechanism allows quick and secure quarter-turn mating and unmating.
The connector includes PTFE insulation and is available with color-coded insulating washers to facilitate easy identification and to meet diverse installation requirements. It is intended for panel mounting with a bulkhead design that ensures firm and stable placement on equipment or control panels.
Telegartner coaxial connectors are widely used in signal, data, and video transmission systems in commercial, industrial, laboratory, and telecommunications environments, providing exceptional performance and durability.
Features a nickel-plated body and gold-plated beryllium copper contacts for enhanced durability. Rated for operating frequencies up to 4 GHz, supporting high-frequency applications. Suitable for temperature ranges from -65°C to 165°C, ensuring wide environmental adaptability.
Employs a simple bayonet coupling mechanism for quick quarter-turn connection and disconnection. Equipped with a PTFE insulator and insulation washers available in multiple colors for identification. Designed for panel mounting with a bulkhead for secure installation.
Termination is by solder, facilitating solid electrical connections. Connector polarity is normal with female contact gender both on connector body and contact. Applications include signal, data, and video transmission in industrial and electronic systems.
This Telegartner Coaxial Connector is an excellent choice for professionals seeking robust and reliable connectors that ensure minimal signal loss and long service life in RF applications. Explore the Electronics & Electricals category at EnvMart to discover more connectors and related components from Telegartner and other top manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for operating frequencies up to 4 GHz, making it suitable for high-frequency applications.
It can operate efficiently in temperature ranges from -65°C to 165°C, ensuring adaptability in various environmental conditions.
This connector employs solder termination, which facilitates solid electrical connections.
The connector features a nickel-plated body and gold-plated beryllium copper contacts for enhanced conductivity and durability.
It is designed for panel mounting with a bulkhead for secure installation.
This model has an impedance of 50 Ω, which is standard for coaxial connectors used in RF applications.
The connector has a female contact gender, both on the connector body and the contact.
Yes, it is equipped with PTFE insulation and is available with color-coded insulating washers for easy identification.
This model features a straight body orientation, allowing for straightforward installation and connection.
The connector is manufactured in Germany.
It is suitable for signal, data, and video transmission in industrial, electronic, and telecommunications applications.
It employs a simple bayonet coupling mechanism for quick quarter-turn connection and disconnection.
