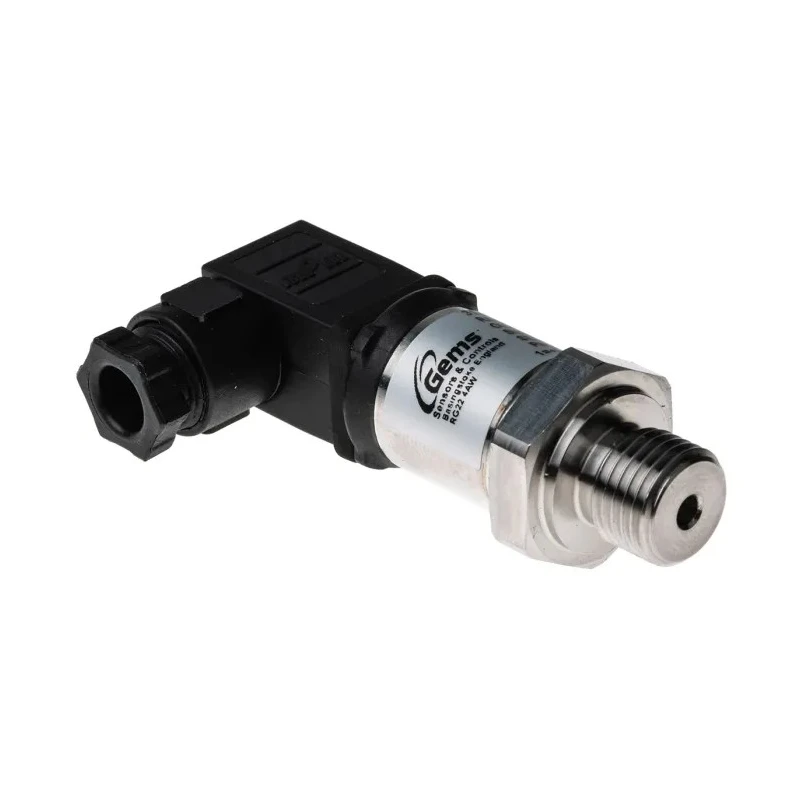

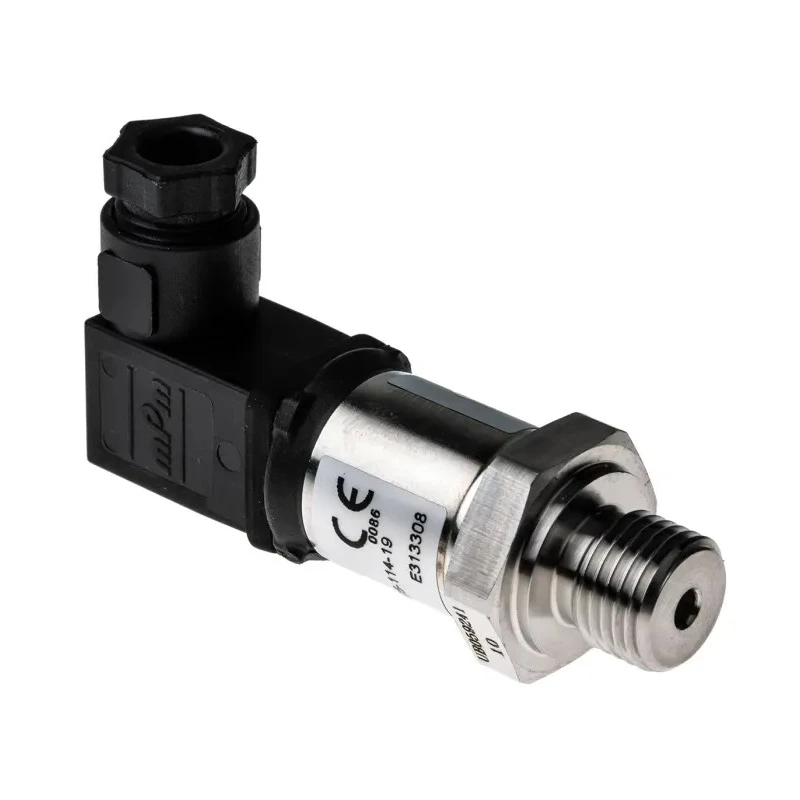

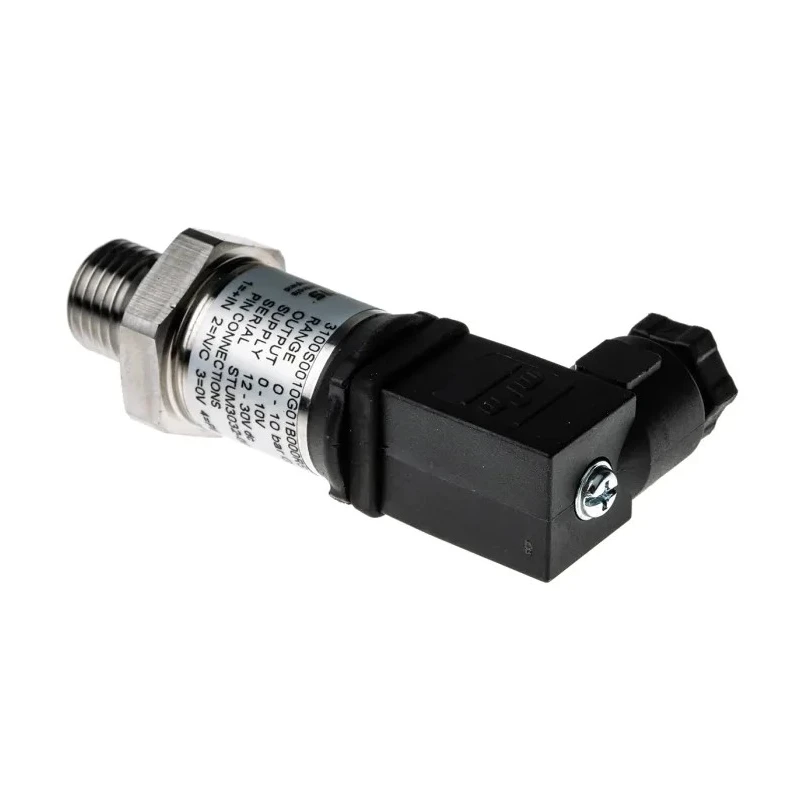

Gems Sensors 3100 Series Pressure Sensor Analogue Output 0 to 10 bar 0.25% Accuracy IP65 IP67 3100S0010G01B000

Gems Sensors 3100S0010G01B000 pressure sensor from the 3100 Series offers precise analogue output for relative pressure readings ranging from 0 to 10 bar. This sensor provides an accuracy of 0.25% full scale, delivering reliable and consistent measurements essential for critical industrial processes.

Manufactured with all stainless steel wetted parts, this device withstands corrosion and mechanical wear, making it ideal for hydraulic, fluid, oil, hydraulic oil, and air media. The 3100 series sensors incorporate a sputter element technology that enhances temperature performance and sensor stability across a wide temperature range from -40°C to +125°C.

The sensor supports a broad supply voltage range between 8V minimum and 30V DC maximum, and features a rapid 1 ms response time, suitable for dynamic pressure measurements in various industrial applications including automation, manufacturing, and fluid control systems.

Designed for compactness, the 3100 series is ideal where space constraints exist without compromising on performance. With an IP65 and IP67 rating, this pressure sensor is protected against dust ingress and water immersion, suitable for use in demanding environments.

Additional features include high proof pressures, multiple electrical and pressure connection options, and analog output versatility for integration with industrial control systems. This sensor is RoHS compliant, ensuring adherence to environmental and safety standards.

Features stainless steel wetted parts ensuring durability and corrosion resistance. Operates with a supply voltage range from 8V to 30V DC. Response time of 1 millisecond suits fast dynamic pressure applications. Suitable for measuring hydraulic fluids, oil, air, and other fluids in industrial environments.

Built to withstand harsh conditions with IP65 and IP67 ingress protection ratings. Wide operating temperature range from -40°C to +125°C supports diverse industrial settings. Compact 3100 Series design optimizes space in installations.

RoHS compliant for environmental safety and regulatory conformity.

This Pressure Sensor is widely used in industrial machines and instruments, measuring and testing instruments in sectors such as hydraulic equipment, fluid power systems, HVAC control, laboratory testing, and automation systems.

EnvMart offers this product with comprehensive technical details that facilitate effective purchase decisions and integration into industrial setups. Browse more sensors and pressure transmitters to find solutions tailored to your operational needs.
