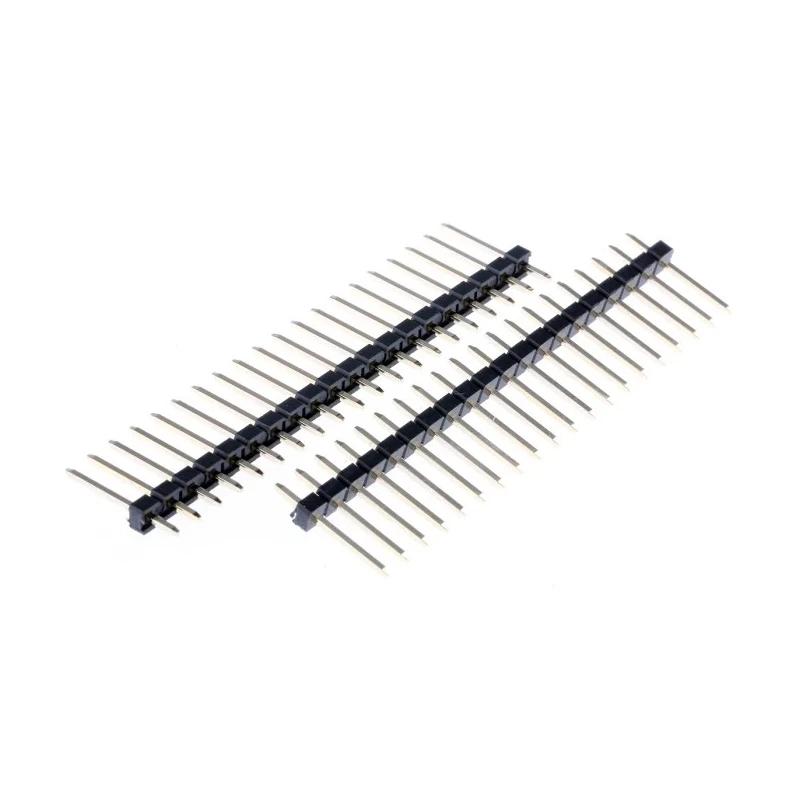

ASSMANN WSW AW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AW 108/20-T

The ASSMANN WSW AW 108/20-T Straight Through Hole Pin Header offers a reliable connection solution for electronic assemblies requiring 20 contacts with a standard 2.54 mm pitch and a single-row configuration. Crafted with a polybutylene terephthalate housing, this unshrouded male pin header provides excellent insulation and mechanical strength, while the gold-plated brass contacts enhance signal integrity and corrosion resistance.

Designed for through hole mounting, it ensures a robust mechanical and electrical interface with printed circuit boards. Its current rating of 1.5 A and voltage rating of 250 V make it suitable for moderate power applications in electronic equipment.

The pin header can operate reliably in harsh environments with temperature tolerances from -40°C to 105°C, making it ideal for industrial, commercial, and laboratory electronics. Its straight orientation facilitates straightforward board-to-board connections, often employed in control systems, communication devices, and instrumentation.

The connector's tail pin length of 3 mm and mating pin length of 7.9 mm are engineered to provide secure solder joints and reliable mechanical stability during machine assembly processes.

Features a 2.54 mm pitch suitable for standard PCB layouts. Designed with 20 male brass contacts plated in gold for enhanced conductivity. Constructed from durable polybutylene terephthalate housing ensuring thermal and mechanical stability.

Supports a current rating of 1.5 A and voltage up to 250 V. Mount type is through hole for secure PCB mounting. Operating temperature ranges from -40°C to 105°C, suitable for diverse environments. Unshrouded, straight orientation for easy mating and assembly.

Tail pin length is 3 mm; mating pin length is 7.9 mm, ensuring proper connector fit. Standards approvals are not applicable for this model. Manufactured in China to meet international quality standards.
