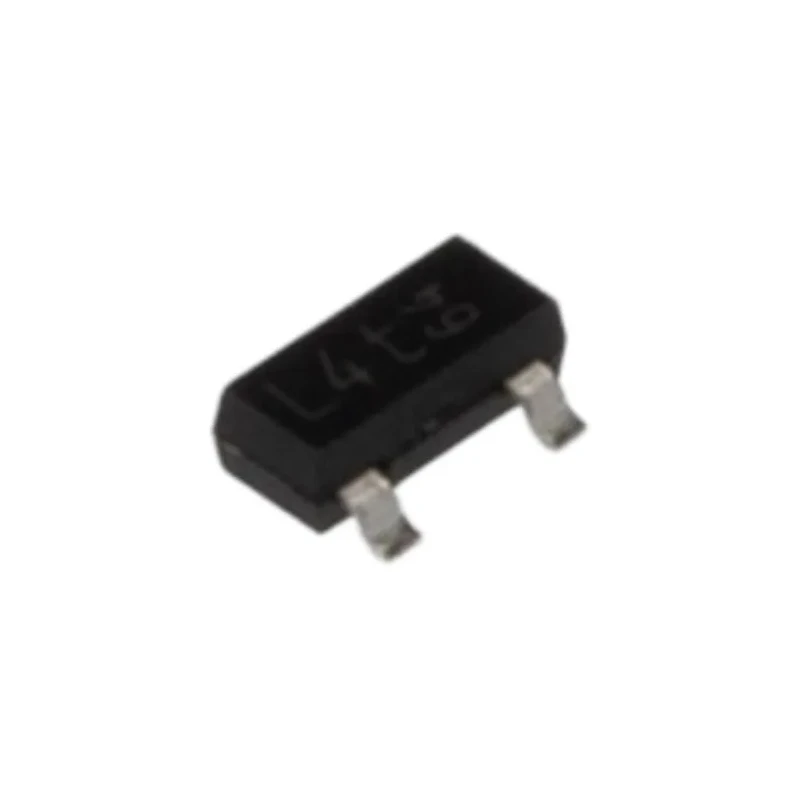

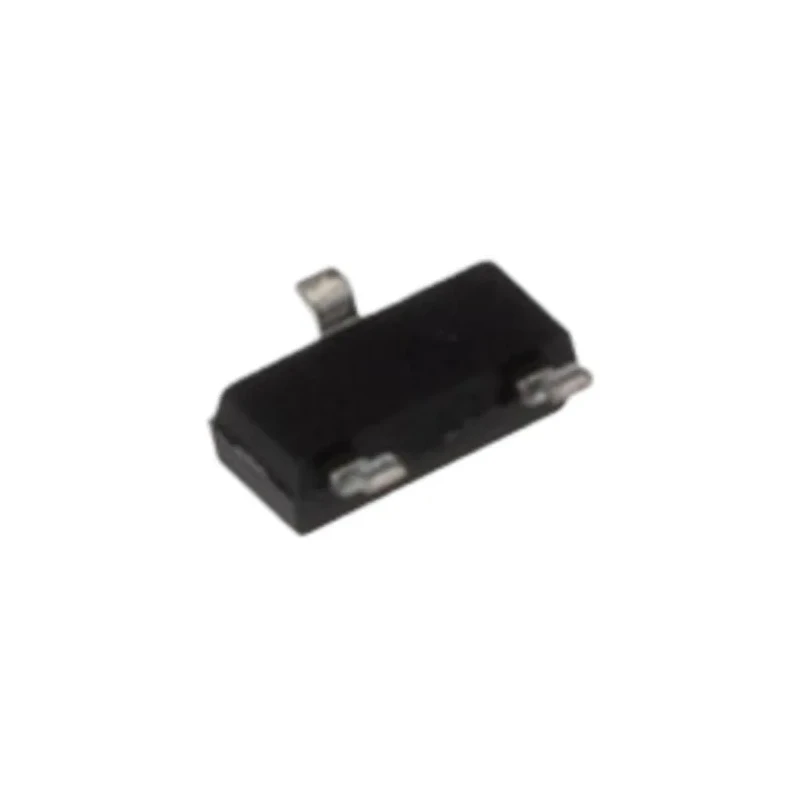

Nexperia Schottky Diode 30 V 200 mA 3-Pin SOT-23 BAT54,215

Nexperia BAT54,215 Schottky Diode 3-Pin SOT-23 is a high-efficiency semiconductor component designed for applications requiring low forward voltage and fast switching.

This surface mount diode supports a maximum continuous forward current of 200 mA and a peak reverse voltage of 30 V, making it ideal for power-sensitive and compact electronic circuits.

The diode's low forward voltage drop of 800 mV minimizes power loss, while its fast reverse recovery time of 5 ns allows for high-frequency switching performance. With a compact 3 mm length, 1.4 mm width, and 1 mm height, the SOT-23 package facilitates space-saving designs on printed circuit boards.

The device operates reliably across a broad temperature range of -65°C to 125°C and is compliant with the automotive standard AEC-Q101, demonstrating its robustness in harsh environments.

Additional features include low leakage current and negligible switching losses, contributing to improved energy efficiency. Surface mount package SOT-23 for compact PCB designs. Maximum continuous forward current of 200 mA ensuring reliable operation.

Peak reverse repetitive voltage rating of 30 V suitable for low-voltage applications. Low forward voltage drop of 800 mV for energy-efficient performance. Fast peak reverse recovery time of 5 ns for high-speed switching applications.

Wide operating temperature range from -65°C up to 125°C ensures durability. Ultra-small and low-profile housing supports high-density assembly. Automotive standard AEC-Q101 qualification guarantees quality and reliability.

Low leakage current and negligible switching power loss enhance efficiency. This diode is widely used in industrial, automotive, consumer electronics, and power management applications where efficient rectification and fast switching speed are critical.
