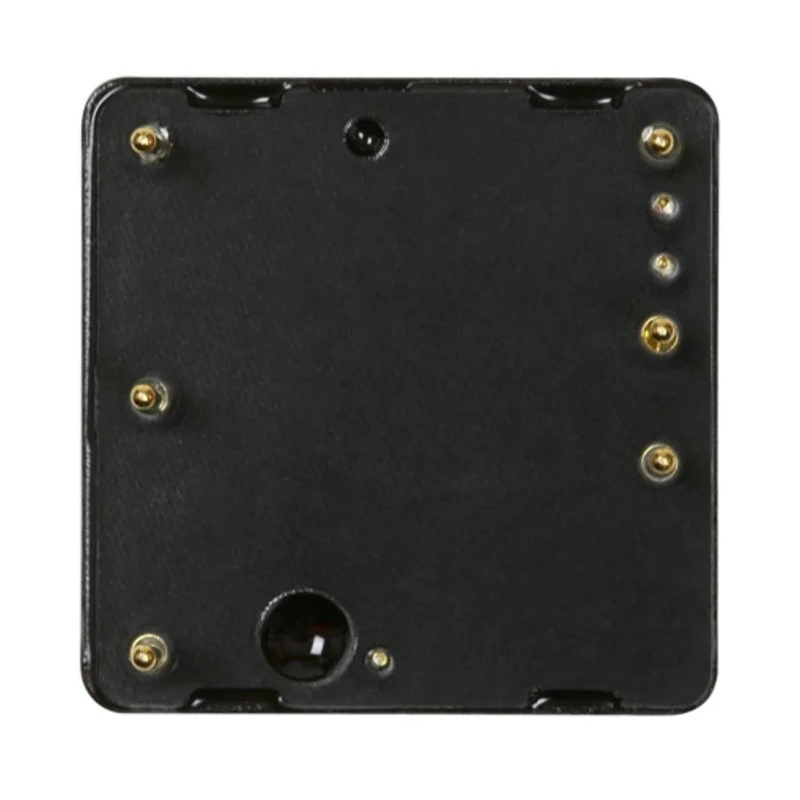

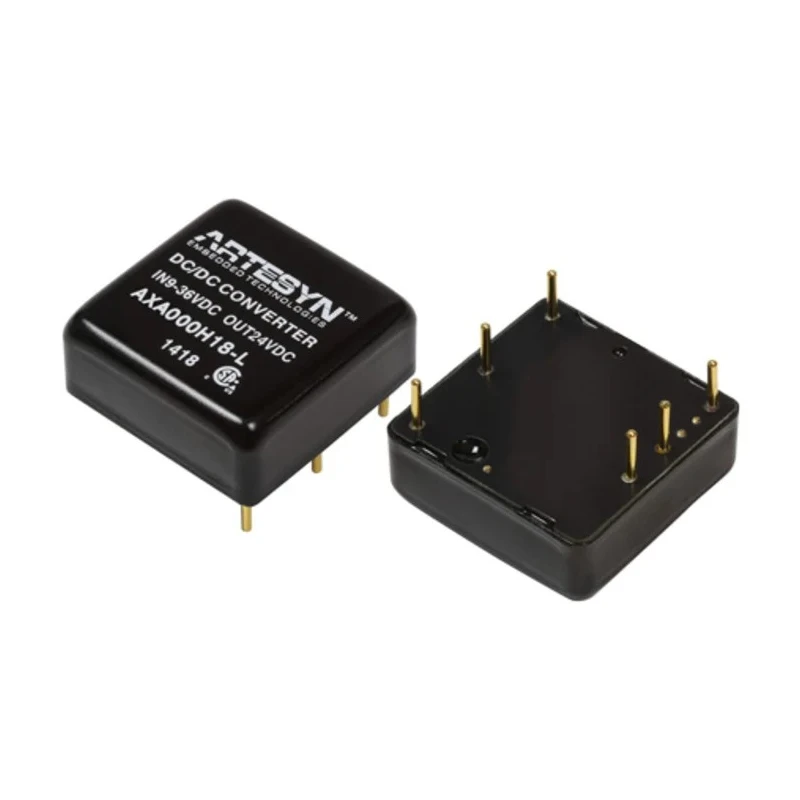

Artesyn / Advanced Energy Isolated DC/DC Converter 24V DC Output 410mA 36V DC Max Input 9V Min Input 10W DIP AXA000H18-L

Free Delivery in India | Lowest Global Shipping Charges

Artesyn / Advanced Energy Isolated DC/DC Converter 24V DC Output 410mA 36V DC Max Input 9V Min Input 10W DIP AXA000H18-L

Name: Artesyn / Advanced Energy Isolated DC/DC Converter 24V DC Output 410mA 36V DC Max Input 9V Min Input 10W DIP AXA000H18-L
Brand: Artesyn / Advanced Energy
SKU: 185149
Price: 63.46 USD
Availability: InStock



Category DC/DC Converter Brand Artesyn / Advanced Energy Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters Artesyn / Advanced Energy AXA DC/DC Converter, 24V
Brand	Artesyn / Advanced Energy
Efficiency	86%
Length	25.4mm
Model	AXA000H18-L
Depth	10.16mm
Width	25.4mm
Mount Type	Through Hole
Series	AXA
Maximum Operating Temperature	80°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	350000h
Number of outputs	1
Maximum Output Power	10W
Maximum Input Voltage	36V dc
Minimum Input Voltage	9V
Output Voltage 1	24V dc
Output Current 1	410mA
Isolation Voltage	1.5kV dc

Key Features

This isolated DC/DC converter supports a wide input voltage range from 9V to 36V DC.
Maximum operating temperature is 80°C, suitable for demanding industrial environments.
Features a metal case with isolated baseplate ensuring reliable insulation and durability.
Efficiency reaches up to 86%, enhancing energy savings and minimizing heat dissipation.
Compact dimensions of 25.4mm x 25.4mm x 10.16mm make it ideal for space-constrained applications.
Single output design with remote on/off functionality for enhanced application control.
Qualified for lead-free reflow solder process complying with IPC/JEDEC J-STD-020D standard.
Offers an MTBF of 350,000 hours, ensuring long operational life and reliability.

Product Description

Artesyn / Advanced Energy AXA000H18-L is an isolated DC/DC converter designed for precision power supply needs in electronic equipment. It provides a stable 24V DC output at 410mA with a maximum power of 10W. The converter operates efficiently within a wide input voltage range of 9V to 36V DC, making it adaptable for various power sources.

Encased in a sturdy metal DIP package with through-hole mount type, this device is built for industrial, laboratory, and electronic manufacturing applications where reliable voltage conversion and isolation are essential. The isolated baseplate ensures minimal interference and robust insulation for sensitive circuits.

The unit operates within a temperature range of -40°C to 80°C, suitable for challenging environmental conditions. High efficiency of 86% helps reduce power losses and heat generation. It boasts a long mean time between failure (MTBF) of 350,000 hours, signifying dependable performance over extended operation periods.

The AXA series supports remote on/off control, enabling better customization in system integration. Its input filter meets stringent electromagnetic compatibility requirements, complying with EN55022 Class A and FCC Level A standards, making it suitable for use in critical electronic environments.

This DC/DC converter offers a compact footprint of 25.4mm width, 25.4mm length, and 10.16mm depth for space-efficient board layouts. Single output design simplifies integration into power supply chains requiring isolated 24V outputs.

Lead-free solder compatibility according to IPC/JEDEC J-STD-020D supports environmentally responsible manufacturing. Metal cased package provides physical durability and effective thermal management. The device's specifications ensure utility across industrial automation, telecommunications, instrumentation, and embedded power systems.

Choose the Artesyn / Advanced Energy AXA000H18-L for applications demanding compact, reliable, and efficient DC/DC voltage conversion delivered in a through-hole DIP package. Explore more DC/DC Converters and power solutions in the Electronics & Electricals category at EnvMart.
