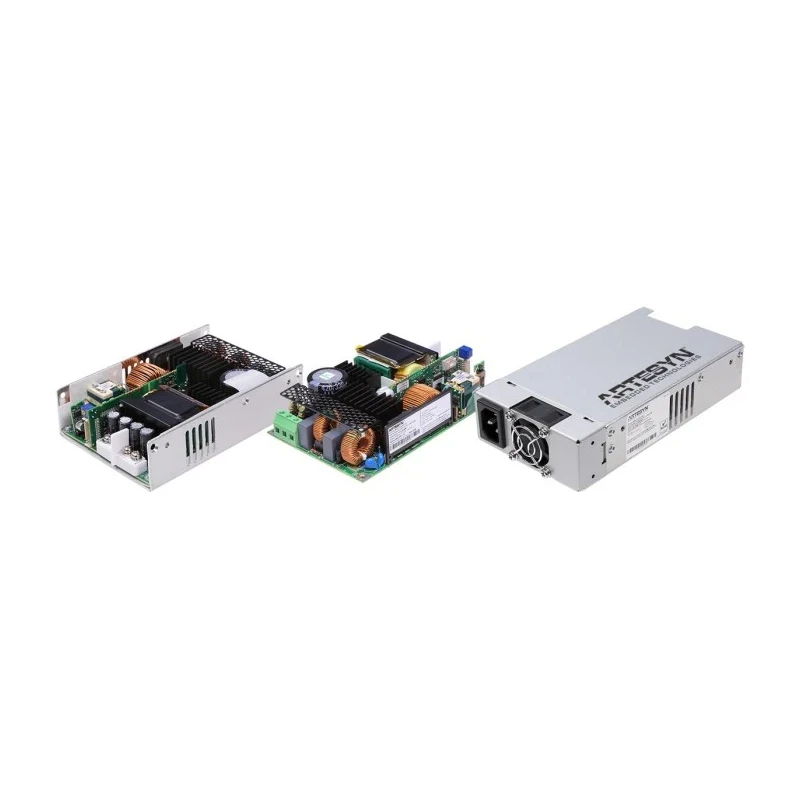

Artesyn / Advanced Energy 24V DC 400W Chassis Mount Switching Power Supply CNS655-MU
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Artesyn / Advanced Energy |
| Power | 400W |
| Efficiency | 93% |
| Length | 154.3mm |
| Model | CNS655-MU |
| Depth | 39.2mm |
| Gross Weight | 800g |
| Width | 101.6mm |
| Mount Type | Chassis |
| Series | CNS655-MU |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Standards/Approvals | CE, UL/CSA 62368-1 / 60601-1, CCC, EN |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 27.1A |
| Minimum Input Voltage | 90V ac |
Key Features
- Supports universal input voltage range from 90V AC to 264V AC.
- Delivers single output of 24V DC with 27.1A output current.
- Designed for forced air and natural convection cooling with less than 1U height.
- Equipped with active power factor correction and built-in Class B EMI filter.
- Medical Type BF ready and compliant with CE, UL/CSA 62368-1, 60601-1, CCC, and EN standards.
- Operating temperature range from -20°C to 80°C for versatile environments.
- Compact open-frame 'U-Channel' construction measuring 154.3mm x 101.6mm x 39.2mm.
- Provides 12V fan output and 5V standby output for additional functions.
Product Description
Artesyn / Advanced Energy CNS655-MU is a 24V DC, 400W switching power supply designed for high reliability in industrial and medical fields. This chassis mount power supply offers a wide input voltage range from 90V to 264V AC, accommodating global power requirements.
The unit features a single output with 27.1A current capacity, suitable for demanding applications requiring stable power delivery. Its compact 'U-Channel' open frame construction measures 154.3mm in length, 101.6mm in width, and 39.2mm in depth, making it suitable for integration in limited space environments.
Cooling design supports forced air and natural convection, maintaining operational stability without excessive height, under 1U. The power supply includes active power factor correction to reduce energy losses and a built-in Class B EMI filter for electromagnetic compliance.
Certified with major safety standards including CE, UL/CSA 62368-1, 60601-1, CCC, and EN, it meets rigorous requirements for industrial and medical applications, including Medical Type BF equipment readiness.
Additional features include a 12V fan output and 5V standby supply to support peripheral components. Operating temperature spans from -20°C to 80°C, ensuring robust performance in varied environments. Efficiency rating of 93% supports energy conservation and heat reduction.
Supports universal AC input from 90V to 264V. Single 24V DC output with 27.1A current rating. Compact chassis mount design with dimensions 154.3 x 101.6 x 39.2 mm. Medical Type BF ready for safety compliance in medical equipment.
Includes active power factor correction for improved efficiency. Built-in Class B EMI filter minimizes electromagnetic interference. Operating temperature range from -20°C to 80°C. High efficiency of 93% reduces energy consumption.
12V fan output and 5V standby output for additional operational needs. Meets CE, UL/CSA, CCC, and EN standards.
This power supply is ideal for industrial machinery, medical devices, automation equipment, and other electronic systems requiring reliable DC power conversion with safety certifications. By choosing the CNS655-MU, users benefit from a durable, efficient, and certified power solution from Artesyn / Advanced Energy. Browse more Switching Power Supplies and advanced power solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 400W.
The dimensions of the unit are 154.3mm in length, 101.6mm in width, and 39.2mm in depth.
The operating temperature range for this model is from -20°C to 80°C.
Yes, it includes a 12V fan output and a 5V standby output for additional functions.
It is designed for forced air and natural convection cooling.
It is certified with CE, UL/CSA 62368-1, 60601-1, CCC, and EN standards.
The efficiency rating of this model is 93%.
The gross weight of this unit is 800g.
Yes, it is Medical Type BF ready and compliant with relevant medical safety standards.
This model features a chassis mount design.
