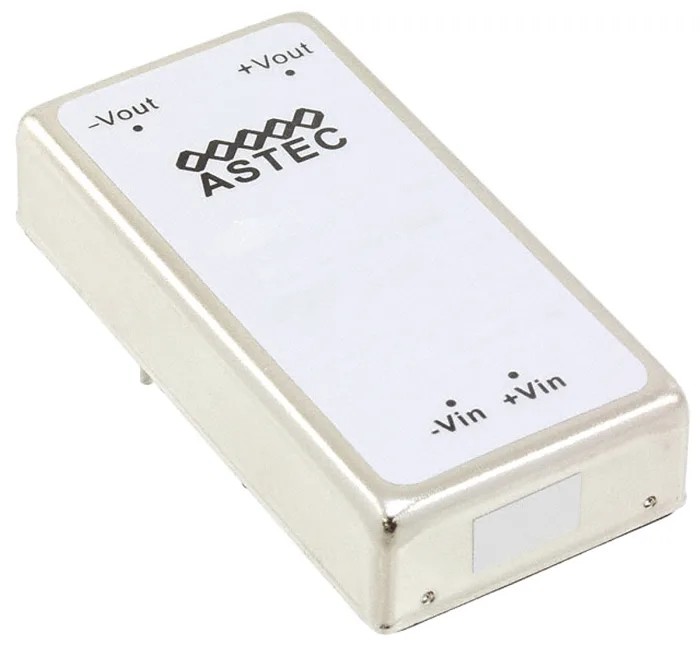

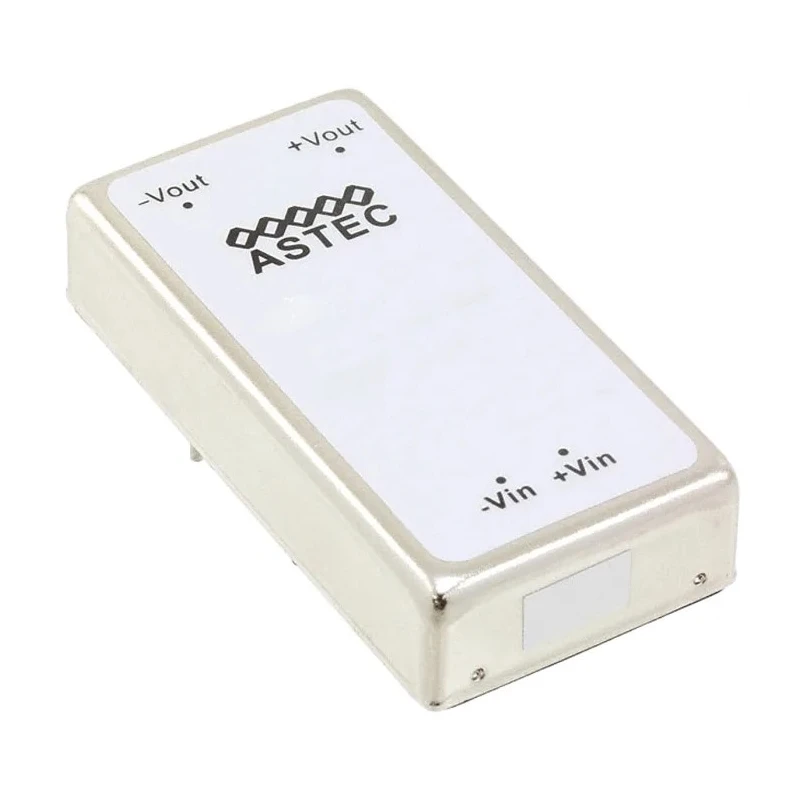

Artesyn / Advanced Energy AEE DC/DC Converter 3.3V DC 4A Output 36V DC Input 13.2W Power Through Hole Mount AEE04F18-LS

Artesyn / Advanced Energy AEE04F18-LS DC/DC Converter is designed for electronic, industrial, and power supply applications requiring stable and isolated voltage conversion. Delivering 3.3V DC output at 4A current, it supports a wide DC input range from 9V to 36V, accommodating diverse power sources.

This through-hole mounted converter features a compact 1 x 2 inch package with a length of 50.8mm and depth of 11.3mm, fitting manufacturing boards and power systems where space-saving is crucial. The device offers a maximum output power of 13.2W, suitable for medium-power scenarios such as instrumentation, control circuits, and embedded systems.

Its innovative design ensures 1.5kV DC isolation between input and output, enhancing operational safety in industrial environments. With an efficiency level of 84%, it efficiently converts energy with minimal thermal losses. The product withstands maximum operating temperatures up to 71°C, enabling use in demanding thermal conditions.

Built-in EMI filtering meets stringent EN 55022 Class A without external components, allowing compliance with electromagnetic compatibility regulations. Safety features include under voltage lockout, overcurrent protection, and short-circuit auto-restart, protecting circuits during fault conditions.

The shielded metal case with insulated baseplate offers mechanical protection and EMI shielding, making the converter suitable for industrial manufacturing, telecommunications, medical equipment, and laboratory instruments.

This converter features an ultra-wide 4:1 input voltage range enabling flexible usage. It provides regulated, isolated output with industry-standard 1.5kV DC isolation for safety. The unit supports a maximum operating temperature of 71°C ensuring reliable performance.

High efficiency of 84% reduces power loss and heat generation. Compact through-hole mounting package size of 1 x 2 inch facilitates integration in circuit boards. Built-in filters meet EN 55022, Class A emission standards without additional components.

Protection features include under voltage lockout, over current, and short circuit auto-restart. The sturdy metal case with insulated baseplate provides operational durability and shielding.

This DC/DC converter is highly suited for industrial, laboratory, and electronic component manufacturing applications that demand reliable and efficient voltage regulation. EnvMart offers a comprehensive category of converters including DC/DC Converters for diverse power management needs.
