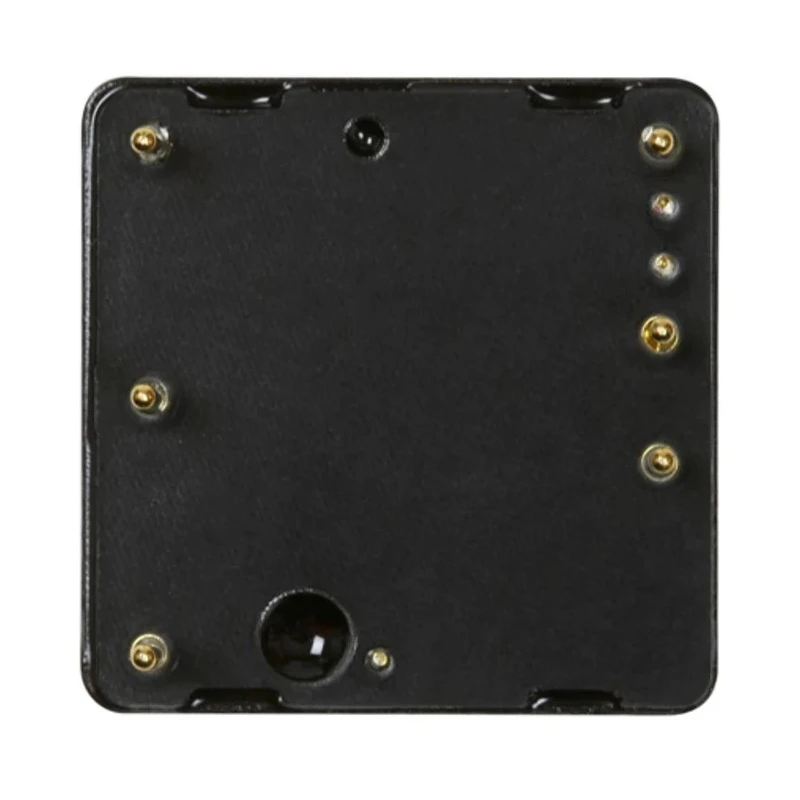

Artesyn / Advanced Energy Isolated DC/DC Converter 5V DC, 2A Output, 36V DC Max Input, 10W Power, Through Hole AXA02A18-L

Artesyn / Advanced Energy AXA02A18-L is an isolated DC/DC converter designed for efficient power conversion applications. It provides a regulated 5V DC output current of 2A with a maximum output power of 10W. The device features a through hole mount with compact dimensions of 25.4mm length, 25.4mm width, and 10.16mm depth, making it suitable for PCB installations requiring small footprints.

This converter supports a wide input voltage range from 9V minimum up to 36V maximum DC, enabling robust operation in varied power supply environments. The 4:1 input voltage ratio adds flexibility for numerous industrial and electronic power systems.

With an efficiency rating of 84%, the AXA02A18-L minimizes power losses and heat generation, which contributes to energy savings and reliability. Its isolated output with 1.5kV DC isolation voltage provides electrical safety and noise reduction in sensitive circuits. The device includes remote on/off functionality for system control customization, enhancing integration into complex assemblies.

The operating temperature range spans from -40°C to 80°C, allowing the converter to function reliably across harsh environmental conditions commonly found in industrial, laboratory, and manufacturing settings.

The long Mean Time Between Failures (MTBF) of 849,907 hours attests to its durability and suitability for critical applications such as power supplies in computing, telecommunications, and instrumentation.

Ultra-compact DIP package with reliable through hole mounting. Wide 4:1 input voltage range from 9V to 36V DC. High efficiency at 84% reduces operating costs. Isolated output voltage ensures circuit safety. Remote on/off support for enhanced control capabilities.

Robust operation from -40°C to 80°C ambient temperature. Long-lasting reliability with MTBF over 849,000 hours.

This Artesyn / Advanced Energy DC/DC converter is ideal for use in industrial power systems, electronic instrumentation, telecommunications, laboratory equipment, and other applications demanding compact, reliable voltage conversion. Explore our electronics & electricals category for more DC/DC Converters and related power supply solutions.
