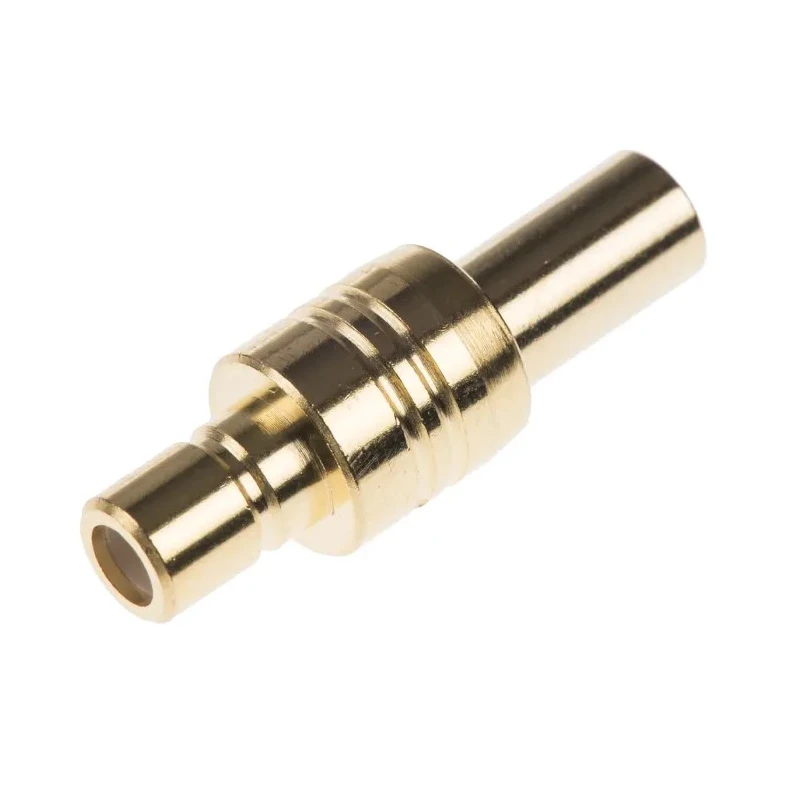

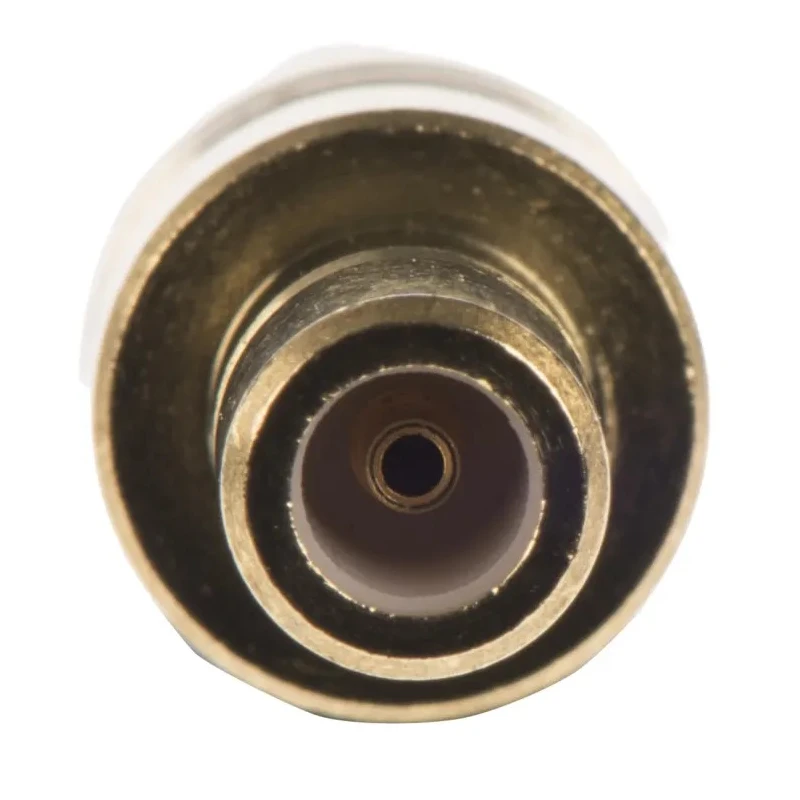

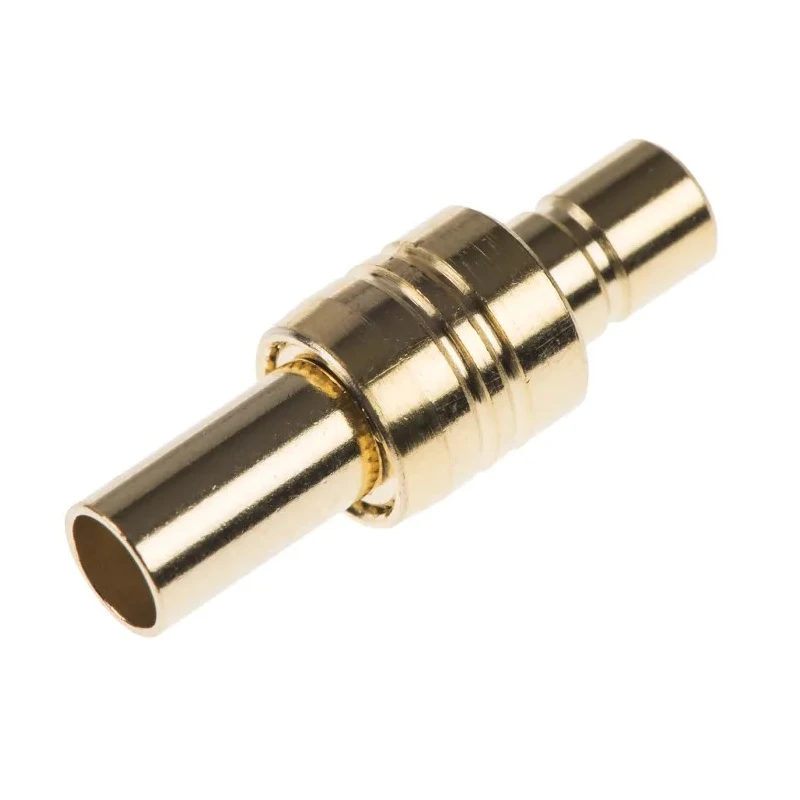

Radiall SMB Series Coaxial Connector Cable Female SMB 50 Ω Straight Body Crimp 1-1337477-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG316/U, RG188A/U, RG174A/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Subminiature SMB design ensures space-saving and lightweight performance.
- Operates effectively from DC to 4 GHz with excellent electrical characteristics.
- Gold plating on body and contacts enhances corrosion resistance and conductivity.
- Snap-on coupling enables quick connection and disconnection for efficient field installation.
- Compatible with RG316/U, RG188A/U, and RG174A/U cable types.
- Operating temperature ranges from -65°C to 165°C for versatile environmental usage.
- Crimp termination reduces assembly time and lowers termination costs.
- Ideal for applications such as GPS, antennas, telephony, base stations, radio boards, and CATV.
Product Description
TE Connectivity 1-1337477-0 SMB Series Coaxial Connector Cable is a high-quality female SMB connector cable assembly designed for reliable signal transmission with a constant 50 Ω impedance and straight body crimp termination. Operating from DC to 4 GHz frequencies, it supports various RF applications demanding precision and durability.
This subminiature connector provides a compact, lightweight solution with gold-plated contact surfaces and body plating that ensure excellent electrical conductivity and resistance to corrosion. The snap-on coupling design facilitates quick connect and disconnect capabilities, making installation and maintenance efficient in diverse field environments.
Supporting RG316/U, RG188A/U, and RG174A/U cable types, it withstands operating temperatures from -65°C to 165°C, giving it suitability in harsh industrial, telecommunications, and laboratory applications.
This connector assembly features crimp terminations that enable fast and cost-effective cable assembly while preserving signal integrity. Applications include use in GPS modules, antennas, telephony equipment, base stations, radio boards, CATV systems, and PC/LAN environments requiring robust RF connectivity.
Subminiature SMB space-saving design. Gold plating ensures excellent conductivity and corrosion resistance. Snap-on coupling for rapid connect/disconnect. Crimp termination reduces assembly cost and time. Compatible with multiple coaxial cable types (RG316/U, RG188A/U, RG174A/U).
Wide operating temperature range from -65°C to 165°C. Supports frequencies up to 4 GHz with low VSWR. Ideal for telecommunications, industrial, and laboratory RF applications. Browse more connectors in the Coaxial Connector category on EnvMart for compatible accessories and replacement parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively from DC to 4 GHz, making it suitable for various RF applications.
It is compatible with RG316/U, RG188A/U, and RG174A/U cable types, allowing for versatile connectivity options.
The maximum operating temperature for this unit is 165°C, enabling its use in high-temperature environments.
This connector features crimp termination, which helps reduce assembly time and costs.
The connector body and contacts are gold-plated brass, enhancing corrosion resistance and conductivity.
It has a constant impedance of 50 Ω, ensuring reliable signal transmission.
The snap-on coupling design allows for quick connection and disconnection, facilitating efficient field installation and maintenance.
This model has a straight orientation, which is typical for many coaxial applications.
The minimum operating temperature is -65°C, allowing for use in extremely cold environments.
The body of this connector is also gold-plated, which contributes to its durability and performance.
This connector is ideal for applications such as GPS, antennas, telephony, base stations, and CATV systems.
The country of origin for this model is India, indicating its manufacturing location.
