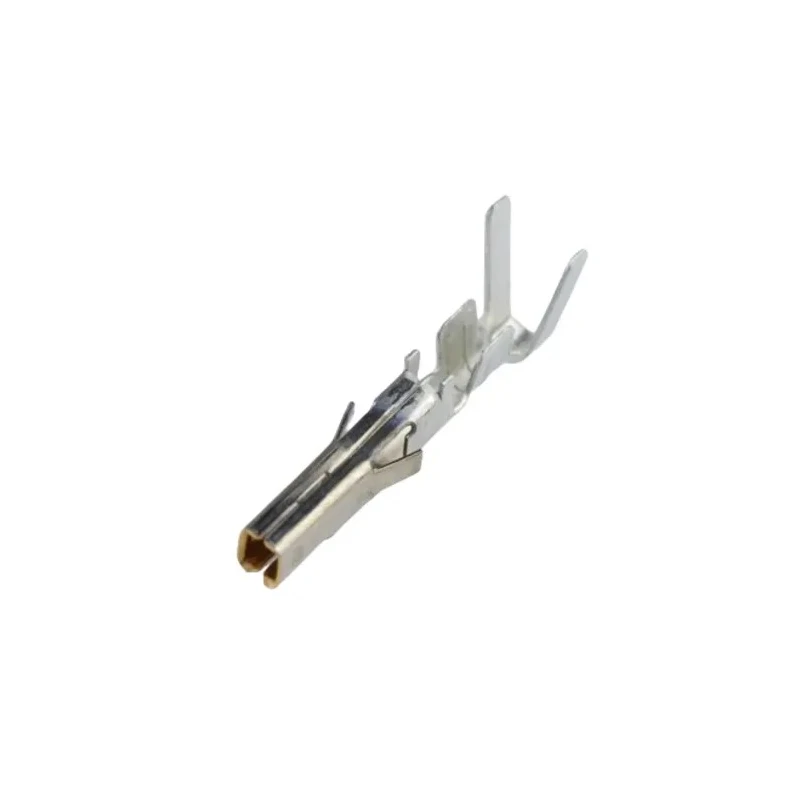

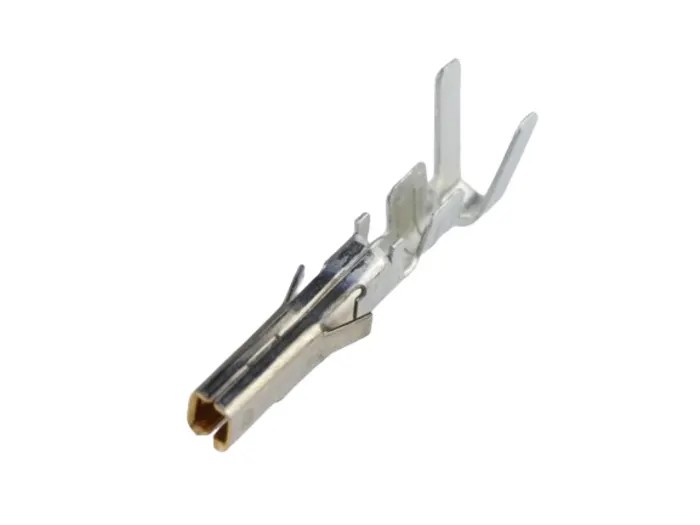

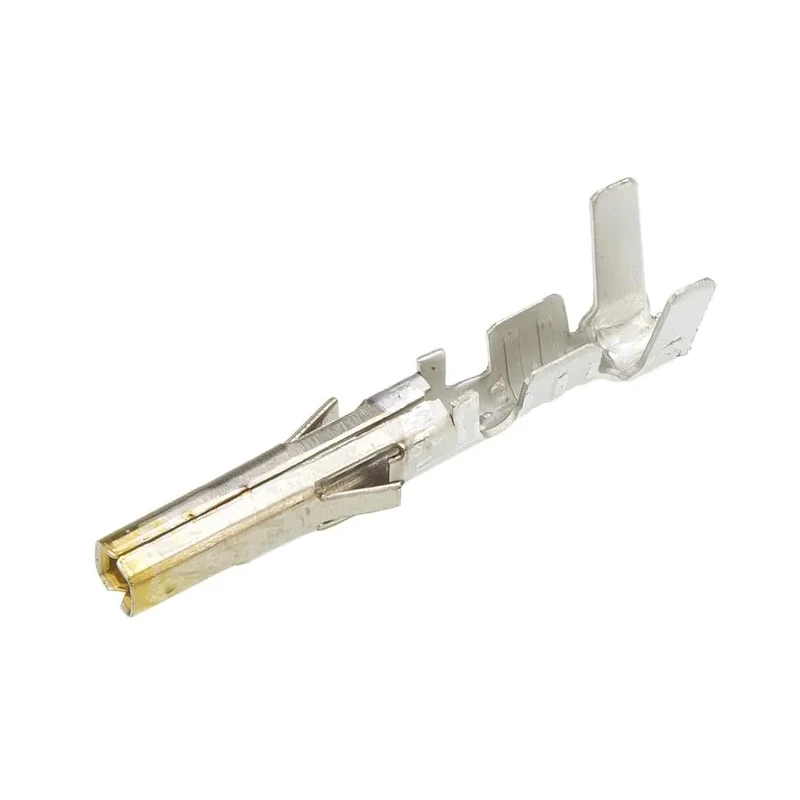

Molex 5556 Series Female Crimp Terminal, 9A Current, Gold Plated Phosphor Bronze Contact, 24 AWG Min, 18 AWG Max 39-00-0181
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with wire sizes from 24 AWG minimum to 18 AWG maximum for versatile applications.
- Gold plating enhances conductivity and corrosion resistance for reliable connections.
- Crimp termination method ensures secure and durable wire attachment.
- Rated for a maximum operating temperature of 105°C and minimum of -40°C, suitable for harsh environments.
- Specifically made to fit Mini-Fit TPA and Mini-Fit BMI connector housings.
- Maximum contact resistance of 10 milliohms ensures low electrical loss.
- Female gender design tailored for specific connector housings.
- Manufactured in the United States meeting quality standards for electronic components.
Product Description
Molex 39-00-0181 female crimp terminal from the 5556 series is engineered for robust and efficient electrical connectivity, supporting up to 9 amperes of current. Its gold plated phosphor bronze contacts provide superb conductivity and durability, ensuring minimal contact resistance of just 10 milliohms.
Designed for crimp termination, this terminal securely attaches to wire sizes ranging from 24 AWG (0.2mm²) minimum to 18 AWG (0.8mm²) maximum, accommodating a wide range of wiring requirements typically found in industrial and electronic assembly.
Operating reliably in a temperature range of -40°C to +105°C, it is well suited for various industrial, manufacturing, and electronic applications requiring stable electrical contacts in demanding environments.
The female gender terminal is specifically compatible with Mini-Fit Jr connector housings, including Mini-Fit TPA and Mini-Fit BMI types, widely used in power and signal connection assemblies.
Manufactured in the United States, this component upholds strict quality standards, making it ideal for laboratory, industrial automation, and electronic manufacturing sectors. Its gold plating helps resist corrosion, enhancing long-term reliability and performance.
Compatible with wire sizes from 24 AWG to 18 AWG for flexible wiring options. Gold plated phosphor bronze contact material for optimal electrical conductivity. Crimp termination for lasting and secure connection integrity.
Rated for operating temperatures between -40°C and 105°C for durability. Designed for Mini-Fit Jr connector housings, including TPA and BMI variants. Maximum contact resistance rated at 10 milliohms to minimize electrical losses.
Female gender terminal type for use in specified connector systems. Manufactured in the United States ensuring component reliability and quality.
This Molex crimp terminal is a reliable solution for electronics manufacturing, industrial automation, and power distribution applications. Explore more high-quality electronic components and Crimp Contacts in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 9 amperes.
It is compatible with wire sizes ranging from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum.
The contact material is phosphor bronze, which is gold plated to enhance conductivity and corrosion resistance.
The maximum contact resistance is rated at 10 milliohms, ensuring low electrical loss.
It operates reliably within a temperature range of -40°C to +105°C.
This terminal is specifically designed for Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Jr.
It uses a crimp termination method for secure and durable wire attachment.
This crimp terminal is manufactured in the United States, adhering to quality standards for electronic components.
The specific dimensions and weight of this terminal are not provided in the available data.
It is suitable for various industrial, manufacturing, and electronic applications requiring stable electrical connections.
There are no specific certifications mentioned for this crimp terminal in the provided data.
The gold plating enhances conductivity and corrosion resistance, contributing to reliable connections over time.
