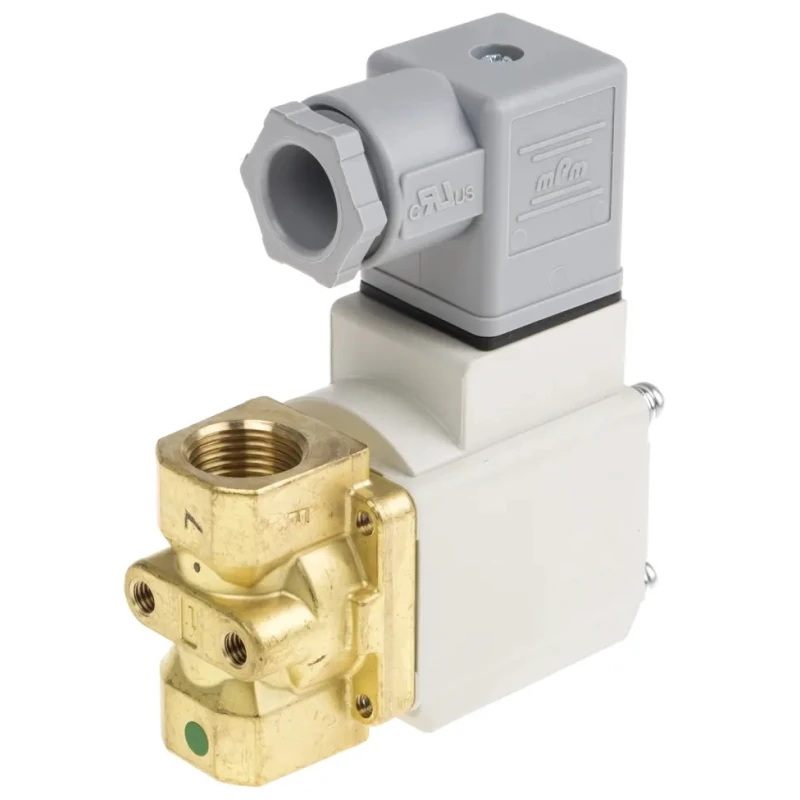

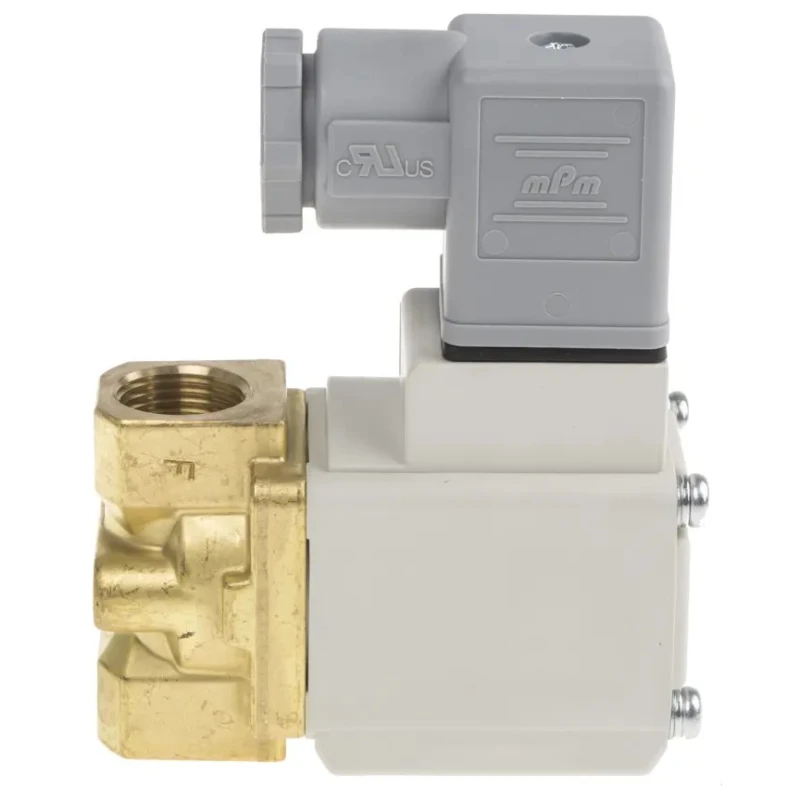

SMC Pneumatic Solenoid Valve 2/2 NC Solenoid/Spring G VX Series, Brass Body, 230V AC, 1/4 in Port Size VX224ELAXB

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 2/2 NC Solenoid/Spring G VX Series, Brass Body, 230V AC, 1/4 in Port Size VX224ELAXB



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	230V ac
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	1 Mpa
Height	66mm
Length	89mm
Model	VX224ELAXB
Width	35mm
Mount Type	Bracket
Series	VX
Number Of Ports	2
Maximum Operating Temperature	60°C
Port Type	Threaded
Number of Positions	2
Port Size	1/4 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-20°C
Actuation Type	Solenoid/Spring
Maximum Flow Rate	239.4L/min
Standards/Approvals	CE, cULus, RoHS
Connection Thread Standard	G
Valve Function	2/2 NC
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female

Key Features

Features a brass body with nitrile rubber (NBR) seals for enhanced durability.
Threaded 1/4 inch port size with female port gender for secure mechanical connections.
Operates up to a maximum pressure of 1 MPa with a maximum flow rate of 239.4 L/min.
Compact dimensions of 89mm length, 66mm height, and 35mm width allow easy installation in tight spaces.
Designed for quiet and efficient valve function with a direct operated poppet type construction.

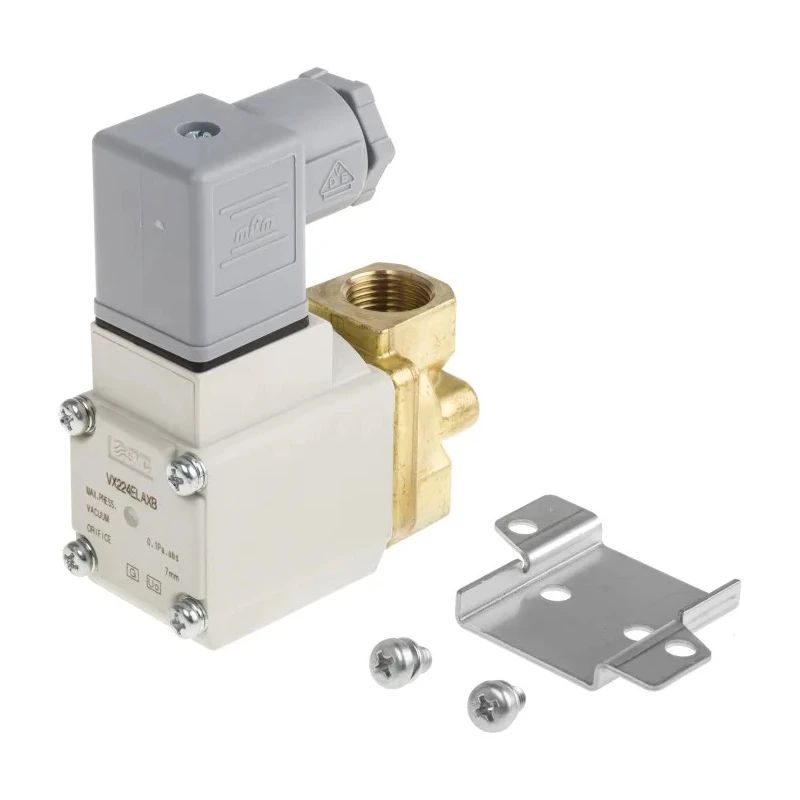

Equipped with a DIN electrical connector and bracket mount for convenience.
Suitable for various industrial uses including pneumatic, water, vacuum, and oil media control.
Complies with CE, cULus, and RoHS standards ensuring safety and environmental compliance.

Product Description

SMC VX224ELAXB Pneumatic Solenoid Valve from the VX Series is a high-performance 2/2 NC solenoid and spring valve operating at 230V AC. Engineered for industrial fluid power, it features a robust brass body and nitrile rubber seals for excellent durability and chemical resistance. The valve is designed for use with air, medium vacuum, water, or oil, making it versatile for pneumatic and hydraulic applications.

With a threaded 1/4 inch port size and female ports, this valve supports operating pressures up to 1 MPa and pilot pressures of 1 MPa. It delivers a maximum flow rate of 239.4 liters per minute, 20% greater than conventional 2-port solenoid valves. Its compact size of 89mm length, 66mm height, and 35mm width allows it to fit into confined industrial layouts efficiently. It incorporates a direct operated poppet type valve function, ensuring quiet and efficient operation with diminished metal noise due to a rubber bumper design.

This valve includes a DIN electrical connection type and bracket mount for secure fitting and ease of installation. The electrical solenoid consumes 9.5 VA, and the valve can operate within a temperature range from -20°C to 60°C. It has two positions and ports, making it suitable for precise fluid control in pneumatic and hydraulic systems. The unit complies with CE, cULus, and RoHS standards, confirming its suitability for industrial, manufacturing, HVAC, and laboratory automation applications.

Manufactured in Japan, the VX224ELAXB valve is optimized for reliable long-term industrial use. Its lightweight design is 30% lighter and 10% smaller than previous versions, adding to installation and operational convenience. This solenoid valve offers excellent resistance to dust and water, classified as dust-tight and water-jet proof.

Brass body material with nitrile rubber seals. 2/2 normally closed valve function. 230V AC voltage with 9.5 VA solenoid power consumption. Operating temperatures from -20°C up to 60°C. Maximum operating pressure of 1 MPa for broad industrial applications.

Compact dimensions and quiet operation with reduced metal noise. Standards compliance including CE, cULus, and RoHS. Ideal for pneumatic and hydraulic fluid control in industrial settings.

This SMC Pneumatic Solenoid Valve is part of a versatile VX series widely used for fluid power control in industrial, laboratory, construction, HVAC, manufacturing, and water treatment sectors. Browse more pneumatic valves and solenoid valves on EnvMart for comprehensive automation system solutions.
