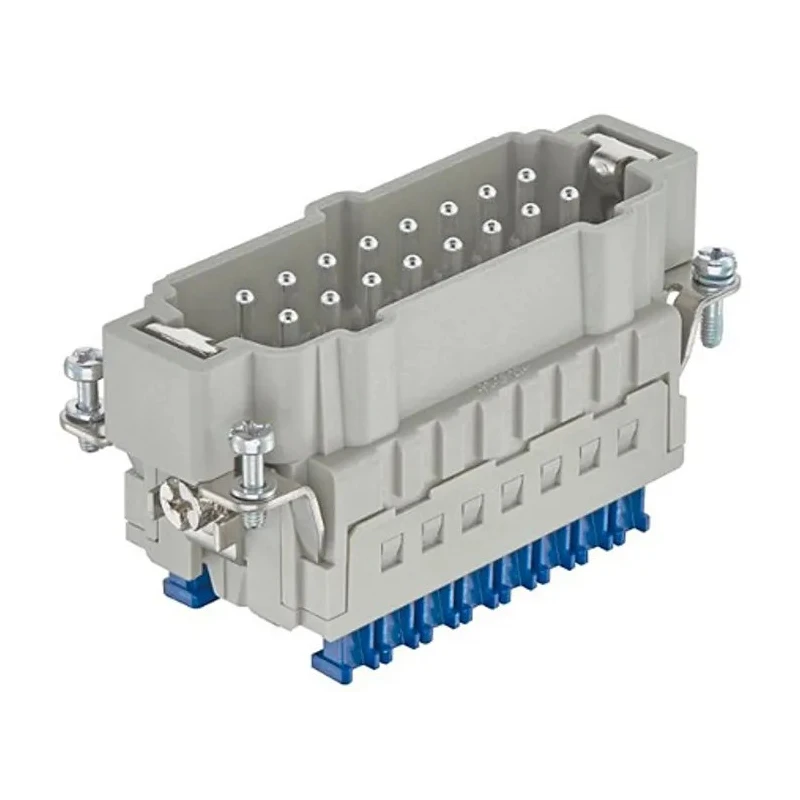

Harting Power Connector Insert, 16A Current Rating, Han ES Press Series Male, 32 Contacts, 500V, Panel Mount 09330162688
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Harting |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES Press |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 32 |
| Contact Plating | Silver |
| Number of Contacts | 32 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Designed for heavy duty power connector systems enhancing durability.
- Features silver-plated copper alloy contacts for excellent conductivity.
- Accepts wire size range from 0.14 mm² to 2.5 mm² for versatility.
- Includes cage clamp terminations enabling quick and secure wiring.
- Supports optional ES Press plug-in jumpers for motor connection configurations.
- Vibration proof design ensures robustness in industrial environments.
- Compatible with multiple hood and housing types including Han B, M, EMC, Easy Hood, and HPR.
Product Description
Harting 09330162688 Power Connector Insert of Han ES Press Series is a high-performance, male connector insert rated at 16A current with 32 contacts and a 500V voltage rating, intended for panel mount use.
This connector insert features a robust cage clamp termination system that enables quick and tool-free wiring, significantly improving installation efficiency. The contacts are made from copper alloy plated with silver to provide excellent electrical conductivity and resistance to corrosion.
The design accommodates wire sizes from 0.14 mm² up to 2.5 mm², providing versatility for various heavy duty power connection needs. Its vibration-proof design ensures that connections remain secure even in demanding industrial environments.
The Han ES Press series supports optional plug-in jumpers, which facilitates the bridging of contacts to implement Star and Delta motor wiring configurations directly in the connector, making it suitable for industrial motor control panels.
Compatible with a range of Harting hoods and housings such as Han B, Han M, Han EMC, Han Easy Hood, and Han HPR, this connector insert offers multiple connection possibilities for different applications.
Reliable and durable for heavy duty industrial power connections. Cage clamp terminations simplify wiring without additional tools. Silver-plated copper alloy contacts for optimized electrical performance. Wide wire size acceptance from 0.14 mm² to 2.5 mm² enhances application flexibility.
Vibration-proof design to maintain integrity in harsh environments. Supports plug-in jumpers for Star and Delta motor connections. Extensive compatibility with multiple Harting hoods and housings.
This product is ideal for industrial, manufacturing, electrical distribution, and automation sectors where reliable heavy duty power connections are critical. The Harting Han ES Press connector insert meets rigorous quality standards and is manufactured in Germany.
Explore the wide range of Harting heavy duty power connectors and accessories at EnvMart for your industrial electrical connectivity needs.
Explore more products in our Heavy Duty Power Connector Insert category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert has a current rating of 16A.
It has a voltage rating of 500V.
This model accommodates wire sizes ranging from 0.14 mm² to 2.5 mm².
The connector insert features 32 contacts.
It utilizes a cage clamp termination system for quick and tool-free wiring.
Yes, it is compatible with multiple Harting hoods and housings including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR.
The connector insert has a straight orientation.
The contacts are made from a copper alloy and are silver-plated for enhanced conductivity.
It is designed for panel mount installation.
Yes, it supports optional plug-in jumpers for Star and Delta motor wiring configurations.
The connector insert is manufactured in Germany.
The thread size is M3 x 10.
