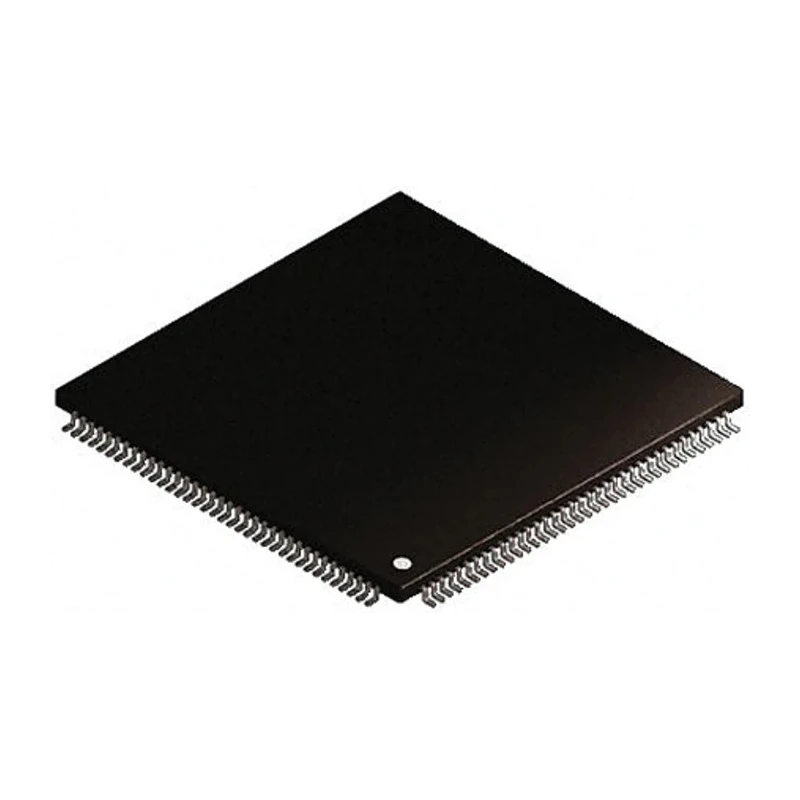

Infineon XE167FM72F80LRABKXUMA1 16 bit C166 XE166 Microcontroller 100 MHz 576kB FLASH 144-Pin LQFP

Free Delivery in India | Lowest Global Shipping Charges

Infineon XE167FM72F80LRABKXUMA1 16 bit C166 XE166 Microcontroller 100 MHz 576kB FLASH 144-Pin LQFP

Name: Infineon XE167FM72F80LRABKXUMA1 16 bit C166 XE166 Microcontroller 100 MHz 576kB FLASH 144-Pin LQFP
Brand: Infineon
SKU: 184356
Price: 16.3 USD
Availability: InStock



Category Microcontrollers Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.4mm
Length	20mm
Model	XE167FM72F80LRABKXUMA1
Width	20mm
Mount Type	Surface
Series	XE166
Maximum Operating Temperature	125°C
Package Type	LQFP
Minimum Operating Temperature	-40°C
Ram size	48kB
Interface Type	Serial
Pin Count	144
Maximum Supply Voltage	5.5V
Maximum Power Dissipation Pd	1W
Minimum Supply Voltage	3V
Device Core	C166
Program Memory Size	576kB
Maximum Clock Frequency	100MHz
Number of Programmable I/Os	119
Number of Timers	2
Instruction Set Architecture	DSP, RISC, CISC
ADCs	34 x 10 Bit
Program Memory Type	FLASH

Key Features

Operates at a maximum clock frequency of 100 MHz.
Integrates 576kB of FLASH program memory and 48kB RAM for robust applications.
Features a 16-bit data bus width with a C166 device core architecture.
Equipped with 119 programmable I/Os and 2 timers for versatile control.
Supports serial interface communication and 34 ADCs with 10-bit resolution.
Designed for operation between -40°C and 125°C temperature range.
Has a maximum power dissipation of 1 W and operates at 3 V to 5.5 V supply voltage.
Compact dimensions of 20 mm length, 20 mm width, and 1.4 mm height in LQFP package.

Product Description

Infineon XE167FM72F80LRABKXUMA1 is a 16 bit C166 family microcontroller with XE166 series architecture, operating at up to 100 MHz clock frequency. It incorporates a large 576kB FLASH program memory and 48kB of RAM in a 144-pin LQFP surface-mount package sized 20 mm by 20 mm by 1.4 mm, designed for high-density applications.

This device supports a data bus width of 16 bits with a C166 device core optimized for superior real-time control performance. Featuring 119 programmable input/output pins and 2 timers, it facilitates complex control and timing requirements. The microcontroller also includes 34 ADC channels with 10-bit resolution and a serial interface for external communications.

Operating within a supply voltage range of 3 V to 5.5 V and capable of dissipating up to 1 W of power, it functions reliably across a wide temperature range from -40°C to +125°C, suitable for harsh and industrial environments.

The microcontroller supports multiple instruction set architectures including DSP, RISC, and CISC, enabling efficient processing tailored to automotive, industrial automation, mass storage devices, and wired or wireless communication systems.

Operates at a maximum clock frequency of 100 MHz. Contains 576kB FLASH and 48kB RAM memory. Equipped with 119 programmable I/O pins and 2 timers. Includes 34 analog-to-digital converter inputs with 10-bit resolution. Supports serial interface communications.

Wide supply voltage operating range from 3 V to 5.5 V. Compact 144-pin LQFP package measuring 20 mm x 20 mm x 1.4 mm. Robust operation temperature from -40°C to +125°C. Instruction sets: DSP, RISC, and CISC for versatile applications.

Ideal for automotive, industrial, communication, and mass storage applications.

This microcontroller is ideal for use in industrial control systems, automotive electronics, storage solutions, and communication devices requiring high-performance real-time processing. Its compact footprint and extensive peripheral set ensure efficient system integration.
