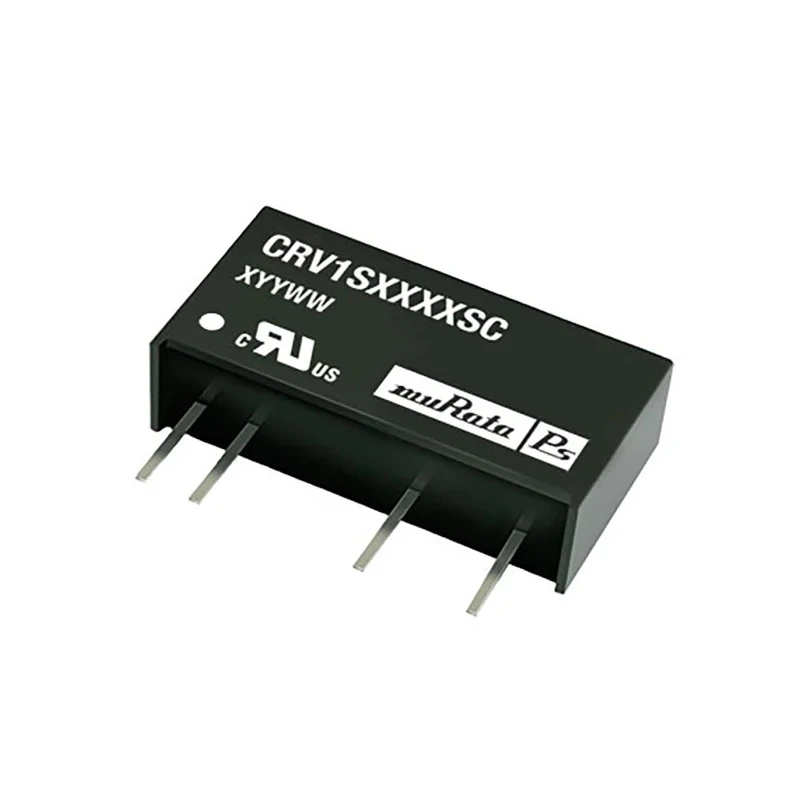

Murata Power Solutions DC/DC Converter 12V, -12 V, 42 mA Output Current, 10.8-13.2 V Input, 1W, Through Hole SIP Package CRV1

Murata Power Solutions CRV1 DC/DC Converter model CRV1D1212SC is a fully encapsulated isolated power module delivering dual outputs of 12 V and -12 V nominal voltage with 42 mA output current, suitable for industrial applications. It supports input voltages ranging from 10.8 V minimum to 13.2 V maximum DC, providing stable power conversion at 1 W output power.

This device uses a through hole mount type in a compact SIP package with 7 pins, facilitating straightforward PCB assembly. The converter features 3 kV DC galvanic isolation that protects sensitive electronics from noise and potential damage, ensuring robust system operation.

Designed for operation in harsh environments, the CRV1 is rated for a wide industrial temperature range from -40 °C up to 85 °C, with efficiency around 81%. Its compact footprint (19.5 mm x 6 mm x 10 mm) and low weight of 2.1 g make it ideal for space-constrained industrial power supply solutions.

The output voltage adjustment is available between 10.8 V and 13.2 V, with ripple and noise kept to a minimal 10 mV peak-to-peak. The unit has an impressive MTBF of 1,287,000 hours, underscoring reliability in demanding industrial scenarios.

The product conforms to CRE, RoHS, and UL standards, emphasizing safety, quality, and compliance. Its fully encapsulated design with toroidal magnetics enables durability and electromagnetic compatibility in control system boards and local supplies.

Operates at 1 W power output delivering dual 12 V and -12 V voltages for control systems. Supports through hole mounting and SIP package with industry-standard pinout. Galvanic isolation rated at 3 kV DC enhances noise immunity and system safety.

High efficiency and wide operating temperature range suitable for industrial environments. Compact size and lightweight facilitate versatile installation options. Meets international compliance standards including RoHS and UL.

This DC/DC converter is a reliable component for industrial, manufacturing, and power management applications requiring isolated dual power rails. Browse more DC/DC Converters in the Electronics & Electricals category at EnvMart for comprehensive power supply solutions.
