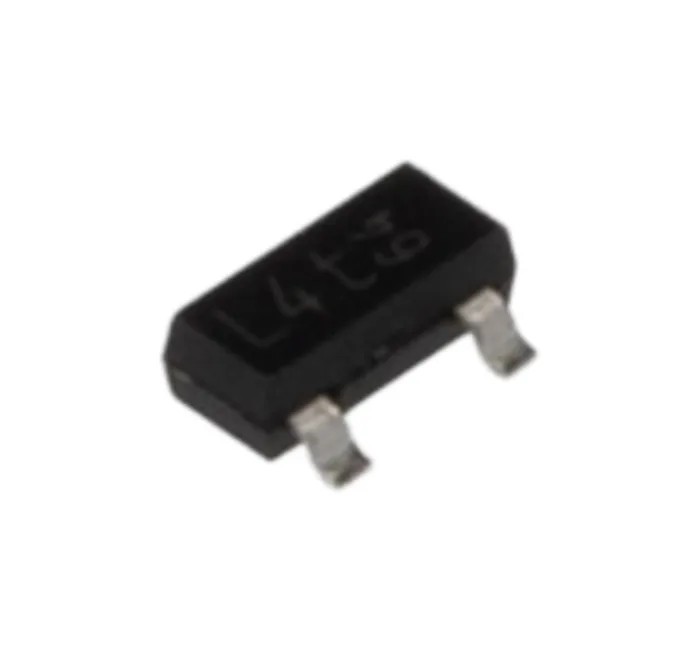

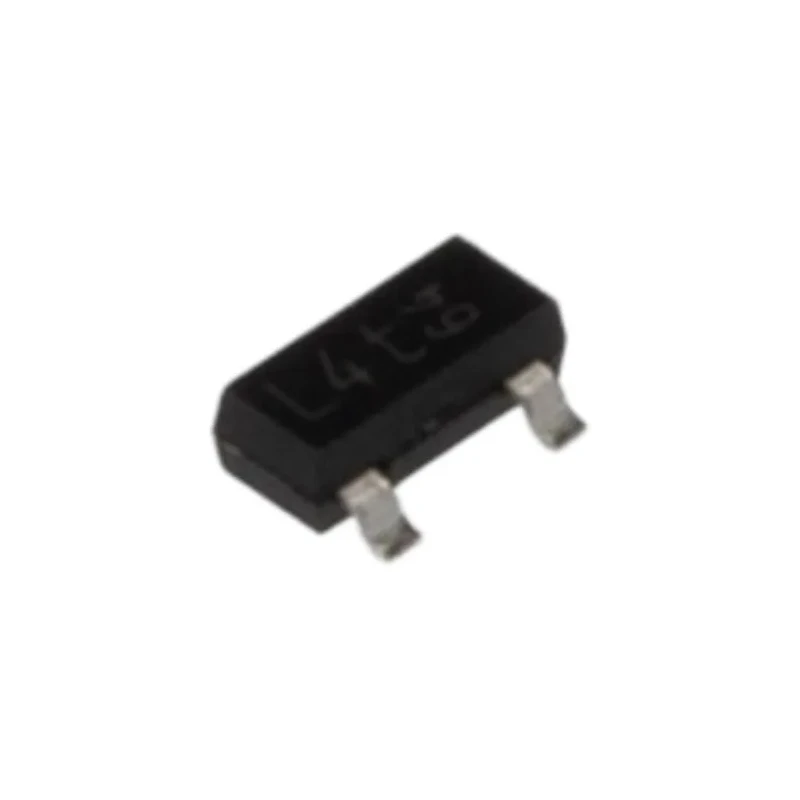

Nexperia Schottky Diode 30 V 200 mA Single Diode SOT-23 Package BAT54,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 30 V 200 mA Single Diode SOT-23 Package BAT54,215

Name: Nexperia Schottky Diode 30 V 200 mA Single Diode SOT-23 Package BAT54,215
Brand: Nexperia
SKU: 182720
Price: 0.03 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	3mm
Model	BAT54,215
Width	1.4mm
Mount Type	Surface
Series	BAT54
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns
onsemi 30 V 200 mA Diode Schottky 3-Pin SOT-23 BAT54LT1GBrand	onsemi

Key Features

The diode supports a maximum continuous forward current of 200 mA.
It features a peak reverse repetitive voltage of 30 V ensuring protection against voltage spikes.
The device has a maximum forward voltage of 800 mV allowing efficient power usage.
It operates reliably over a temperature range from -65°C to 125°C.
The package dimensions are compact with 3 mm length, 1.4 mm width, and 1 mm height.
Designed with low leakage current and negligible power switching losses.
Peak non-repetitive forward surge current is 600 mA for transient robustness.
The diode uses a single diode configuration and features a 3-pin layout.

Product Description

The Nexperia BAT54,215 is a highly efficient Schottky diode optimized for surface-mount PCB configurations with a compact SOT-23 package.

It supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, making it suitable for low voltage, low current rectification and protection circuits in electronics.

The diode's forward voltage drop is low at 800 mV, which minimizes power dissipation and heat generation during operation.

Operating temperature range extends from -65°C to 125°C, allowing use in demanding industrial and automotive environments. The component complies with the stringent automotive standard AEC-Q101, assuring reliability under harsh conditions.

Its ultra-small form factor with dimensions 3 mm length, 1.4 mm width, and 1 mm height makes it ideal for high-density PCB layouts and compact electronic devices. The diode exhibits a peak non-repetitive forward surge current of 600 mA for handling transient overloads.

It has negligible switching losses and low leakage current, enhancing efficiency in power supply and switching circuits. The peak reverse recovery time of 5 ns supports high-frequency switching applications with minimal delay.

This Schottky diode is widely used in industrial, automotive, consumer electronics, and power management applications requiring efficient, reliable low-voltage rectification. Choose the Nexperia BAT54,215 diode for high-performance Schottky rectification engineered for durability and efficiency.

Explore more Schottky diodes and semiconductor components at EnvMart for your next electronics design project.

Explore more products in our Schottky Diodes & Rectifiers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current for the Nexperia BAT54,215 Schottky diode is 200 mA.

This model has a peak reverse repetitive voltage rating of 30 V, providing protection against voltage spikes.

The maximum forward voltage drop for the BAT54,215 is 800 mV, which helps minimize power dissipation during operation.

It operates reliably over a temperature range from -65°C to 125°C, making it suitable for various environments.

The SOT-23 package dimensions are 3 mm in length, 1.4 mm in width, and 1 mm in height.

The peak non-repetitive forward surge current for this diode is 600 mA, allowing it to handle transient overloads.

This model features a 3-pin layout, designed for surface-mount configurations.

The BAT54,215 complies with the automotive standard AEC-Q101, ensuring reliability under harsh conditions.

The peak reverse recovery time is 5 ns, supporting high-frequency switching applications with minimal delay.

This component is a Schottky rectifier, optimized for low voltage and low current applications.

The BAT54,215 exhibits a peak reverse current of 2 μA, indicating low leakage current.

This diode is widely used in industrial, automotive, consumer electronics, and power management applications requiring efficient low-voltage rectification.
