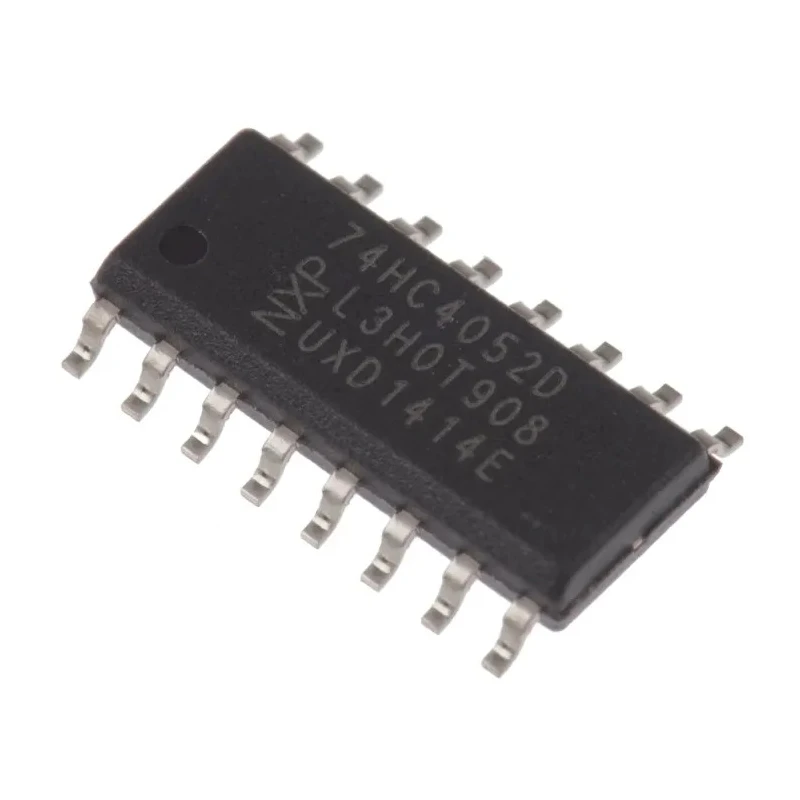

Nexperia 74HC4052D,652 CMOS Dual 4 x 1 Multiplexer/Demultiplexer 16-Pin SOIC 2 to 6 V Operating Voltage 74HC4052D,652

The Nexperia 74HC4052D,652 is a CMOS dual 4 x 1 multiplexer/demultiplexer IC designed for efficient signal routing in digital electronic applications. Operating at a voltage range of 2 to 6 volts, this 16-pin Surface Mount Technology (SOIC) device supports multiplexing and demultiplexing functions with minimal power consumption thanks to advanced silicon gate CMOS technology.

This high-speed logic IC is equipped with 2 elements per chip configured as dual 4 x 1, suitable for switching and routing digital signals in various industrial, laboratory, and manufacturing environments. It can operate reliably under harsh conditions with an operating temperature range of minus 40°C to 125°C.

Its compact 16-pin SOIC package measures 10 mm in length, 4 mm in width, and 1.45 mm in height, enabling space-saving designs on PCBs. The IC offers a maximum on-state resistance of 225 ohms to ensure effective signal integrity during switching operations.

The device is fully CMOS compatible at both input and output, simplifying design integration with other CMOS logic family components. This multiplexer/demultiplexer is well suited for applications including data selection, signal routing, and communication systems requiring dual 4 x 1 channel multiplexing.

High-speed operation with low power consumption using silicon gate CMOS technology. Wide operating voltage range from 2 to 6 volts. Robust temperature tolerance from -40°C to 125°C for various environments. Compact 16-pin SOIC package for surface mounting and space-saving applications.

Maximum on-state resistance of 225 ohms ensures low signal loss. Dual 4 x 1 channel configuration for versatile multiplexing/demultiplexing tasks. Compatible with CMOS input/output logic levels.

The Nexperia 74HC4052D,652 multiplexer/demultiplexer IC provides a reliable, high-performance solution for industrial electronics, embedded systems, and other professional applications requiring multiple signal channel management within a compact footprint. It is part of the well-established 74HC series CMOS logic family, guaranteeing consistent functionality and ease of use.
