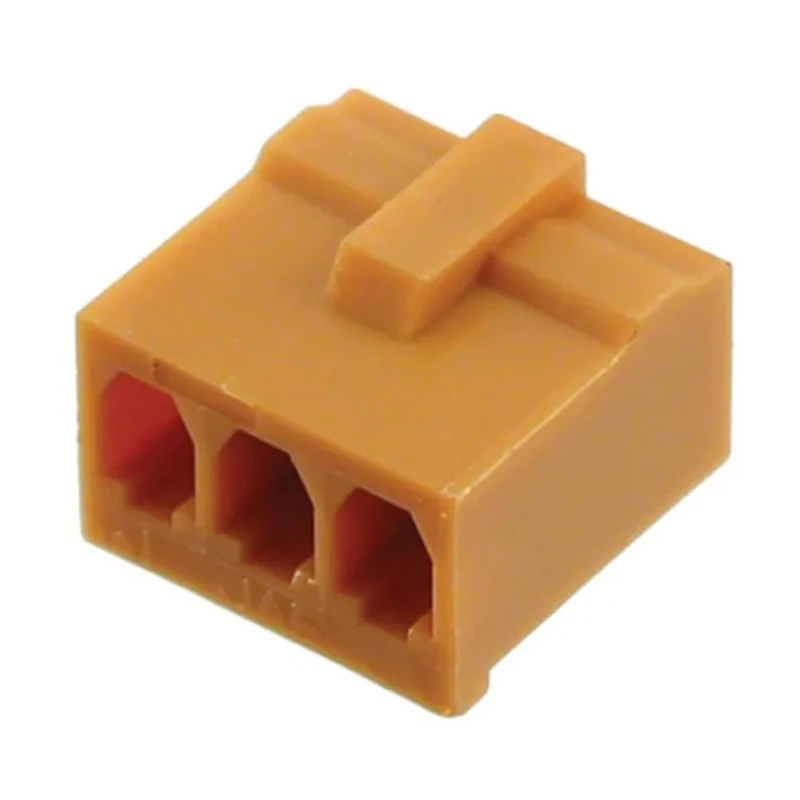

JAE IL-G Female Connector Housing 2.5 mm Pitch 3 Way 1 Row Straight Nylon Surface Mount IL-G-3S-S3C2-SA

Free Delivery in India | Lowest Global Shipping Charges

JAE IL-G Female Connector Housing 2.5 mm Pitch 3 Way 1 Row Straight Nylon Surface Mount IL-G-3S-S3C2-SA



Category Connector Housing Brand JAE Condition New

Specifications

Country of Origin	Japan
Brand	JAE
Orientation	Straight
Length	8mm
Model	IL-G-3S-S3C2-SA
Width	6mm
Mount Type	Surface
Housing Material	Nylon
Series	IL-G
Number of Rows	1
Pitch	2.5mm
For Use With	Wire-to-Board Connector
Number of Contacts	3
Connector Gender	Female

Key Features

Low profile design with a 10 mm mated height, suitable for compact PCB assemblies.
Polarization key prevents mismating during installation.
Friction locking mechanism ensures a secure mating connection.
Surface mount type housing designed for wire-to-board connectors.
Constructed from durable nylon housing material for electrical insulation and structural stability.
Compatible with IL-G Series 2.5 mm PCB headers and requires separate crimp contacts.
Connector orientation is straight for easy PCB routing and wiring.
Manufactured in Japan ensuring high quality standards.

Product Description

JAE IL-G-3S-S3C2-SA female connector housing is a high-quality 2.5 mm pitch wire-to-board connector housing specifically engineered for reliable electrical connections in compact electronic assemblies. This connector housing belongs to the IL-G Series, featuring a low-profile design with a total mated height of only 10 mm, enabling space-saving layouts in industrial, electronics manufacturing, automotive, and telecommunications applications.

The housing supports three contacts arranged in a single row, providing a straightforward and organized connection interface. It features a polarization key that effectively prevents incorrect mating, ensuring reliability and reducing the risk of assembly errors. The friction lock mechanism secures the connection, maintaining electrical contact integrity even in vibration-prone environments.

Constructed from tough nylon housing material, this connector housing ensures excellent insulation and mechanical strength. The surface mount type design facilitates easy PCB mounting, making it ideal for modern automated assembly processes. Although crimp contacts are required separately, this housing interfaces seamlessly with the IL-G Series 2.5 mm PCB headers.

With dimensions of 8 mm length and 6 mm width, and a pitch of 2.5 mm, it balances compact size with robust functionality. The straight orientation simplifies wiring and integrates well with standard PCB designs. Manufactured in Japan, this product is synonymous with quality and durability, suitable for industrial, laboratory, manufacturing, and commercial electronic applications.

Low profile 10 mm mated height for compact assemblies. Polarization key prevents connector mismating. Friction lock secures mating engagement. Durable nylon housing material ensures insulation and strength. Supports 3 contacts in 1 row with 2.5 mm pitch.

Surface mount type for wire-to-board connector compatibility. Straight orientation facilitates wiring and PCB routing. Manufactured in Japan for quality assurance.

This Connector Housing is part of EnvMart’s wide range of electronic components, ideal for professionals seeking reliable and precise connector solutions. Explore the Electronics Components category on EnvMart for more quality connectors and related products.
