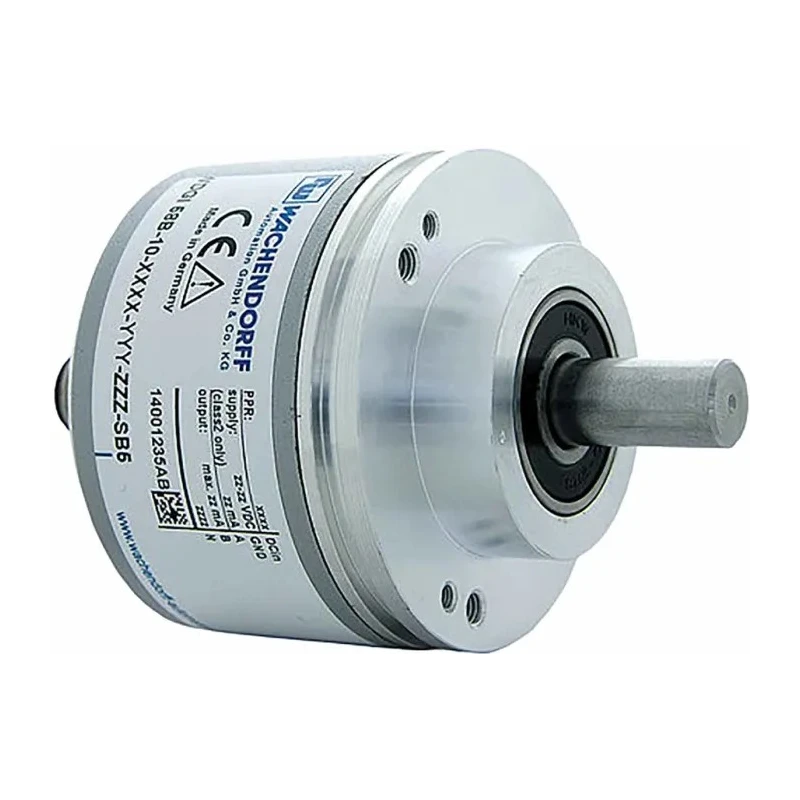

Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 60 ppr, HTL Signal, Solid Shaft 10 mm WDG58B-60-ABN-G24-K3

Wachendorff WDG58B-60-ABN-G24-K3 Incremental Encoder is engineered for precise rotational measurement in industrial automation applications. Operating at a supply voltage of 30V dc, it delivers reliable incremental output signals with 60 pulses per revolution (ppr), suitable for accurate position, speed, distance, or rpm monitoring across various machinery and systems.

This encoder features a robust solid shaft type with a 10 mm diameter, mounted via a clamping flange for stable installation. Its industrial-grade aluminium housing provides exceptional protection, boasting an IP67 rating at the cover and IP65 at the shaft, ensuring resistance against dust and water intrusion in harsh environments.

Designed for high-speed operation, it supports rotary speeds up to 8000 rpm and a switching frequency reaching 200 kHz. The device functions efficiently across a wide temperature range from -20°C to 80°C, enhancing its versatility in diverse industrial scenarios.

The encoder is compliant with DIN VDE 0160 standards and is manufactured in the United States, guaranteeing adherence to stringent quality and performance criteria. Its sturdy construction withstands high axial and radial loads, contributing to long service life and minimal maintenance.

Typical applications include industrial automation, motion control systems, manufacturing machinery, motor feedback, and other rotary encoding needs requiring precision and durability.

Operates with a maximum supply voltage of 30V dc ensuring efficient power consumption. Features 60 pulses per revolution (ppr) for accurate incremental encoding. Durable solid type shaft design with 10 mm diameter for robust operation.

Equipped with HTL output signal for reliable data transmission. Constructed with a sturdy industrial aluminium housing with clamping flange mount. High protection class rated IP65 at shaft and IP67 at cover for severe environments.

Supports operating temperatures from -20°C to 80°C suitable for varied industrial conditions. Maximum rotary speed up to 8000 rpm with a switching frequency of 200 kHz. Complies with DIN VDE 0160 and features high axial and radial load resistance for enhanced durability.

Manufactured in the United States, ensuring quality and standards compliance. Explore more industrial sensors and encoders in our Electronics & Electricals category on EnvMart for reliable automation solutions.
