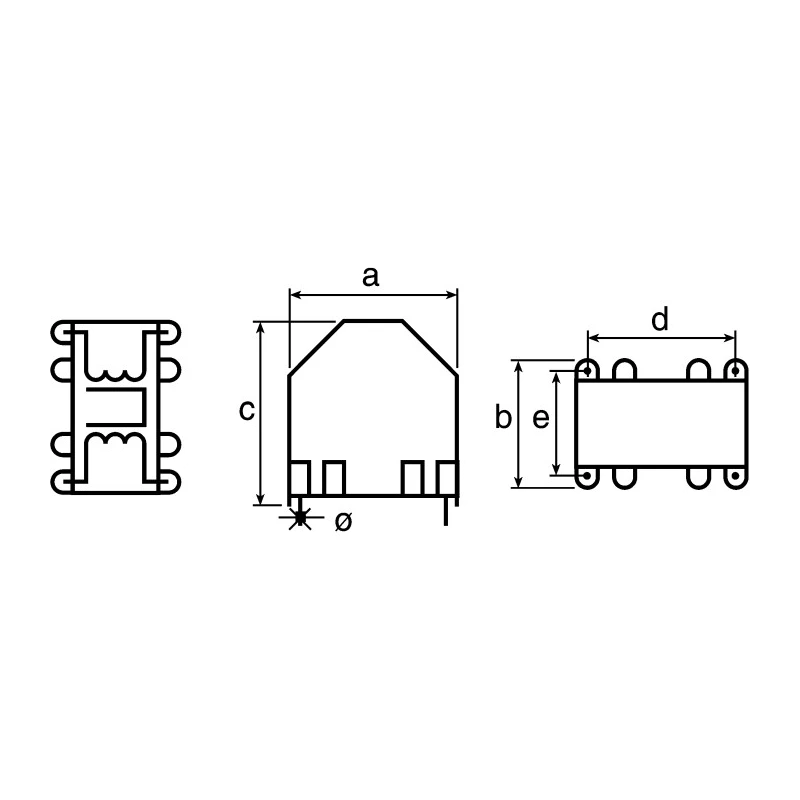

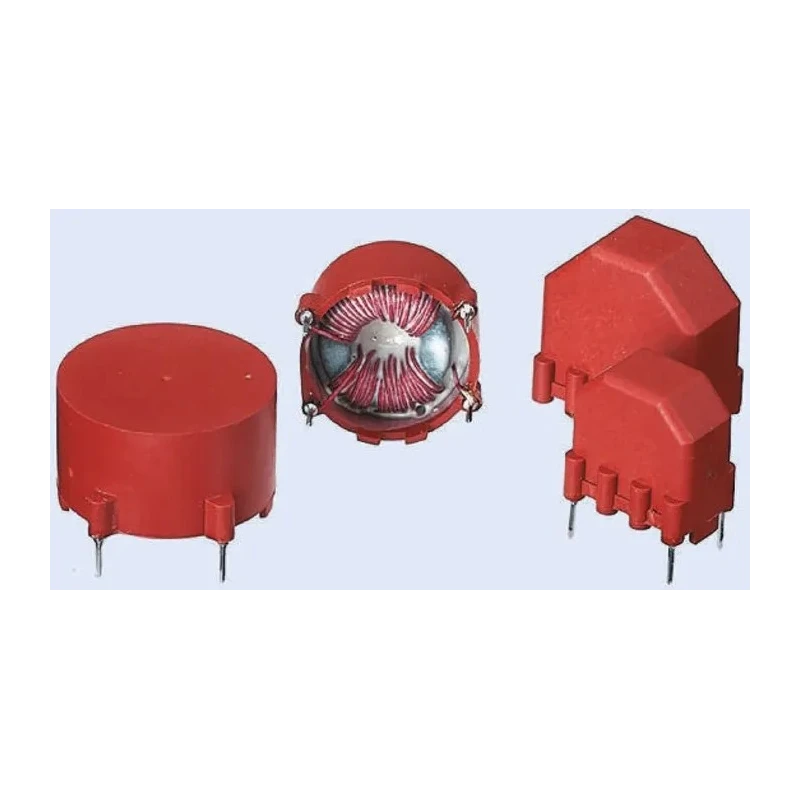

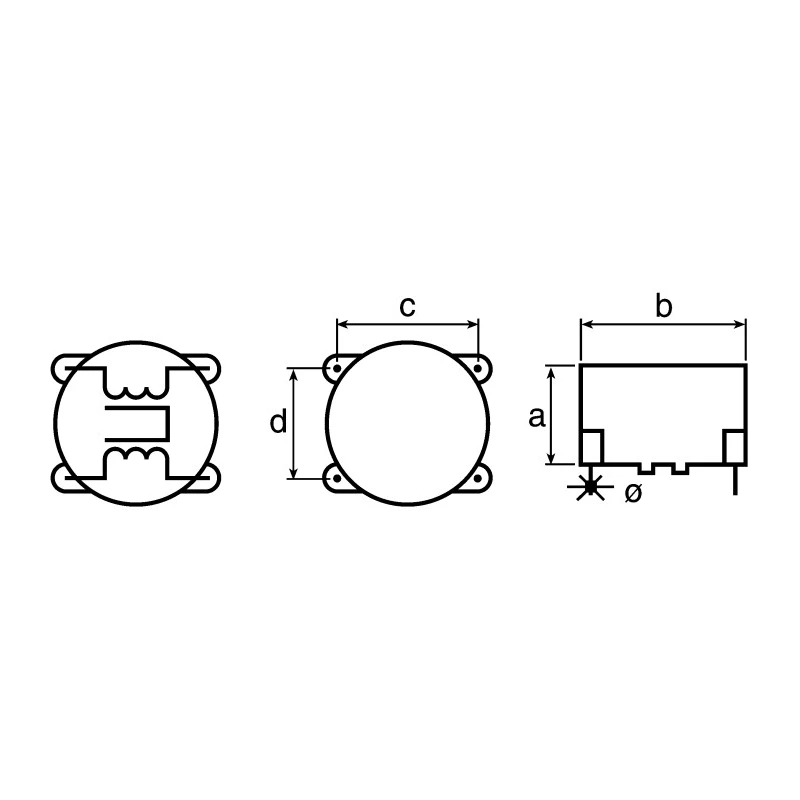

Wurth Elektronik Wirewound Surface Mount Inductor with Manganese Zinc Ferrite Core, 1 mH, Shielded, 4-Pin, Tray 7446122001
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 20.5mm |
| Length | 18.5mm |
| Depth | 13.5mm |
| Packaging | Tray |
| Series | WE-LF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 1mH |
| Package/Case | Tray |
| Maximum DC Current | 2A |
| Pin Count | 4 |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Inductor Construction | Sector Winding |
Key Features
- This inductor features a manganese zinc ferrite core for high-quality magnetic properties.
- The device is constructed with sector winding for effective inductance and low leakage.
- It is packaged in a tray with 4 pins for surface mounting.
- Maximum DC current handling capability is 2 A, supporting moderate power circuits.
- The inductance tolerance is ±30 %, ensuring predictable performance.
- Operating temperature range spans from -25°C to 125°C.
- The device complies with multiple standards including AEC-Q200 and RoHS for quality and environmental safety.
- Its shielded construction minimizes electromagnetic interference in sensitive applications.
Product Description
Wurth Elektronik 7446122001 Wirewound Surface Mount Inductor is engineered with a manganese zinc ferrite core, delivering 1 mH inductance in a shielded, compact 4-pin tray package. This inductor is ideal for use in industrial, power electronics, and switched-mode power supply applications requiring effective suppression of common-mode interference.
The sector winding design and shielded construction provide excellent magnetic coupling with minimal leakage fields. Capable of handling a maximum DC current of 2 amperes, it supports reliable performance across a broad temperature range from -25°C to 125°C. Its inductance tolerance of ±30 % ensures consistent inductive characteristics.
This component meets rigorous standards such as AEC-Q200, DIN EN 61760-2, ENEC 10, JEDEC JS709B, REACH, RoHS, and VDE, confirming its suitability for automotive and industrial environments. The solder termination style facilitates easy surface mounting on PCBs, enhancing manufacturing efficiency.
Wurth Elektronik's WE-LF series common mode chokes and inductors are designed to suppress electromagnetic noise in mains filter circuits and power modules. This model's shielded nature and high-quality core material result in good suppression of interference in low to medium frequency ranges, making it valuable for commercial electronics manufacturing and industrial electronic assemblies.
This inductor features a manganese zinc ferrite core for high-quality magnetic properties. The device is constructed with sector winding for effective inductance and low leakage. It is packaged in a tray with 4 pins for surface mounting.
Maximum DC current handling capability is 2 A, supporting moderate power circuits. The inductance tolerance is ±30 %, ensuring predictable performance. Operating temperature range spans from -25°C to 125°C. The device complies with multiple standards including AEC-Q200 and RoHS for quality and environmental safety.
Its shielded construction minimizes electromagnetic interference in sensitive applications. Explore more Wurth Elektronik Inductors at EnvMart to meet your electronic component needs for high-reliability and efficient circuit designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 mH.
It has a maximum DC current handling capability of 2 A.
The operating temperature range spans from -25°C to 125°C.
This inductor features a manganese zinc ferrite core.
It is packaged in a tray with 4 pins for surface mounting.
The inductance tolerance is ±30 %, ensuring predictable performance.
The maximum DC resistance is 60 mΩ.
This unit uses a solder termination style for easy surface mounting.
It features a sector winding construction for effective inductance and low leakage.
It complies with multiple standards including AEC-Q200 and RoHS.
The dimensions are 20.5 mm in height, 18.5 mm in length, and 13.5 mm in depth.
This inductor is suitable for industrial, power electronics, and switched-mode power supply applications.
