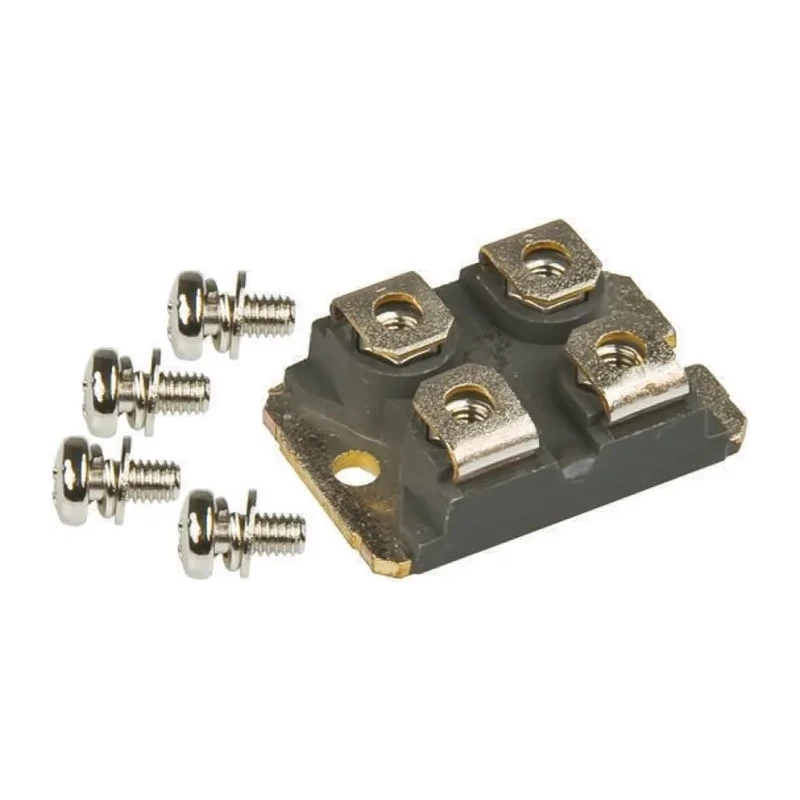

STMicroelectronics Switching Diode Isolated Silicon Junction Surface Mount 4-Pin 1200 V 90 A ISOTOP STTH9012TV1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 12.2mm |
| Length | 38.2mm |
| Model | STTH9012TV1 |
| Width | 25.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Pin Count | 4 |
| Diode Configuration | Isolated |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Maximum Forward Voltage Vf | 1.9V |
| Peak Reverse Recovery Time trr | 50ns |
| Maximum Forward Current If | 90A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 1200V |
Key Features
- High maximum forward current of 90 amperes suitable for power electronics.
- Peak non-repetitive forward surge current rated at 420 amperes.
- Low maximum forward voltage of 1.9 volts ensuring efficient conduction.
- Fast peak reverse recovery time of 50 nanoseconds encourages high switching speeds.
- Operational temperature range from -65°C to 150°C for various environments.
- Compact dimensions with length 38.2 mm, width 25.5 mm, and height 12.2 mm.
- Surface mount mount type in an ISOTOP package for reliable power electronics integration.
- Four-pin configuration facilitating electrical isolation and stable mounting.
Product Description
STMicroelectronics STTH9012TV1 is a high-performance switching diode featuring an isolated silicon junction ideal for demanding power semiconductor applications. Packaged in a 4-pin ISOTOP surface mount configuration, it supports a maximum forward current of 90 amperes and a peak repetitive reverse voltage of 1200 volts. This diode is particularly suitable for industrial, power rectification, and switching applications requiring rapid switching and high surge current capabilities.
The device's fast reverse recovery time of 50 nanoseconds improves efficiency in high-frequency switching circuits. Its low forward voltage drop of 1.9 volts minimizes conduction losses, enhancing power efficiency. With an operational temperature range spanning from -65°C up to 150°C, the STTH9012TV1 reliably performs in varied electrical and environmental conditions.
Dimensions are compact at 38.2 mm length, 25.5 mm width, and 12.2 mm height, supporting efficient PCB layout and thermal management within power systems. Although it does not conform to automotive standards, the diode suits industrial manufacturing, HVAC systems, power supplies, and electrical equipment requiring robust diode switching elements.
Key technical features include its 4-pin isolated layout supporting both electrical isolation and thermal conduction, along with a peak non-repetitive forward surge current rating of 420 amperes to withstand transient loads commonly found in industrial settings.
High maximum forward current of 90 A for demanding power applications. Fast peak reverse recovery time of 50 ns for efficient switching. Wide operational temperature range from -65°C to 150°C for reliability. Compact and robust ISOTOP 4-pin surface mount package.
Low forward voltage drop of 1.9 V reduces energy loss. Peak surge current capacity of 420 A for transient handling. Stable, isolated diode construction for use in power electronics. Ideal for industrial, construction, HVAC, and manufacturing applications.
Suitable for integration in power supplies and electronic control systems. For professional industrial-grade semiconductor switching components, explore further solutions under STMicroelectronics in the Semiconductor Switching Diodes category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current of this diode is 90 amperes, making it suitable for demanding power applications.
The peak reverse recovery time for the STTH9012TV1 is 50 nanoseconds, which supports efficient switching in high-frequency circuits.
It operates within a temperature range of -65°C to 150°C, allowing reliable performance in various environments.
The dimensions of this diode are 38.2 mm in length, 25.5 mm in width, and 12.2 mm in height, facilitating efficient PCB layout.
The diode has a peak non-repetitive forward surge current rating of 420 amperes, allowing it to withstand transient loads.
This model is packaged in an ISOTOP surface mount configuration, which supports reliable power electronics integration.
The forward voltage drop is low at 1.9 volts, which minimizes conduction losses and enhances overall power efficiency.
It is suitable for industrial, power rectification, and switching applications that require rapid switching and high surge current capabilities.
This diode features a 4-pin configuration, which facilitates electrical isolation and stable mounting.
The STTH9012TV1 has an isolated diode configuration, which is beneficial for power electronics applications.
The maximum peak reverse repetitive voltage for this diode is 1200 volts, suitable for high-voltage applications.
The minimum operating temperature for the STTH9012TV1 is -65°C, allowing it to function in extreme cold conditions.
