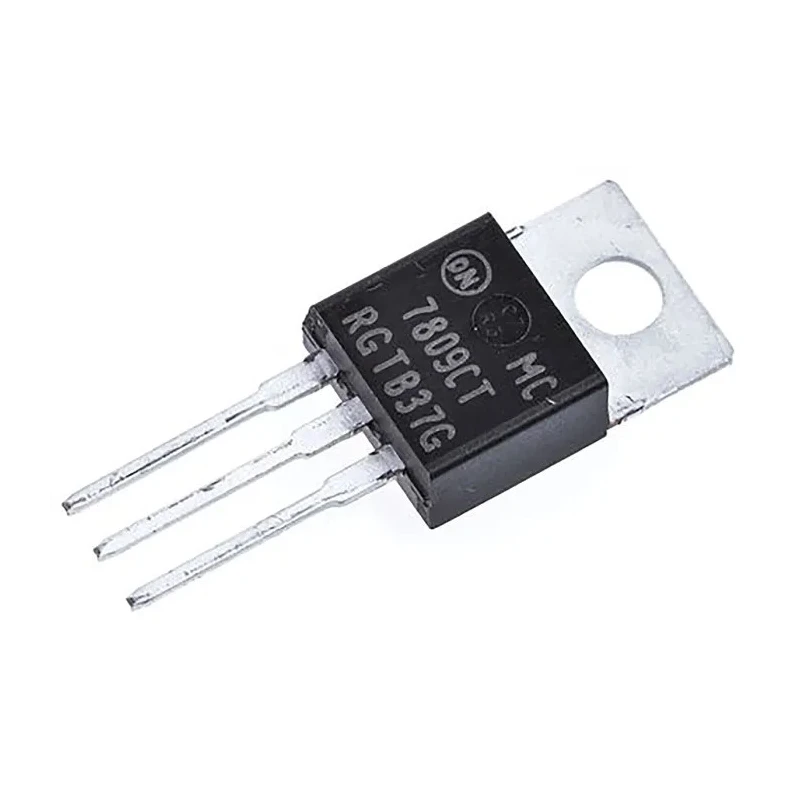

onsemi 5-Channel Linear Voltage Regulator 9V 2.2A TO-220 3-Pin MC7809CTG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7809CTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MC78xx |
| Output Current | 2.2A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 35 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 9V |
| Quiescent Current | 3.4mA |
| Line Regulation | 32 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Features a fixed output voltage of 9V, ensuring consistent performance.
- Capable of delivering up to 2.2 amperes output current for various applications.
- Constructed with a 5-channel linear regulator design for efficient voltage control.
- Designed for through-hole mounting with a TO-220 package for easy integration.
- Operates within a temperature range of 0°C to 125°C suitable for demanding environments.
- Compliant with RoHS standards ensuring environmental safety.
- Includes positive polarity and 3-pin configuration for standard regulator applications.
- Meets automotive standard AEC-Q100 for quality and reliability in automotive use.
Product Description
The onsemi MC7809CTG is a 5-channel linear voltage regulator designed to deliver a fixed output voltage of 9 volts with an output current capacity of 2.2 amperes. This regulator comes in a TO-220 3-pin package that is ideal for through-hole mounting in a wide range of electronic circuits. The device features positive polarity and a pin count of 3 to streamline its use in standard power supply configurations.
Operating efficiently between 0°C and 125°C, the MC7809CTG suits industrial and automotive applications, complying with the rigorous AEC-Q100 automotive standard for reliability. It maintains excellent voltage regulation, with line regulation rated at 32 mV and load regulation at 35 mV, ensuring stable and consistent power to sensitive electronics.
This voltage regulator adheres to RoHS standards, emphasizing environmentally compliant manufacturing. Its compact dimensions - 30.02 mm in height, 10.28 mm in length, and 4.82 mm in width - facilitate convenient integration into diverse PCB layouts without occupying excessive space.
Applications typically include power management in industrial equipment, automotive electronics, and consumer electronic devices requiring fixed 9V power supplies with reliable current handling capacity.
Fixed 9V output voltage for regulated power supply. Supports 2.2A output current suitable for medium power loads. Five linear voltage regulator channels enhance performance consistency. Through-hole TO-220 package ensures ease of installation and heat dissipation.
Meets automotive AEC-Q100 standard for use in automotive systems. Operating temperature range from 0°C to 125°C for harsh conditions. Compliant with RoHS directives for environmental safety. Compact physical size for flexible design implementations.
Stable line and load regulation for precise voltage output.
This voltage regulator is an essential component for engineers designing power supply systems in industrial automation, automotive electronics, and consumer products. Explore more power management ICs and Voltage Regulators on EnvMart for a wide range of industrial and commercial applications.
