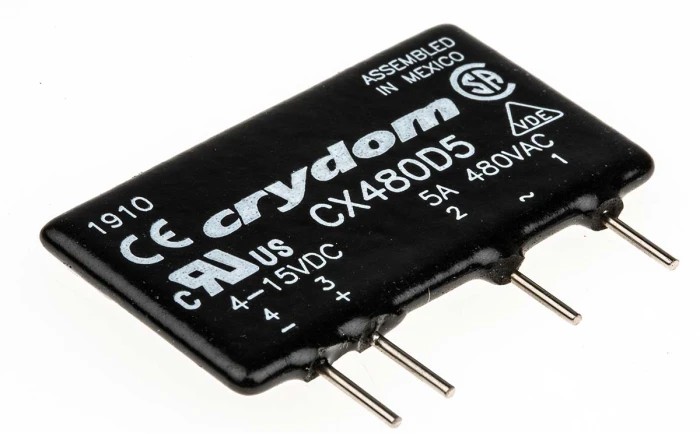

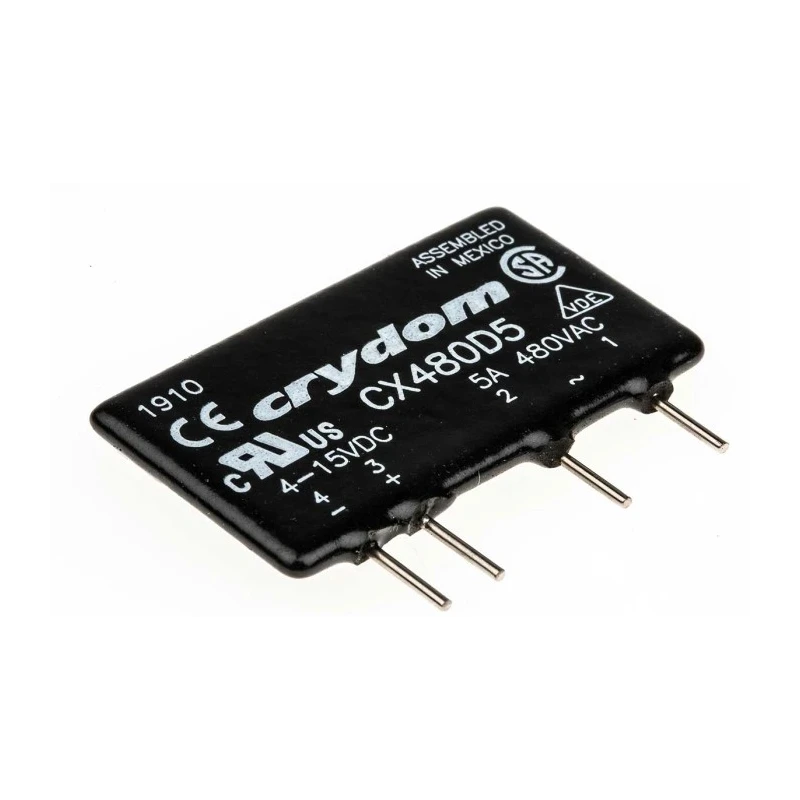

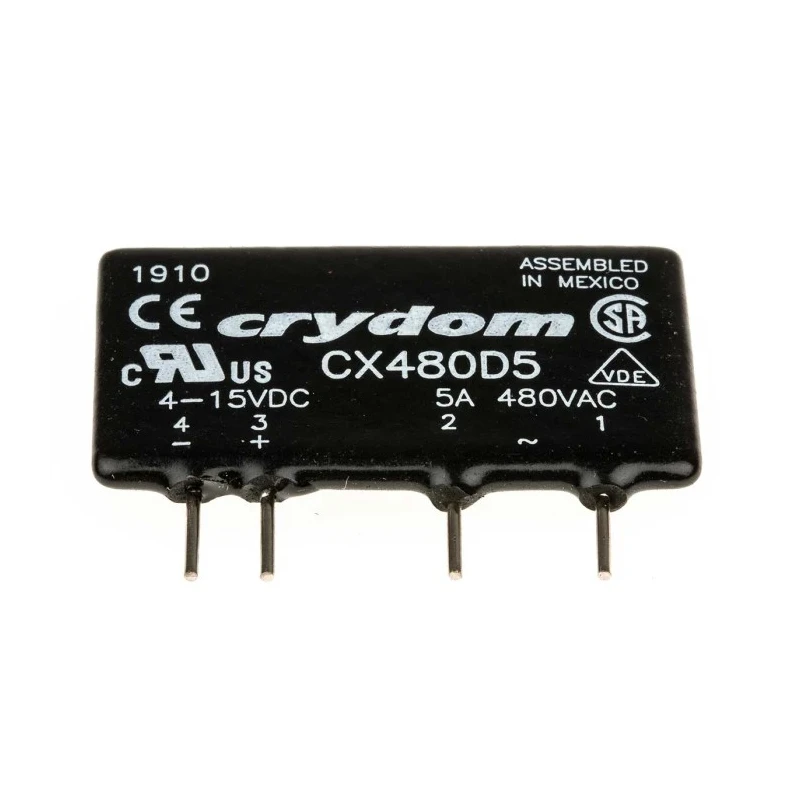

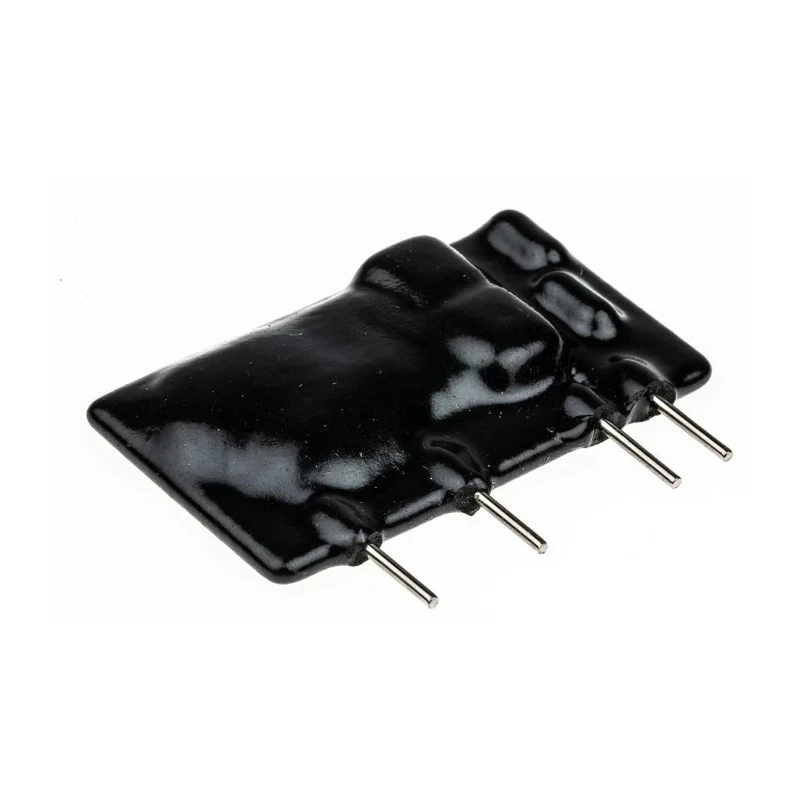

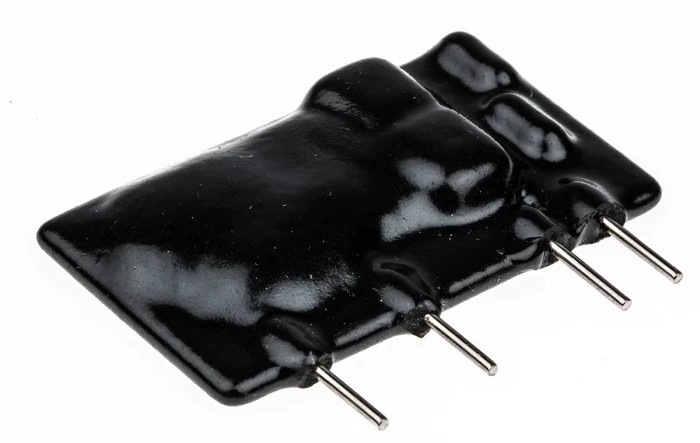

Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 660 V AC Load, 15 V Control CX480D5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 25.4mm |
| Length | 43.1mm |
| Model | CX480D5 |
| IP Rating | IP20 |
| Width | 7.6mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | CX |
| Maximum Operating Temperature | +80°C |
| Package Type | Zero Cross Switching |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Pin |
| Switching Function | Zero Cross |
| Maximum Load Current | 5A |
| Standards/Approvals | CE, CSA |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V ac/dc |
| Maximum Control Voltage | 15V |
| Off State Leakage Current | 0.1mArms |
Key Features
- Supports a maximum load current of 5 A for effective circuit control.
- Engineered for PCB mount installation saving space in electronic assemblies.
- Maximum AC load voltage of 660 V ensures compatibility with high voltage applications.
- Zero-cross switching minimizes electrical noise and prevents inrush current damage.
- Wide operating temperature range from -30°C to +80°C for industrial environment suitability.
- Solder pin terminal type allows secure and stable PCB connection.
- Compact dimensions of 43.1 mm length, 25.4 mm height, and 7.6 mm width optimize PCB space.
- Uses SCR output type for fast and controlled switching with reduced harmonic distortion.
Product Description
The Crydom CX480D5 Solid State Relay by Crydom offers efficient and durable switching for industrial and commercial electronic applications. This model supports a maximum load current of 5 amperes and maximum AC load voltage of 660 volts, making it suitable for medium power control tasks.
Designed for PCB mounting with solder pin terminals, the relay's compact size (43.1 mm length x 25.4 mm height x 7.6 mm width) fits well in densely packed circuit boards. The zero-cross switching function reduces electrical noise and prevents damage to sensitive components by switching the load when the AC waveform crosses zero voltage.
Its SCR (Silicon Controlled Rectifier) output allows fast and controlled power switching that avoids harmonic distortion, enhancing energy efficiency.
Operating temperature ranges from -30°C up to +80°C, making it robust for harsh industrial environments including HVAC systems, conveyor controls, automation equipment, and fan controls.
The relay complies with CE and CSA standards, ensuring quality and safety in industrial use. Supports maximum load current of 5 A for reliable switching. PCB mount design with solder pin terminals for secure installation.
Maximum load voltage of 660 V AC suitable for industrial AC loads. Zero-cross switching minimizes noise and inrush current impacts. Wide operating temperature range (-30°C to +80°C) enables harsh environment use. Compact dimensions save PCB real estate.
SCR output type ensures precise power control and low harmonic interference. IP20 rating protects against solid objects larger than 12 mm. Control voltage between 4 V and 15 V DC for flexible control signal inputs. Certified to CE and CSA standards for industrial compliance.
This Crydom solid state relay is ideal for industrial automation, manufacturing controls, HVAC systems, and other applications requiring reliable, fast, and quiet switching without mechanical wear. Browse related Solid State Relays and Crydom products at EnvMart for your automation and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom CX480D5 supports a maximum load current of 5 A, making it suitable for medium power control applications.
This model can handle a maximum AC load voltage of 660 V, ensuring compatibility with high voltage applications.
It utilizes an SCR (Silicon Controlled Rectifier) output type, which allows for fast and controlled switching with reduced harmonic distortion.
The relay operates effectively within a temperature range of -30°C to +80°C, making it suitable for harsh industrial environments.
This solid state relay has compact dimensions of 43.1 mm in length, 25.4 mm in height, and 7.6 mm in width, optimizing PCB space.
The Crydom CX480D5 is designed for PCB mount installation and features solder pin terminals for secure and stable connections.
The control voltage for this model ranges from 4 V to 15 V DC, providing flexibility for control signal inputs.
It features zero-cross switching, which minimizes electrical noise and prevents inrush current damage to sensitive components.
This model is certified to CE and CSA standards, ensuring quality and safety for industrial use.
The relay has an IP20 rating, which protects against solid objects larger than 12 mm.
This solid state relay is ideal for applications in industrial automation, manufacturing controls, HVAC systems, and fan controls.
The off state leakage current for the Crydom CX480D5 is 0.1 mArms, which is essential for understanding its energy efficiency.
