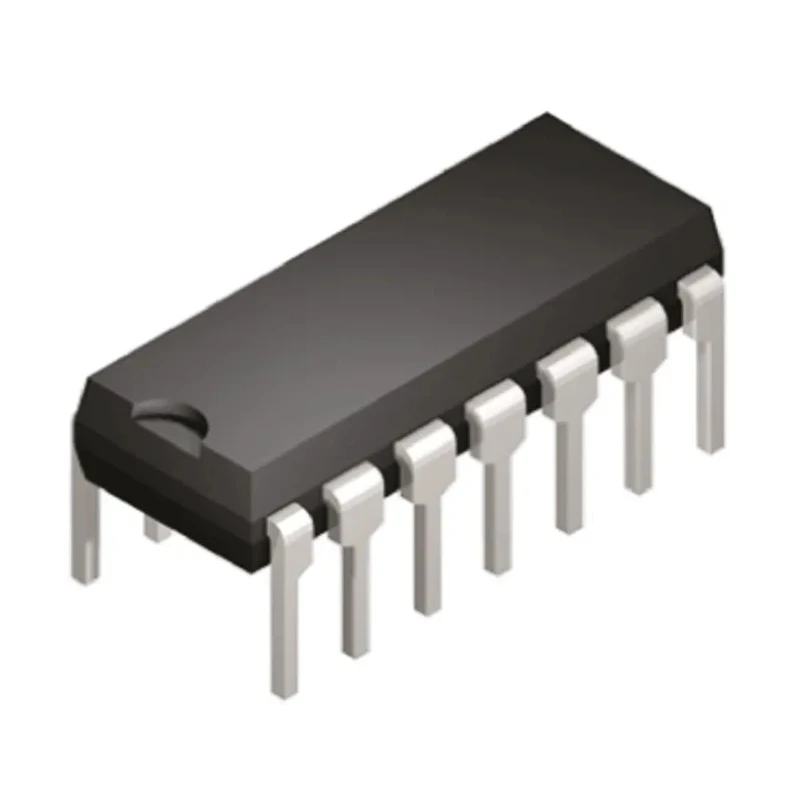

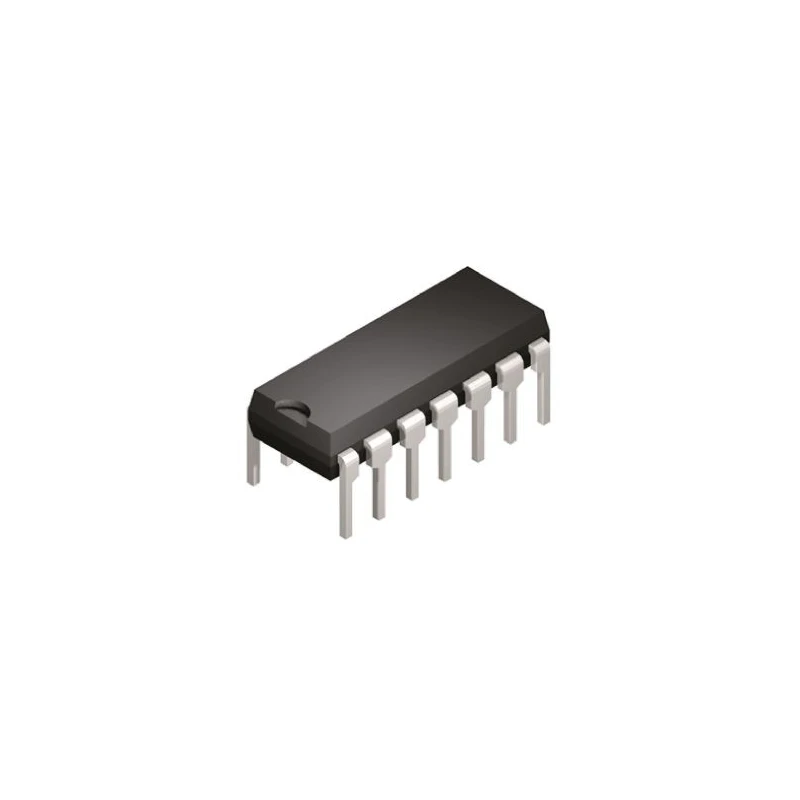

Texas Instruments 4 2-Input OR Logic Gate 14-Pin PDIP SN7432N

Texas Instruments SN7432N is a 4 2-Input OR Logic Gate integrated circuit in a 14-Pin PDIP (Plastic Dual In-line Package) format. It is part of the 74 logic family utilizing standard TTL logic technology, designed for through-hole mounting on printed circuit boards.

The device operates at a supply voltage ranging from 4.75V minimum to 5.25V maximum, supporting industrial applications that require reliable digital logic gate functions. The maximum propagation delay time of 5ns enables swift logic transitions, making it suitable for high-speed digital circuits.

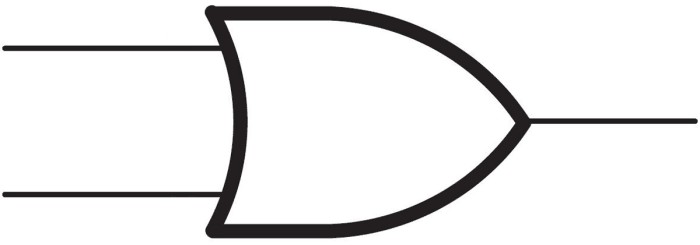

Each IC contains four OR gates, with two inputs per gate, suitable for combining digital signals as part of logic circuit design in various electronics and semiconductor systems.

The chip operates within a temperature range from 0°C to 70°C, making it ideal for commercial and industrial use. Its low power consumption characteristics, with maximum high-level output current rated at -0.8mA and maximum low-level output current at 16mA, optimize efficiency in logic signal amplification.

Compliance with EN 61340-5-1 standards adds electrostatic discharge control assurance, ensuring protection during manufacturing and handling. This 14-pin PDIP package allows easy insertion into standard socket headers and prototype boards.

The 74 logic family offers tried and tested TTL logic performance. Non-Schmitt trigger input design provides predictable logical threshold behavior. Multiple output current capabilities make this IC adaptable to a wide range of logic level inputs.

Suitable for use in industrial automation, instrumentation, digital processors, and other semiconductor applications. Facilitates efficient circuit design with multiple Logic Gates integrated in one chip. Explore a broad selection of high-quality logic ICs from Texas Instruments and other manufacturers at EnvMart for all your electronic component needs.
