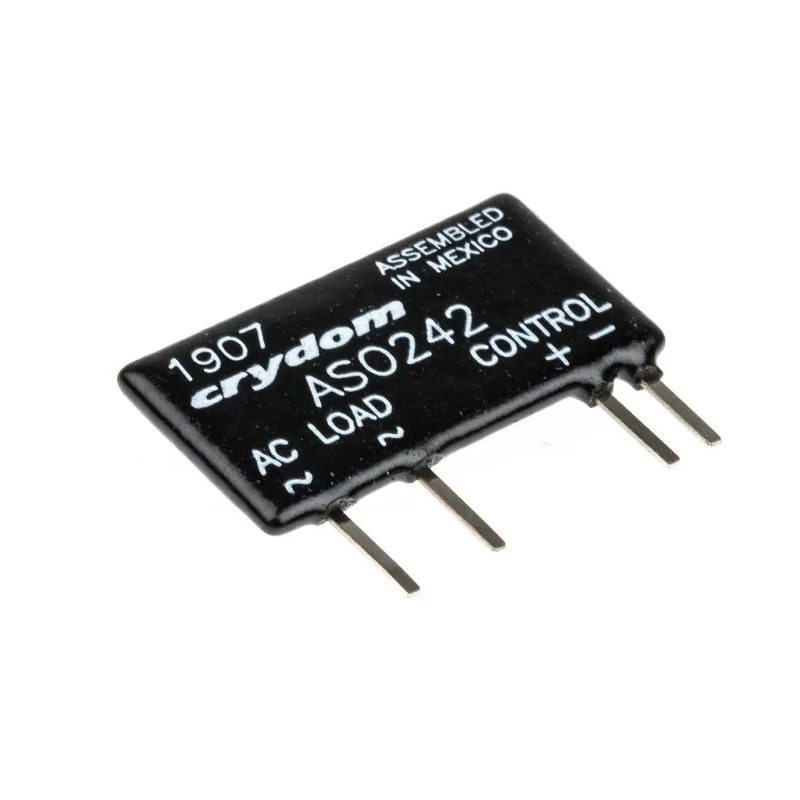

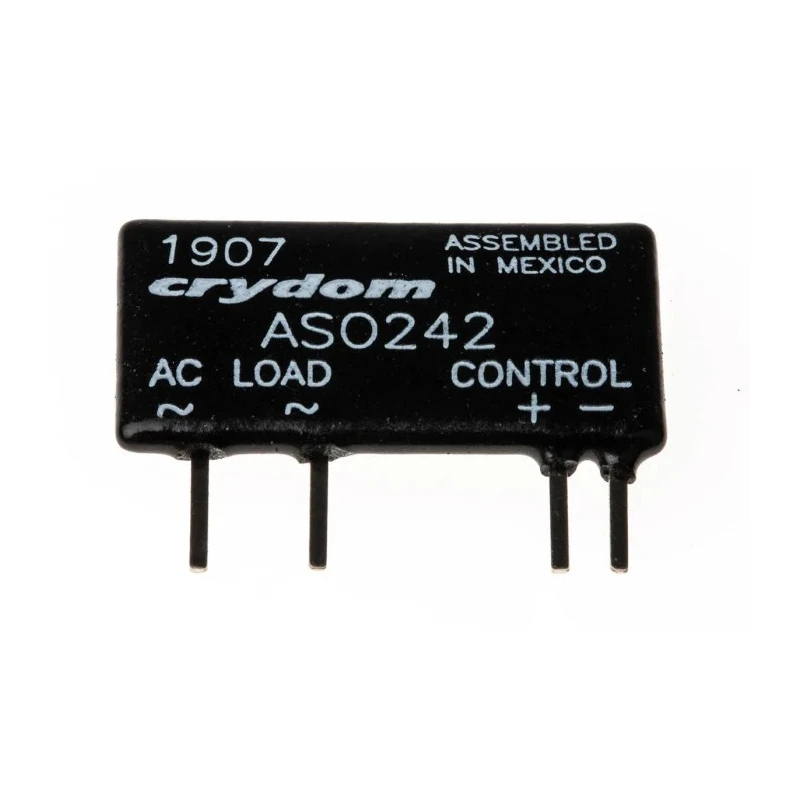

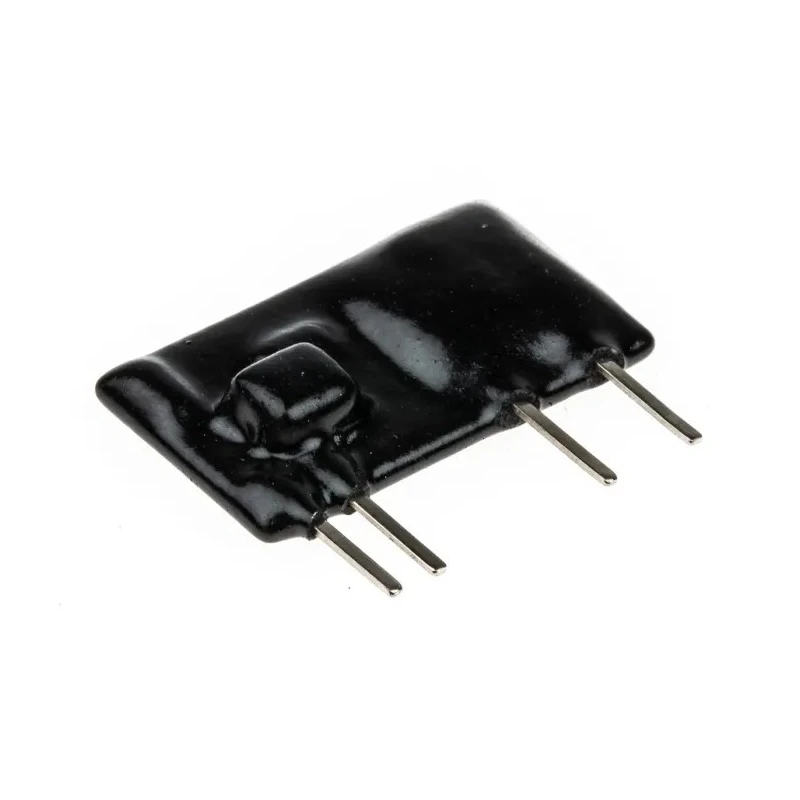

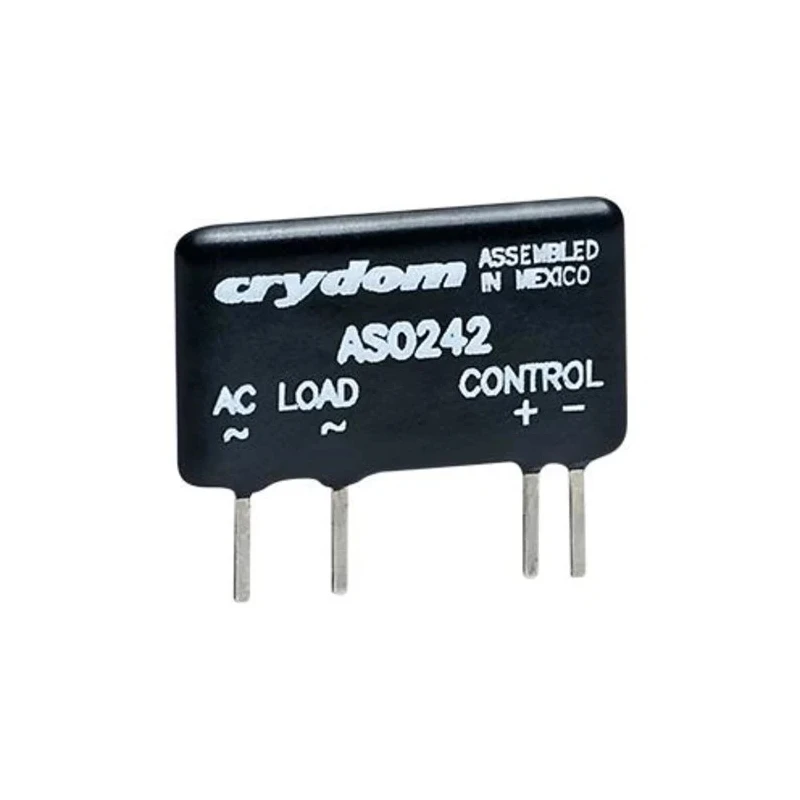

Crydom AS Series Solid State Relay, 2 A Load, PCB Mount, 280 Vrms Load, 10V dc Control ASO242

Crydom ASO242 is a high-quality solid state relay designed for industrial and automation applications that require reliable control of AC loads. It accommodates a maximum load current of 2 A and can handle load voltages up to 280 Vrms. The relay uses 10V DC control voltage and offers zero-cross switching, minimizing electrical noise and ensuring interference-free operation in sensitive equipment.

Encapsulated within a thermally conductive epoxy housing, the relay efficiently dissipates heat and maintains cool operation even under demanding conditions. It supports a wide operating temperature range from -30°C to +80°C, making it highly versatile for diverse industrial environments including motor control, robotics, and HVAC systems.

The relay is designed for PCB mounting with solder pin terminals for straightforward installation. Measuring 24.1 mm in length, 12.7 mm in height, and 5.1 mm in width, it presents a compact footprint, minimizing PCB space requirements. The SCR output design contributes to energy efficiency by consuming minimal power during operation. With an off state leakage current of only 0.1 mA, it ensures minimal power wastage during idle periods.

This product complies with RoHS environmental standards and is manufactured in Mexico, affirming its compliance with international quality and safety norms. This relay supports zero-cross switching to reduce electrical noise and interference.

Operating temperature ranges from -30°C to +80°C, suitable for harsh environments. It is encapsulated in thermally conductive epoxy to enhance heat dissipation and maintain relay coolness. The SCR output enables energy-efficient operation with minimal power consumption.

Compact dimensions of 24.1 mm length, 12.7 mm height, and 5.1 mm width enable easy PCB integration. Off state leakage current is minimal at 0.1 mA, ensuring low power loss. The relay is RoHS compliant and manufactured in Mexico to high quality standards.

Ideal for use in industrial manufacturing, laboratory instrumentation, HVAC control, process control, and automation systems. This Solid State Relay provides long-lasting performance with no mechanical wear due to absence of physical contacts.
