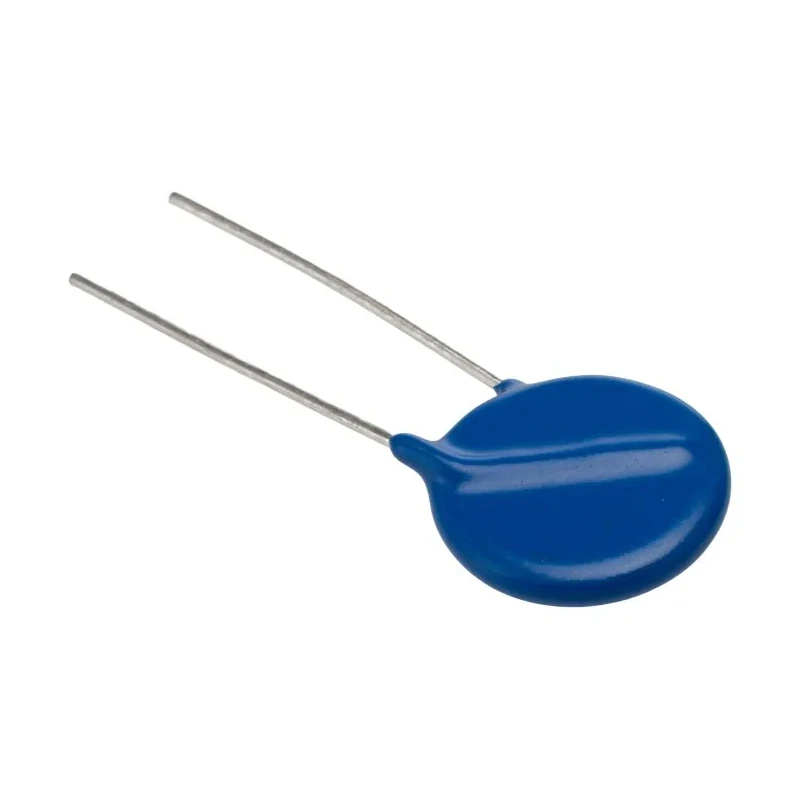

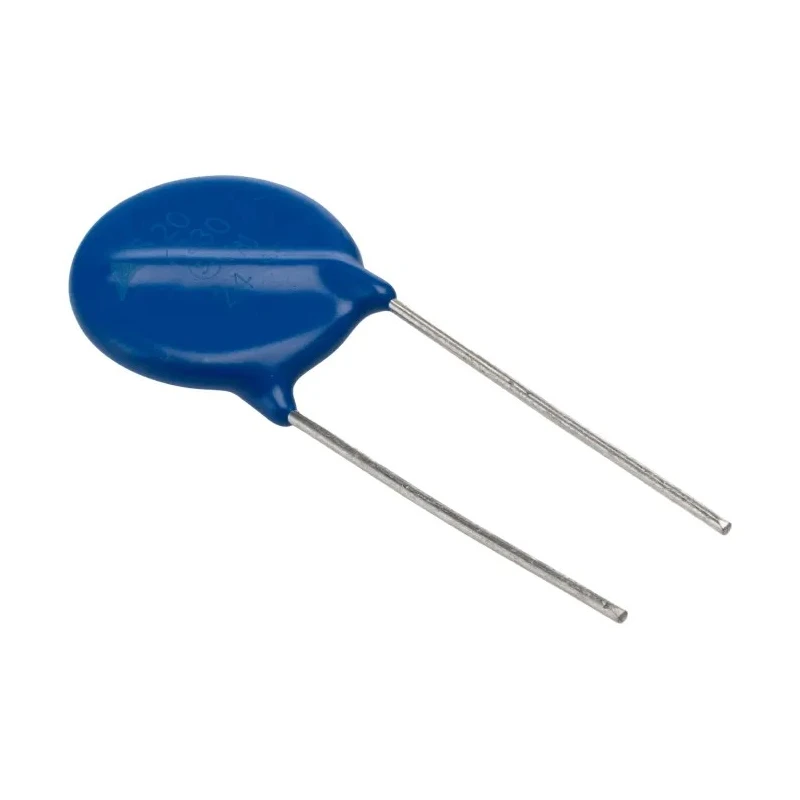

TDK Standard Metal Oxide Varistor 1 nF 100 A Clamping 595 V Diameter 21.5 mm B72220S0231K101
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 21.5mm |
| Brand | TDK |
| Material | Metal |
| THICKNESS | 5.1mm |
| Length | 25.5mm |
| Model | B72220S0231K101 |
| Packaging | Bulk |
| Series | Standard |
| Energy Rating | 130J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 1nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 300V dc |
| Standards/Approvals | VDE, UL, IEC, CSA, CQC |
| Pin Count | 2 |
| Termination Style | Solder |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 230V ac |
| Clamping Voltage VC | 595V |
| Clamping Current | 100A |
| Maximum Surge Current | 8kA |
| Varistor Voltage | 360 V |
Key Features
- Rated varistor voltage is 360 V to protect circuits effectively.
- Clamping voltage of 595 V ensures safe voltage limitation during surges.
- Maximum surge current capacity is 8 kA for transient energy absorption.
- Operates reliably between -40°C and 85°C for industrial environments.
- Compact radial epoxy-coated design with 21.5 mm diameter and 25.5 mm length.
- Solder termination style provides secure and stable mounting on PCBs.
- Meets approvals including VDE, UL, IEC, CSA, and CQC standards for quality assurance.
- Suitable for use in electronic, industrial, and power protection systems.
Product Description
The TDK B72220S0231K101 metal oxide varistor is a standard series device designed for effective surge protection and transient voltage suppression in electronic circuits.
With a varistor voltage rating of 360 V and clamping voltage of 595 V, it provides reliable voltage limitation during transient surges up to 8 kA maximum surge current capacity. Its compact form factor with a 21.5 mm diameter and 25.5 mm length radial epoxy-coated ceramic body ensures durability and ease of installation.
The varistor features solder termination leads with a 10 mm pitch, optimizing installation on printed circuit boards. It operates efficiently in harsh environments with a temperature range from -40°C to 85°C, making it suitable for industrial and commercial power protection applications.
Rated varistor voltage is 360 V to protect circuits effectively. Clamping voltage of 595 V ensures safe voltage limitation during surges. Maximum surge current capacity is 8 kA for transient energy absorption. Operates reliably between -40°C and 85°C for industrial environments.
Compact radial epoxy-coated design with 21.5 mm diameter and 25.5 mm length. Solder termination style provides secure and stable mounting on PCBs. Complies with major international standards including VDE, UL, IEC, CSA, and CQC.
Energy rating of 130 J supports effective energy dissipation.
This varistor is ideal for use in electronic components, power connectors, and surge protection applications in industries such as manufacturing, telecommunications, and laboratory equipment.
Explore additional TDK electronic components and Varistors on EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage rating of this model is 360 V, which is designed to protect circuits effectively during transient surges.
This varistor has a maximum surge current capacity of 8 kA, allowing it to absorb significant transient energy.
The varistor has a diameter of 21.5 mm and a length of 25.5 mm, with a thickness of 5.1 mm.
The clamping voltage of this model is 595 V, ensuring safe voltage limitation during surges.
It operates reliably between -40°C and 85°C, making it suitable for industrial environments.
This model features a solder termination style, which provides secure and stable mounting on printed circuit boards.
The energy rating of this varistor is 130 J, supporting effective energy dissipation during operation.
It complies with several international standards including VDE, UL, IEC, CSA, and CQC for quality assurance.
The maximum AC voltage rating for this model is 230 V AC, suitable for various applications.
This varistor has a capacitance of 1 nF, which is relevant for its performance in surge protection.
This model has a pin count of 2, facilitating its connection in electronic circuits.
It is suitable for use in electronic components, power connectors, and surge protection applications across various industries.
