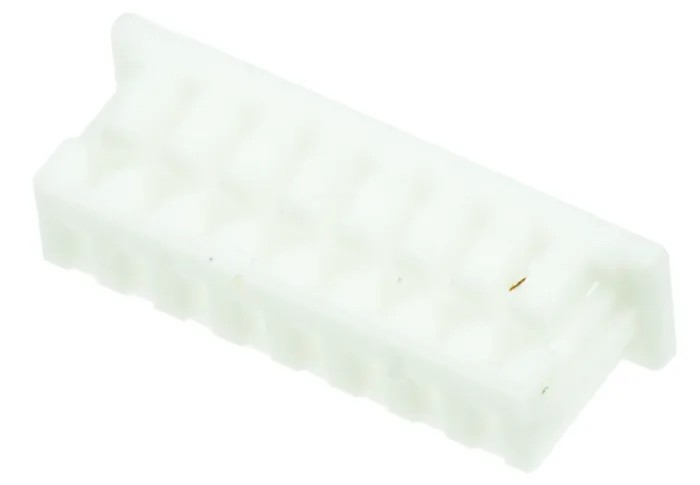

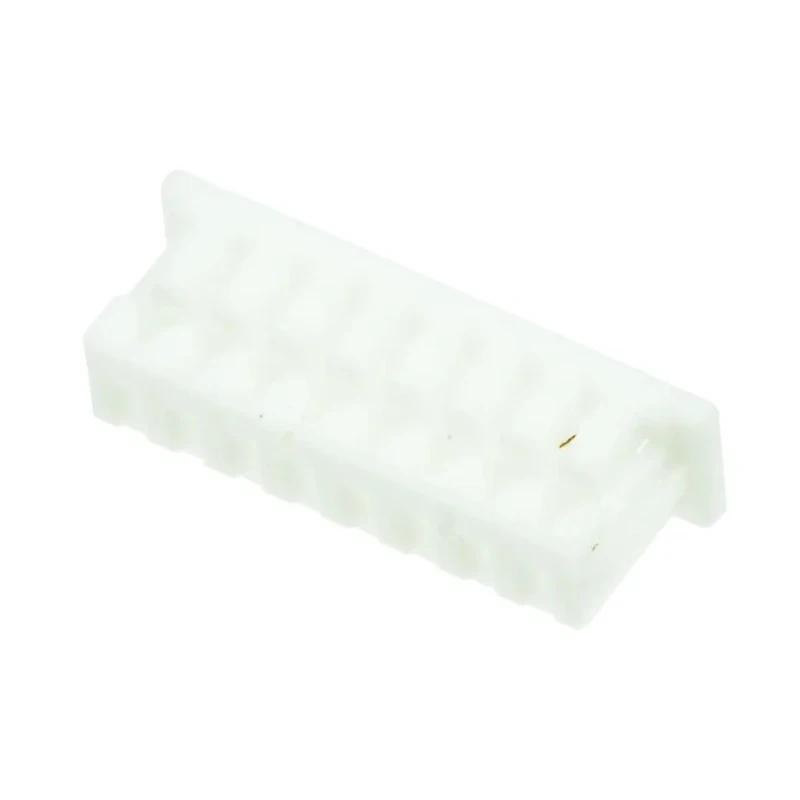

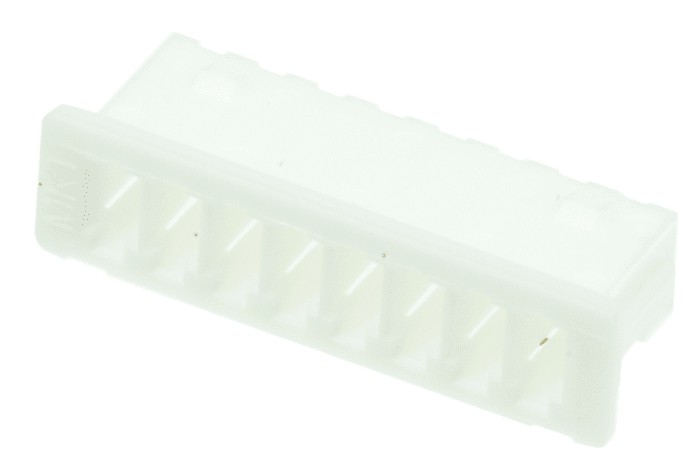

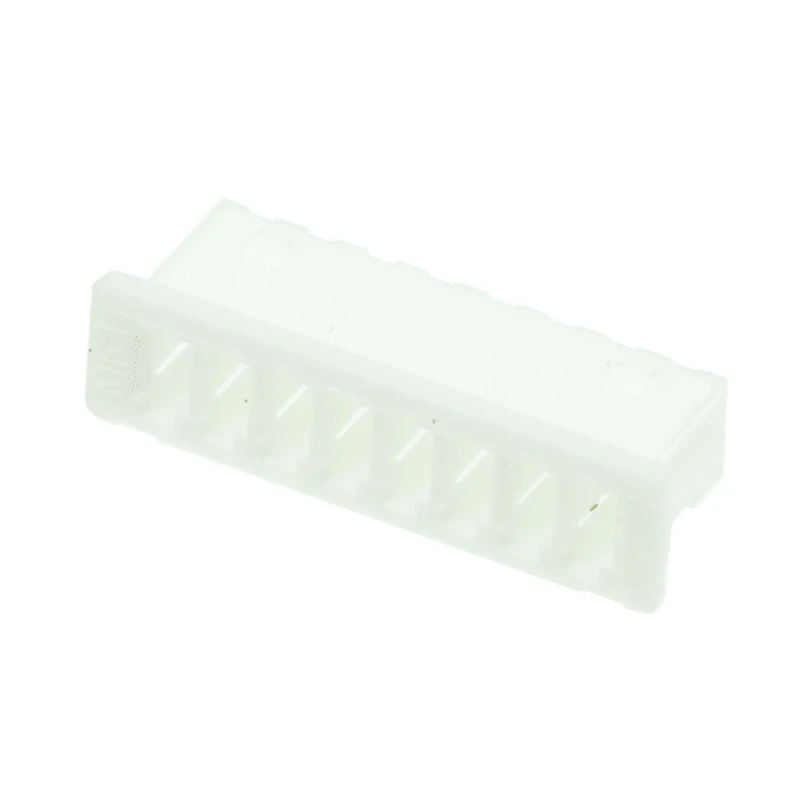

Molex PicoBlade Female Connector Housing 1.25 mm Pitch 8 Way 1 Row Straight 51021-0800
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 11.75mm |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | PicoBlade |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | PicoBlade Wire-to-Wire Connector, PicoBlade Wire-to-Board Connector |
| Number of Contacts | 8 |
| Connector Gender | Female |
Key Features
- Constructed from durable polybutylene terephthalate (PBT) for heat resistance and longevity.
- Compact dimensions of 11.75 mm length, 3.2 mm width, and 3.95 mm depth suitable for limited PCB space.
- Single row, straight body orientation facilitates easy insertion and secure connection.
- Designed for use with Molex PicoBlade male contacts to prevent mismating and ensure secure locking.
- Wide operating temperature range from -40°C to +85°C supports demanding industrial applications.
- Ideal for automotive, consumer electronics, medical equipment, and computing industries.
- Features friction locks that assure strong, stable mating under vibration or movement.
- Polarized crimp terminals minimize the risk of incorrect connector assembly.
Product Description
Molex 51021-0800 PicoBlade Female Connector Housing is an 8 Way 1 Row connector housing designed for robust wire-to-wire and wire-to-board connections in compact spaces. With its 1.25 mm pitch and straight body orientation, it facilitates simple and secure interfacing in electronic assemblies.
Manufactured with polybutylene terephthalate (PBT), this housing provides excellent durability and heat resistance. Its compact form factor of approximately 11.75 mm length, 3.2 mm width, and 3.95 mm depth makes it ideal for use on printed circuit boards that require space efficiency.
The friction lock mechanism ensures a secure and stable mating, while polarization of crimp terminals prevents incorrect insertion and potential damage to the circuit. This connector housing supports a wide temperature range from -40°C to +85°C, making it suitable for use in demanding environments such as automotive and industrial sectors.
Applications include use in automotive systems, consumer electronics, medical device manufacturing, computers, and data communication equipment. The PicoBlade series connectors from Molex are well respected for saving PCB space while maintaining reliable performance.
This product complements the existing line of PicoBlade wire-to-wire and wire-to-board connectors, allowing designers to create highly organized and reliable electrical assemblies. There are 8 contact positions arranged in a single row, enhancing wiring organization and connectivity simplicity.
Durable polybutylene terephthalate (PBT) housing material for heat resistance. Compact single row, 8 contact positions with 1.25 mm pitch spacing. Straight orientation and friction locks for secure mating. Polarized crimp terminals to prevent incorrect connector assembly.
Operating temperature range from -40°C to +85°C for harsh conditions. Suitable for applications in automotive, consumer electronics, medical, and computing industries. Explore Molex PicoBlade Connector Housings on EnvMart for detailed product selection and compatibility information.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.25 mm.
This model features 8 contact positions arranged in a single row.
It supports a wide operating temperature range from -40°C to +85°C.
The housing is constructed from polybutylene terephthalate (PBT), which provides heat resistance and durability.
The Molex PicoBlade female connector housing has a straight orientation.
It is designed for use with Molex PicoBlade wire-to-wire and wire-to-board connectors.
The dimensions are approximately 11.75 mm in length, 3.2 mm in width, and 3.95 mm in depth.
It features a friction lock mechanism that ensures secure and stable mating under vibration or movement.
Yes, the crimp terminals are polarized to minimize the risk of incorrect connector assembly.
It is suitable for applications in automotive, consumer electronics, medical equipment, and computing industries.
This model uses a cable mount type.
The country of origin for this connector housing is India.
