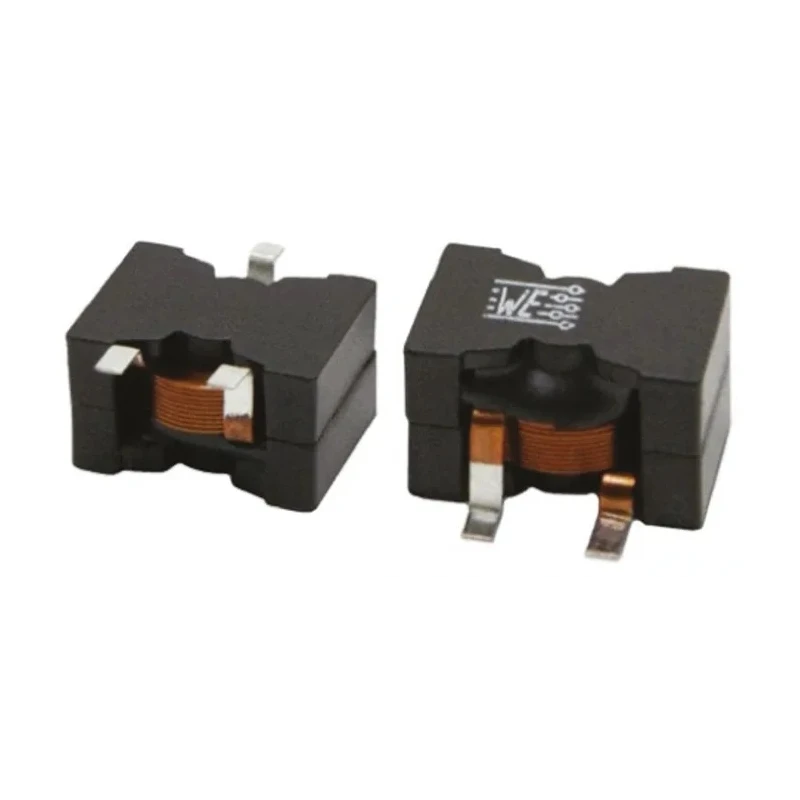

Wurth Elektronik WE-HCF 2013 Shielded Wirewound Surface Mount Inductor with Manganese Zinc Ferrite Core, 22 μH 7443632200

Wurth Elektronik 7443632200 is a high-quality WE-HCF series wirewound shielded surface mount inductor constructed with a manganese zinc ferrite core. Featuring a flat wire winding design, it delivers an inductance of 22 μH with a tolerance of ±15%, capable of handling up to 12.5A DC current. The inductor is packaged in a 2013 tape and reel format optimized for surface mount technology and automated PCB assembly processes.

This component is RoHS compliant and meets automotive-grade robustness under AEC-Q200 standard, making it suitable for industrial and automotive applications. It operates reliably within a temperature range of -40°C to 125°C and incorporates magnetic shielding to reduce electromagnetic interference in sensitive circuits.

The WE-HCF series is ideal for use as storage inductors in high-efficiency DC/DC converters, including single and polyphase buck converters, as well as filters in audio applications. Its flat wire winding and molded design enhance thermal dissipation and mechanical stability.

The inductor’s maximum self-resonant frequency of 12.5 MHz enables effective performance in switching power supplies and high frequency signal filtering. Its compact package dimensions (Length 21.8mm, Height 14.5mm, Depth 21.5mm) make it suitable for dense PCB layouts.

Inductance of 22 μH with ±15% tolerance ensures stable performance. Supports maximum DC current of 12.5A for demanding circuits. Package and case size 2013 suitable for surface mount assembly. Core material is high-quality manganese zinc ferrite for low loss.

Complies with automotive standard AEC-Q200 and RoHS regulations. Inductor features shielding to reduce electromagnetic interference. Designed for operation between -40°C and 125°C temperatures. Tape and reel packaging provides ease of automated PCB assembly.

Maximum self-resonant frequency of 12.5 MHz suitable for high frequency filtering.

This product is manufactured in China and supplied new, adhering to strict quality and environmental standards. It is suitable for electronics manufacturing, automotive electronics, industrial control systems, and power management applications.
