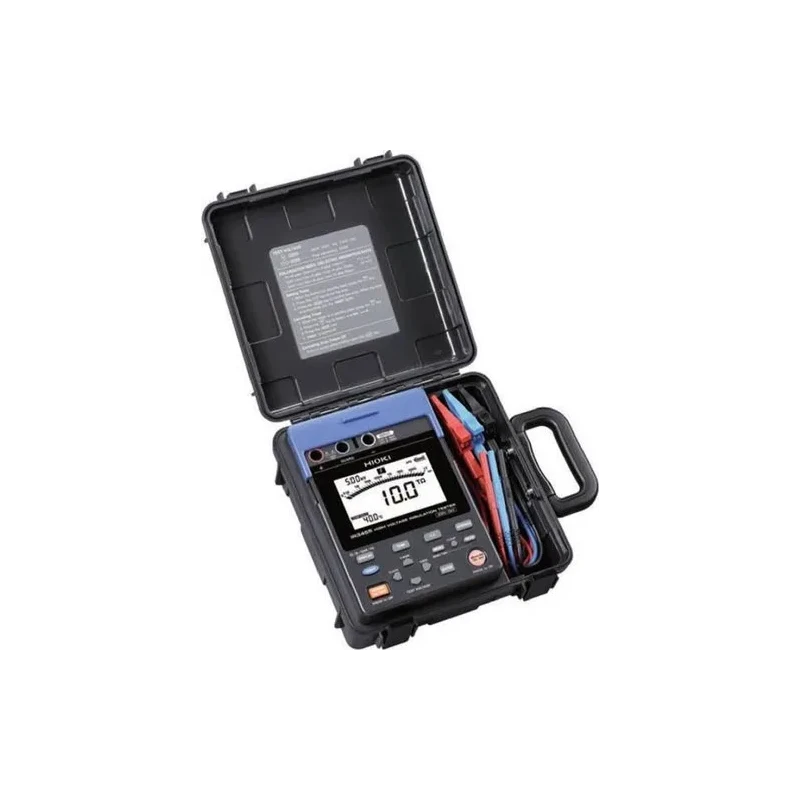

Hioki IR-3455 5KV Digital Insulation Tester Up To 10T Ohms
Specifications
| Display | Digital LCD max. 999 dgt. with backlight Bar graph display |
|---|---|
| Range | 250 500 1000 2500 5000V |
| Power Supply | LR6 (AA) alkaline batteries 6 Battery pack 9459 or AC adapter 9753 or 9418-15 (100 - 240 VAC) |
| Applications | Insulation Resistance Testing |
| Model | Hioki IR3455 |
| Weight | 3Kg |
| Batteries | AA |
| Temperature measurement | -10.0 C to 70.0 C 3 ranges (used with optional sensor) |
| Test Voltage (V) | 5000 (5 Range) |
| Test Current | 2mA |
| Dimensions and mass | 260 mm (10.24 in)W 250.6 mm (9.87 in)H 119.5 mm (4.70 in)D 2.8 kg (98.8 oz) |
| Voltage measurement | 50 V to 1.00 kV DC 50 V to 750 V AC (50/60 Hz) |
Key Features
- Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
- PI (Polarization Index) and DAR (Dielectric Absorption Ratio) automatically calculated / display
Product Description
Hioki IR-3455 5KV Digital Insulation Tester Up To 10T Ohms, Hioki insulation resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR3455 is a 5-range, 250 V to 5000 V digital insulation resistance tester offering up to 10 too of insulated resistance testing. High-performance features include bar graph, built-in memory, leak current and voltage testing, and DAR and PI calculation capabilities to help shorten work time associated with field insulation testing
- Data memory function to reduce handwritten notes
- Bright LED luminous scale
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki IR-3455 can measure insulation resistance up to 10 teraohms (10T Ohms).
This model offers five test voltage options: 250 V, 500 V, 1000 V, 2500 V, and 5000 V.
The weight of this insulation tester is 3 kg.
It features a digital LCD display with a maximum of 999 digits and a bar graph display, including a backlight for visibility.
It can be powered by LR6 (AA) alkaline batteries, a battery pack 9459, or an AC adapter 9753 or 9418-15 (100 - 240 VAC).
The operating temperature range is from -10.0 °C to 70.0 °C when used with an optional sensor for temperature measurement.
It can measure DC voltage from 50 V to 1.00 kV and AC voltage from 50 V to 750 V (50/60 Hz).
The test current output is 2 mA.
This model is designed for insulation resistance testing, making it suitable for high-voltage equipment such as transformers, cables, and motors.
The dimensions are 260 mm (W) x 250.6 mm (H) x 119.5 mm (D).
Yes, it includes a built-in memory function to help reduce handwritten notes during testing.
It features automatic calculation of Polarization Index (PI) and Dielectric Absorption Ratio (DAR), along with a bar graph display to enhance testing efficiency.
