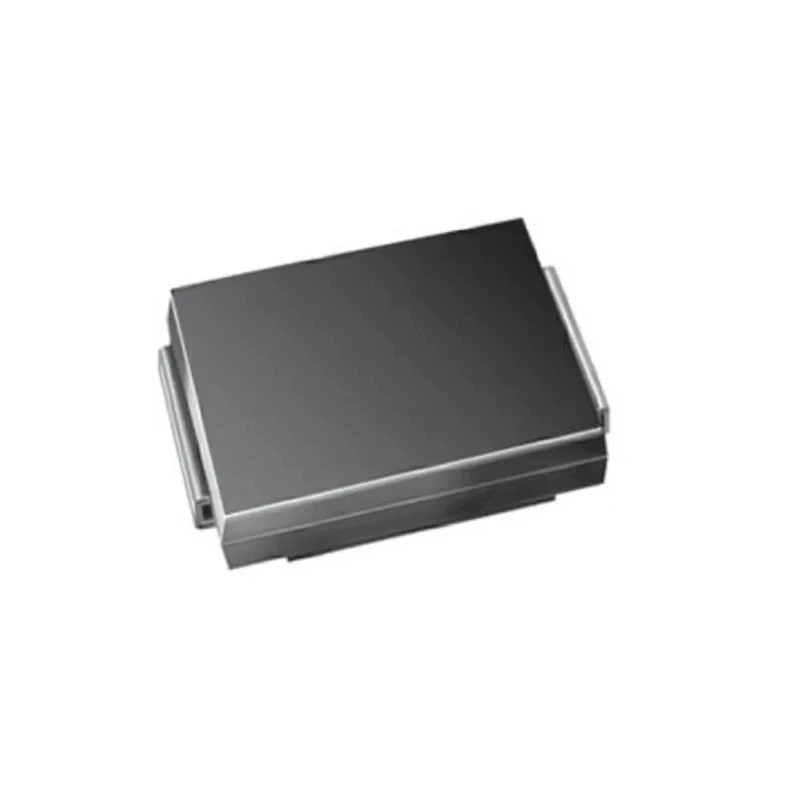

Vishay Bi-Directional TVS Diode 3000 W Peak Pulse Power, Surface Mount DO-214AB Package SMC3K54CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SMC3K54CAHM3_A/H |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Clamping Voltage VC | 87.1V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 60V |
| Maximum Reverse Stand-off Voltage Vwm | 54V |
| Peak Pulse Power Dissipation Pppm | 3000W |
| Test Current It | 1μA |
| Maximum Peak Pulse Current Ippm | 34.4A |
| Maximum Reverse Leakage Current | 1μA |
| Standards/ApprovalsISO 16750-2, ISO 7637-2 | 2011, JESD 22-B102, RoHS, UL 94, J-STD-002 |
Key Features
- Offers transient voltage suppression for sensitive electronics protection.
- Bi-directional polarity suitable for use in ICs, MOSFETs, and sensor signal lines.
- Withstands peak pulse power of 3000 W using a 10/1000 μs waveform.
- Features fast response time and low incremental surge resistance.
- Operating temperature range from -55°C up to 175°C ensures reliability under harsh conditions.
- Compliant with automotive standard AEC-Q101 and multiple industry standards including ISO 16750-2.
- Package type DO-214AB facilitates surface mounting for compact PCB designs.
- Maximum peak pulse current rated at 34.4 A with a clamping voltage of 87.1 V.
Product Description
Vishay SMC3K54CAHM3_A/H is a bi-directional TVS Diode designed for transient voltage suppression with a peak pulse power dissipation of 3000 W. It features a surface mount DO-214AB (SMC) package, making it ideal for compact electronics assemblies.
This diode protects sensitive circuitry such as ICs, MOSFETs, and signal lines of sensor units from voltage transients caused by inductive load switching and lightning events. It is suitable for use in consumer electronics, computers, industrial equipment, automotive systems, and telecommunication devices.
The device operates reliably within a temperature range of -55°C to +175°C and complies with automotive standard AEC-Q101 as well as other stringent industry standards including ISO 16750-2, ISO 7637-2, JESD 22-B102, UL 94, and J-STD-002. It delivers excellent clamping capability with a clamping voltage of 87.1 V and supports a maximum peak pulse current of 34.4 A.
The diode's fast response time and low incremental surge resistance ensure effective protection during transient events. It supports ESD protection and meets MSL level 1 per J-STD-020 standards, allowing for high-temperature soldering processes without degradation.
This component is a reliable choice for enhancing the durability and safety of electronic devices in multiple industries. Its surface mount design simplifies PCB integration while maintaining high protection performance.
Offers transient voltage suppression for sensitive electronics protection. Bi-directional polarity suitable for use in ICs, MOSFETs, and sensor signal lines. Withstands peak pulse power of 3000 W using a 10/1000 μs waveform.
Features fast response time and low incremental surge resistance. Operating temperature range from -55°C up to 175°C ensures reliability under harsh conditions. Compliant with automotive standard AEC-Q101 and multiple industry standards including ISO 16750-2.
Package type DO-214AB facilitates surface mounting for compact PCB designs. Maximum peak pulse current rated at 34.4 A with a clamping voltage of 87.1 V. Includes ESD protection to safeguard against electrostatic discharge events.
Suitable for consumer, industrial, automotive, telecommunication, and computer applications. Explore more electronic components and semiconductors at EnvMart to find the right solutions for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMC3K54CAHM3_A/H has a peak pulse power dissipation rating of 3000 W.
This diode operates reliably within a temperature range of -55°C to +175°C.
The clamping voltage for this model is 87.1 V.
It supports a maximum peak pulse current of 34.4 A.
The diode is packaged in a DO-214AB (SMC) surface mount package, suitable for compact PCB designs.
Yes, it complies with the automotive standard AEC-Q101 and other industry standards including ISO 16750-2.
This model is suitable for use in consumer electronics, computers, industrial equipment, automotive systems, and telecommunication devices.
The minimum breakdown voltage (Vbr) is 60 V.
The maximum reverse stand-off voltage (Vwm) is 54 V.
The maximum reverse leakage current is 1 μA.
Yes, it includes ESD protection to safeguard against electrostatic discharge events.
It meets multiple standards including ISO 7637-2, JESD 22-B102, UL 94, and J-STD-002.
