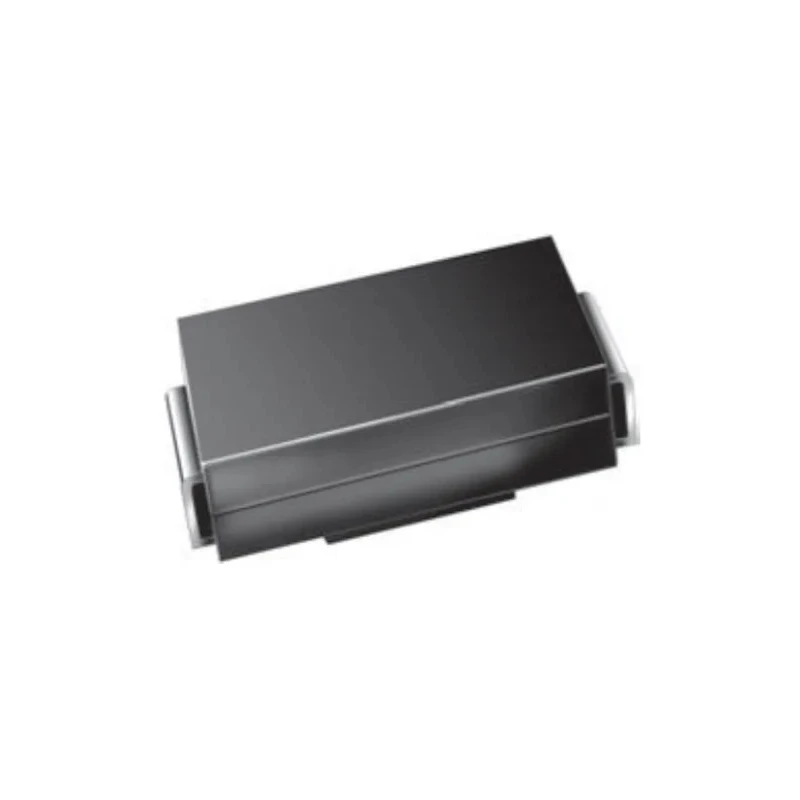

Vishay Bi-Directional TVS Diode 400 W Peak Pulse Power Surface Mount DO-214AC Package SMAJ9.0CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.79mm |
| Length | 4.5mm |
| Model | SMAJ9.0CAHM3_A/H |
| Width | 2.29mm |
| Mount Type | Surface |
| Series | SMAJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 15.4V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 10V |
| Maximum Reverse Stand-off Voltage Vwm | 9V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 26A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Bi-directional diode suitable for protecting sensitive electronics from voltage transients.
- Peak pulse power dissipation rated at 400 watts for robust protection.
- Surface mount package type DO-214AC (SMA) enables automated PCB assembly.
- Wide operating temperature range from -65°C to 150°C ensures reliability in harsh environments.
- Clamping voltage of 15.4 volts provides effective voltage limiting during transient events.
- Low reverse leakage current of 1 µA minimizes power loss in normal operation.
- Meets RoHS compliance ensuring environmental safety.
- AEC-Q101 qualified meeting automotive industry standards for quality and reliability.
Product Description
Vishay SMAJ9.0CAHM3_A/H Bi-Directional TVS Diode is designed for transient voltage suppression in sensitive electronic components, providing robust 400 W peak pulse power protection. The device utilizes a low profile DO-214AC (SMA) surface mount package facilitating automated placement and soldering on printed circuit boards.
With a minimum breakdown voltage of 10 V and a maximum reverse standoff voltage of 9 V, this diode clamps voltage spikes to a maximum of 15.4 V, protecting ICs, MOSFETs, signal lines, and sensor units in consumer electronics, industrial equipment, automotive systems, and telecommunications.
It features excellent ESD protection, fast response times, and low incremental surge resistance, ensuring reliable shielding against voltage transients caused by inductive load switching and lightning-induced surges.
The diode supports a broad operating temperature range from -65°C to 150°C and offers a maximum peak pulse current of 26 A. Its glass-passivated chip junction enhances durability and long-term stability. Compliance with RoHS and AEC-Q101 standards confirms its suitability for environmentally responsible automotive applications.
Package dimensions are compact with a height of 2.79 mm, length of 4.5 mm, and width of 2.29 mm, making it suitable for integration in space-constrained electronic designs. Bi-directional transient voltage suppression for IC and sensor protection.
400 W peak pulse power dissipation capability at a 10/1000 µs waveform. DO-214AC surface mount package suited for automated assembly. Temperature operation from -65°C to 150°C for harsh environment resilience. Clamping voltage of 15.4 V for efficient voltage spike absorption.
Low leakage current of 1 µA for energy-efficient operation. RoHS compliant and AEC-Q101 automotive qualified.
This Vishay TVS Diode is ideal for use in industrial, automotive, telecommunications, and consumer electronics applications where protection against transient voltage events is critical. Explore EnvMart for more high-quality semiconductor components and protection devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMAJ9.0CAHM3_A/H TVS diode has a peak pulse power dissipation capability of 400 watts.
This diode has a clamping voltage of 15.4 volts, which helps in effective voltage limiting during transient events.
The maximum reverse stand-off voltage for this diode is 9 volts.
It operates within a wide temperature range from -65°C to 150°C, ensuring reliability in harsh environments.
The package dimensions are 2.79 mm in height, 4.5 mm in length, and 2.29 mm in width.
The maximum peak pulse current for this model is 26 A.
This diode comes in a DO-214AC (SMA) surface mount package, which is suitable for automated assembly.
Yes, it is RoHS compliant and meets the AEC-Q101 automotive standard for quality and reliability.
The minimum breakdown voltage is 10 volts.
The maximum reverse leakage current is 1 µA, which helps minimize power loss during normal operation.
It is ideal for protecting sensitive electronics in consumer electronics, industrial equipment, automotive systems, and telecommunications.
The glass-passivated chip junction enhances durability and long-term stability, along with excellent ESD protection and fast response times.
