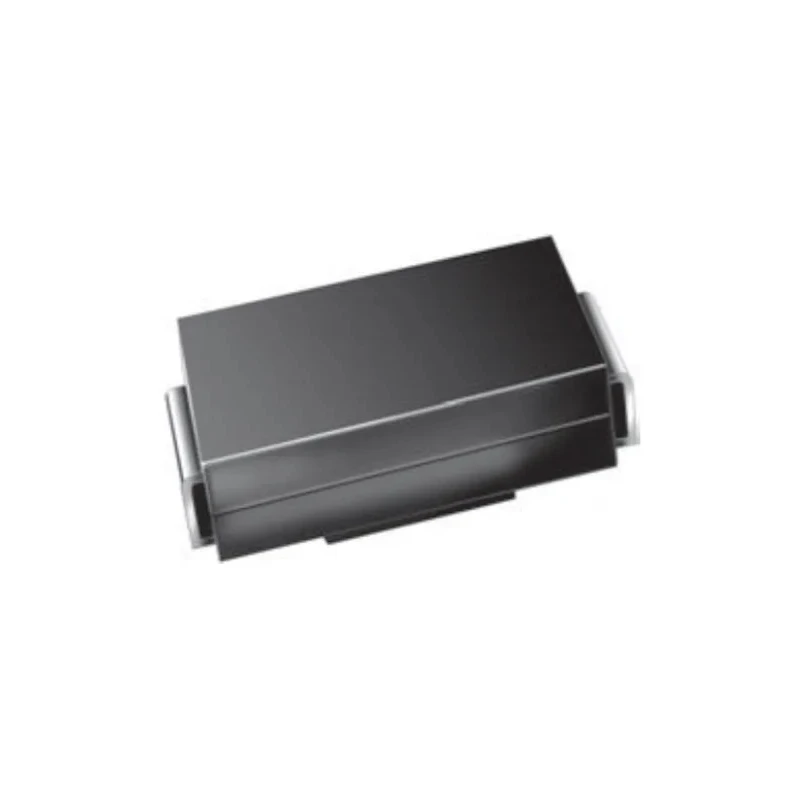

Vishay Bi-Directional TVS Diode Surface Mount DO-214AC 300 W Peak Pulse Power SMAJ160CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.79mm |
| Length | 4.5mm |
| Model | SMAJ160CAHM3_A/H |
| Width | 2.29mm |
| Mount Type | Surface |
| Series | SMAJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 259V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 178V |
| Maximum Reverse Stand-off Voltage Vwm | 160V |
| Peak Pulse Power Dissipation Pppm | 300W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 259A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Bi-Directional transient voltage suppression suitable for inductive load switching and lightning induced voltage spikes.
- 300 W peak pulse power dissipation with a 10/1000 µs waveform capacity.
- Clamping voltage of 259 V ensures excellent protection against voltage surges.
- Wide operating temperature range from -65°C to 150°C for versatile application environments.
- Compact dimensions with 4.5 mm length, 2.79 mm height, and 2.29 mm width for space-saving PCB designs.
- Surface mount DO-214AC (SMA) package type for automated assembly processes.
- Glass passivated chip junction enables very fast response and low incremental surge resistance.
- Compliant with RoHS standards and AEC-Q101 automotive qualification for reliable performance.
Product Description
Vishay SMAJ160CAHM3_A/H Bi-Directional TVS Diode is designed for protecting sensitive electronic components from transient voltage spikes caused by inductive load switching and lightning. This surface mount device in a compact DO-214AC package offers a peak pulse power dissipation of 300 W, making it ideal for industrial, automotive, telecommunications, and consumer electronic applications.
The diode features a bi-directional configuration capable of clamping voltage surges up to 259 V, effectively safeguarding circuits against voltage transients. Its wide operating temperature range from -65°C to 150°C and a maximum reverse stand-off voltage of 160 V ensures reliable operation in demanding environments.
With dimensions measuring 4.5 mm in length, 2.79 mm in height, and 2.29 mm in width, the device fits well in compact PCB layouts and supports high volume automated placement. The glass passivated chip junction enables fast response times and low incremental surge resistance, critical for protecting modern sensitive ICs, MOSFETs, and sensor units.
The product complies with RoHS environmental standards and holds the AEC-Q101 qualification, confirming its suitability for automotive system protection. It provides robust ESD defense with a maximum peak pulse current rating of 259 A.
Bi-Directional transient voltage suppression circuit protection. Surface mount DO-214AC package for streamlined PCB integration. 300 W peak pulse power capability with 10/1000 µs waveform. Compact size supporting space-constrained industrial applications.
Wide operating temperature range from -65°C to 150°C. RoHS compliant and AEC-Q101 automotive qualified. Glass passivated chip junction for improved reliability. Clamping voltage at 259 V for surge mitigation. Maximum peak pulse current of 259 A ensuring strong ESD protection.
Suitable for industrial, automotive, telecommunications, and consumer electronics.
EnvMart offers a comprehensive range of semiconductor protection devices including TVS Diodes to enhance the robustness of your electronic systems. Explore our catalog to find the Vishay SMAJ160CAHM3_A/H and other specialized components tailored for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMAJ160CAHM3_A/H has a peak pulse power dissipation of 300 W with a 10/1000 µs waveform capacity.
The clamping voltage for this bi-directional TVS diode is 259 V, which helps protect against voltage surges.
This model operates within a wide temperature range from -65°C to 150°C, making it suitable for various application environments.
The dimensions of this diode are 4.5 mm in length, 2.79 mm in height, and 2.29 mm in width, allowing for compact PCB designs.
The maximum reverse stand-off voltage for the Vishay SMAJ160CAHM3_A/H is 160 V.
This TVS diode complies with the AEC-Q101 automotive qualification, ensuring its reliability for automotive applications.
The maximum peak pulse current rating for this diode is 259 A, providing strong ESD protection.
Yes, the Vishay SMAJ160CAHM3_A/H is compliant with RoHS standards, ensuring it meets environmental regulations.
This model comes in a surface mount DO-214AC (SMA) package type, suitable for automated assembly processes.
The minimum breakdown voltage (Vbr) for the Vishay SMAJ160CAHM3_A/H is 178 V, which is essential for effective voltage suppression.
This bi-directional TVS diode is suitable for applications in industrial, automotive, telecommunications, and consumer electronics.
The test current (It) for the Vishay SMAJ160CAHM3_A/H is 1 mA, which is used for its performance evaluation.
