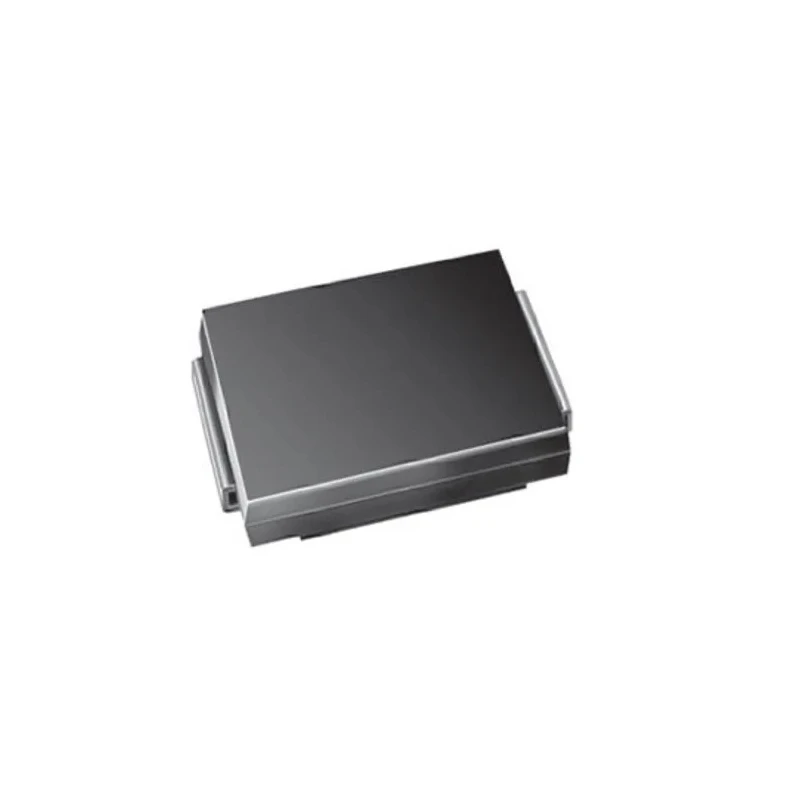

Vishay Bi-Directional TVS Diode 1500 W DO-214AB Package 1.5SMC120CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | 1.5SMC120CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | 1.5SMC |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 165V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 114V |
| Maximum Reverse Stand-off Voltage Vwm | 102V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.1A |
Key Features
- Designed for protection against voltage transients and surges in sensitive electronic circuits.
- Bi-directional operation with 114 V minimum breakdown voltage.
- Peak pulse power dissipation of 1500 W with a 10/1000 µs waveform.
- Clamping voltage of 165 V and maximum reverse stand-off voltage of 102 V.
- Low profile DO-214AB (SMC) surface mount package measuring 7.11 mm length by 6.22 mm height.
- Operating temperature range from -65°C to 150°C for high reliability.
- Glass passivated junction and very fast response to transient events.
- AEC-Q101 automotive qualification suitable for automotive and industrial applications.
Product Description
Vishay 1.5SMC120CAHM3_A/H Bi-Directional TVS Diode features a peak pulse power dissipation rating of 1500 W with a 10/1000 μs waveform, housed in a low profile DO-214AB surface-mount package. It offers reliable transient voltage suppression for sensitive electronics, protecting components such as ICs, MOSFETs, and sensor lines used in consumer, computer, automotive, industrial, and telecommunication systems.
The device supports bi-directional suppression with a minimum breakdown voltage of 114 V and a maximum reverse stand-off voltage of 102 V. It has a maximum peak pulse current of 9.1 A and clamps at 165 V, ensuring effective protection during voltage surges. Its glass passivated chip junction design enhances durability and quick response.
The operating temperature range from -65℃ to 150℃ ensures dependable performance in harsh environments. Compliance with RoHS and automotive standard AEC-Q101 highlights its suitability for deployment in industrial-grade and automotive electronics.
The compact package dimensions of 7.11 mm length, 6.22 mm height, and 2.62 mm width facilitate automated assembly processes and space-efficient PCB integration. This TVS diode is ideal for applications requiring robust ESD protection and surge immunity in high-reliability environments.
Designed for protection against voltage transients and surges in sensitive electronic circuits. Bi-directional operation with 114 V minimum breakdown voltage. Peak pulse power dissipation of 1500 W with a 10/1000 μs waveform.
Clamping voltage of 165 V and maximum reverse stand-off voltage of 102 V. Low profile DO-214AB (SMC) surface mount package measuring 7.11 mm length by 6.22 mm height. Operating temperature range from -65℃ to 150℃ for high reliability.
Glass passivated junction and very fast response to transient events. AEC-Q101 automotive qualification suitable for automotive and industrial applications. Meets RoHS environmental compliance standards.
Suitable for use in industrial, automotive, telecommunications, computer, and consumer electronic applications, the Vishay 1.5SMC120CAHM3_A/H delivers reliable surge protection to safeguard circuitry from damage, thus enhancing system robustness and longevity.
Explore our broad range of semiconductors and TVS Diodes at EnvMart for high-quality components tailored to your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay 1.5SMC120CAHM3_A/H is rated at 1500 W with a 10/1000 μs waveform.
This model has a minimum breakdown voltage of 114 V.
The clamping voltage for this TVS diode is 165 V.
The maximum reverse stand-off voltage is 102 V.
The operating temperature range is from -65°C to 150°C.
The package dimensions are 7.11 mm in length, 6.22 mm in height, and 2.62 mm in width.
This diode complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The maximum peak pulse current for the Vishay 1.5SMC120CAHM3_A/H is 9.1 A.
It uses a surface mount type, specifically the DO-214AB (SMC) package.
Yes, the Vishay 1.5SMC120CAHM3_A/H meets RoHS environmental compliance standards.
This model is suitable for applications in automotive, industrial, telecommunications, computer, and consumer electronics.
It features a glass passivated chip junction design, which enhances its durability and response speed.
