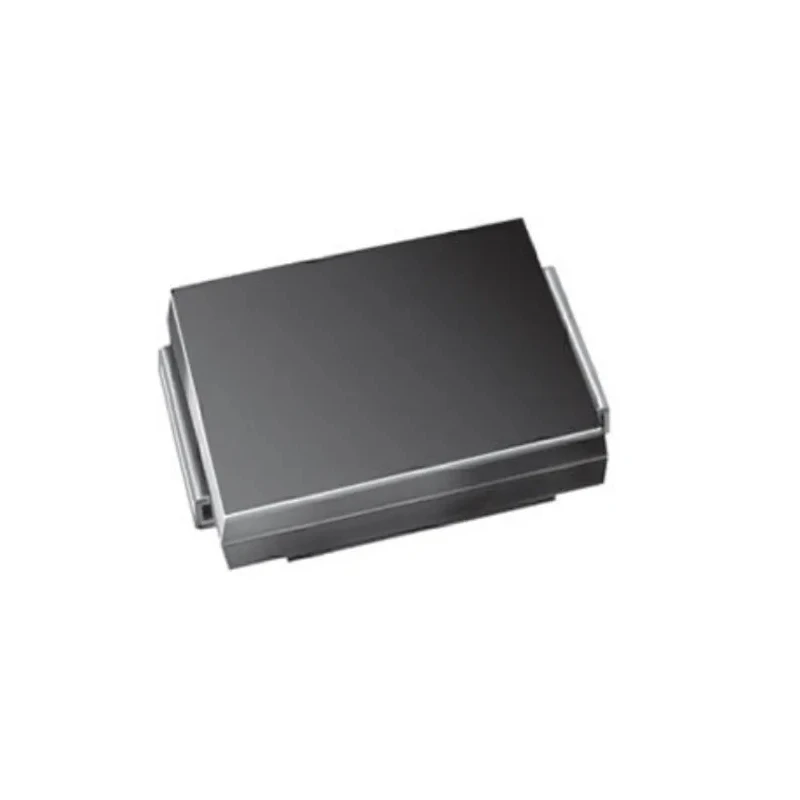

Vishay Bi-Directional TVS Diode 3 kW DO-214AB SMC3K100CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | SMC3K100CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 162V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 111V |
| Maximum Reverse Stand-off Voltage Vwm | 100V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 18.5A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for sensitive electronics and automotive applications.
- Peak pulse power dissipation of 3 kW.
- Surface mount package type DO-214AB (SMC).
- Operates with clamping voltage VC of 162 V.
- Minimum breakdown voltage of 111 V.
- Reverse stand-off voltage rated at 100 V.
- Fast response time ensures efficient voltage suppression.
- Meets RoHS and AEC-Q101 automotive standards.
Product Description
Vishay SMC3K100CAHM3_A/H Bi-Directional TVS Diode, 3 kW DO-214AB is engineered to provide robust protection for sensitive electronic circuits against voltage transients. With a peak pulse power dissipation capability of 3 kW, this surface mount diode is ideal for power management in automotive, industrial, computer, and telecommunication systems.
The device features bi-directional voltage suppression, making it suitable for protecting integrated circuits, MOSFETs, sensor units, and signal lines from spikes caused by inductive load switching or lightning. Its minimum breakdown voltage of 111 V, peak pulse current of 18.5 A, and clamping voltage of 162 V offer reliable performance in demanding environments.
Packaged in a compact DO-214AB (SMC) surface-mount form factor, it operates efficiently within a temperature range of -55°C to 150°C. The device includes ESD protection and meets RoHS and AEC-Q101 industry standards, ensuring environmentally safe and automotive-grade reliability. Reverse leakage current is maximized at 1 μA, contributing to low power losses and safe circuit operation.
Designed for sensitive electronics and automotive applications. Peak pulse power dissipation of 3 kW. Surface mount package type DO-214AB (SMC). Operates with clamping voltage VC of 162 V. Minimum breakdown voltage of 111 V.
Reverse stand-off voltage rated at 100 V. Fast response time ensures efficient voltage suppression. Meets RoHS and AEC-Q101 automotive standards.
Typical industrial applications include power supplies, consumer electronics, manufacturing control units, and telecommunications equipment. The Vishay SMC3K100CAHM3_A/H TVS diode is available supplied on a reel, facilitating automated PCB assembly for high-volume production.
Browse more Vishay TVS Diodes in Semiconductors on EnvMart for advanced circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMC3K100CAHM3_A/H TVS diode is 3 kW.
This model operates with a clamping voltage of 162 V.
The minimum breakdown voltage of the Vishay SMC3K100CAHM3_A/H is 111 V.
The dimensions of the DO-214AB package are 7.11 mm in length, 2.62 mm in width, and 6.22 mm in height.
The maximum reverse stand-off voltage for this diode is rated at 100 V.
It operates efficiently within a temperature range of -55°C to 150°C.
This diode meets the AEC-Q101 automotive standard.
The maximum reverse leakage current is 1 μA.
It is suitable for protecting integrated circuits, MOSFETs, sensor units, and signal lines in automotive and industrial applications.
The maximum peak pulse current for the Vishay SMC3K100CAHM3_A/H is 18.5 A.
The mounting type for this model is surface mount.
Yes, it meets RoHS standards, ensuring environmentally safe compliance.
