| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC143XQCZ |
| Mount Type | Surface |
| Series | PDTC143X |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 50 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 7V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

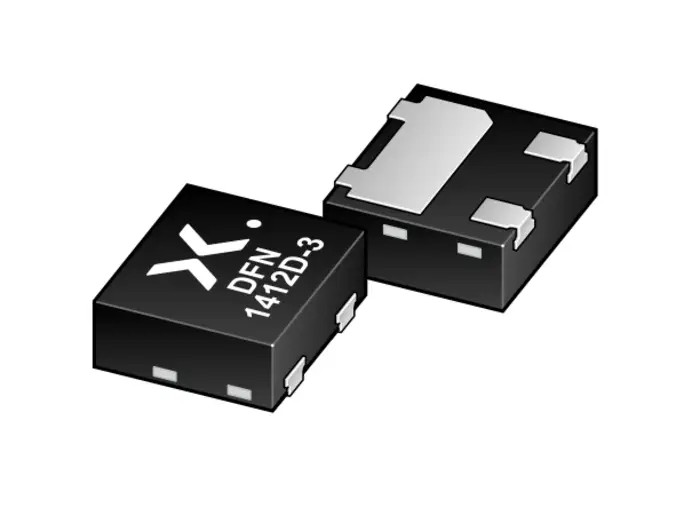

The Nexperia PDTC143XQCZ resistor-equipped transistor is an ultra-compact NPN transistor housed in the low-profile DFN1412D-3 (SOT8009) surface mount package, featuring built-in resistors to simplify your circuit designs and reduce overall component count.
Designed for reliable high-frequency switching, it supports a maximum collector current of 100 mA and a maximum collector-emitter voltage of 50 V, making it suitable for a wide range of digital and switching applications.
This transistor's low profile height of 0.5 mm and side-wettable flanks facilitate automated optical inspection of solder joints, ensuring high manufacturing quality and reducing assembly costs. The device complies with RoHS and automotive AEC-Q101 standards, guaranteeing environmental safety and automotive-grade reliability over a broad operating temperature range from -55°C up to 150°C.
Typical use cases include controlling integrated circuit inputs, switching electrical loads, and serving as a cost-effective alternative to the traditional BC857 series transistors in digital electronics.
Integrated resistors reduce external components. Compact 3-pin DFN1412D-3 surface mount package. High transition frequency of 230 MHz for fast switching. Wide operating temperature range from -55°C to 150°C. Automotive compliant with AEC-Q101 qualification.
Low profile and side-wettable flanks for AOI inspection. Ideal for digital circuit switching and load control applications. This transistor is suitable for industrial, automotive, and consumer electronics manufacturing where space-saving and component reduction are critical.
