| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC143ZQB-QZ |
| Mount Type | Surface |
| Series | PDTC143Z |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

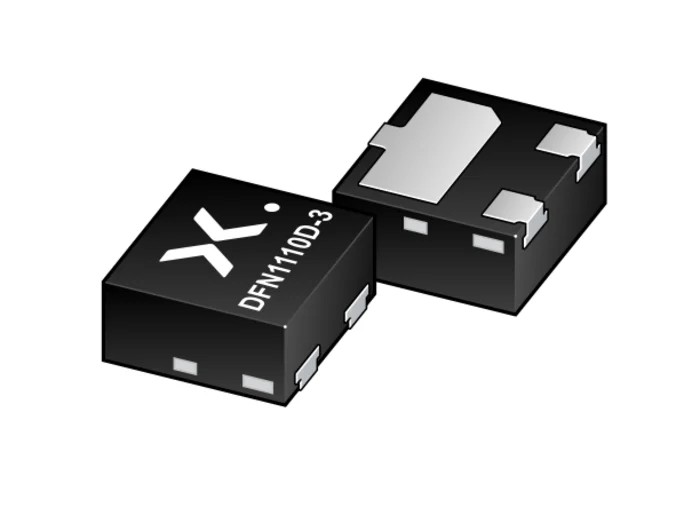

Nexperia PDTC143ZQB-QZ is a resistor-equipped NPN transistor designed for surface-mount applications in a space-saving 3-pin DFN1110D-3 package. It supports a maximum DC collector current of 100 mA and collector emitter voltage of 50 V, making it suitable for controlling IC inputs and switching loads efficiently.
This ultra-small transistor integrates built-in resistors, which reduces component counts and simplifies circuit layouts. The plastic package features side-wettable flanks, enabling automated optical inspection to ensure solder joint quality in automated manufacturing environments.
Operating temperature range from -55°C to 150°C and an impressive maximum transition frequency of 230 MHz make this transistor ideal for digital applications and fast switching requirements. It is also compliant with the automotive AEC-Q101 standard, ensuring reliability in demanding automotive electronic systems.
Typical use cases include digital circuit switching, load control in embedded electronics, and cost-effective alternatives for BC857 series transistors. The device's low profile (0.5 mm height) facilitates compact PCB designs.
The PDTC143Z series combines ease of use with high performance in semiconductor discrete components, making it suitable for industrial, automotive, and consumer electronics manufacturing and repair.
This transistor includes built-in resistors, simplifying circuit design. The compact DFN1110D-3 package supports automated assembly processes. Offers reliable operation across a broad temperature range. Compliant with RoHS and automotive AEC-Q101 standards.
Enables reduction in component count and cost-saving in assemblies. Discover more Nexperia semiconductors and related products in the EnvMart electronics section for reliable industrial and commercial applications.
