| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC114EQBZ |
| Mount Type | Surface |
| Series | PDTC114E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 30 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 30 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 250MHz |

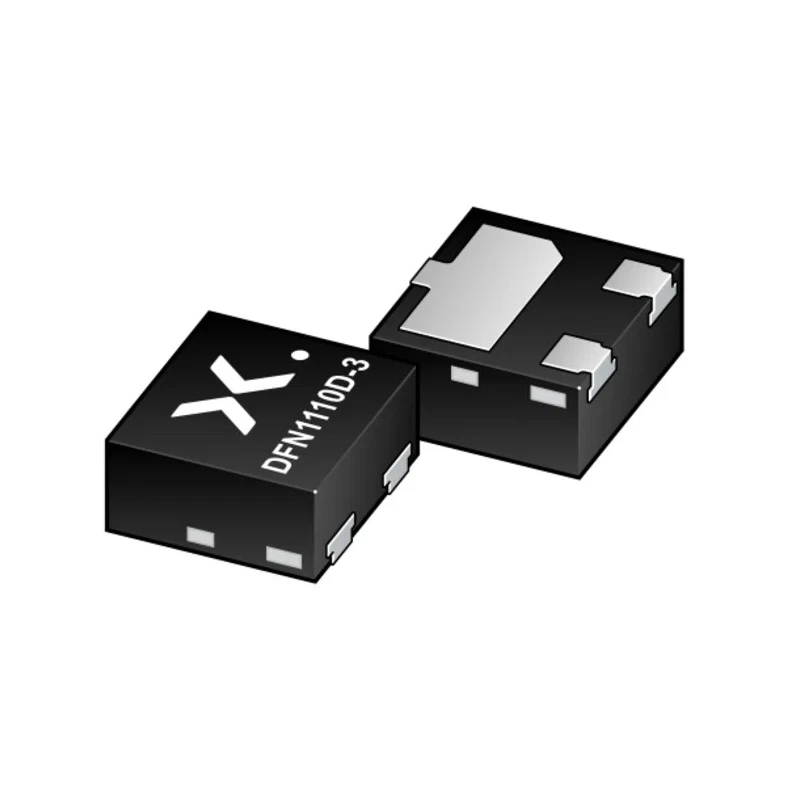

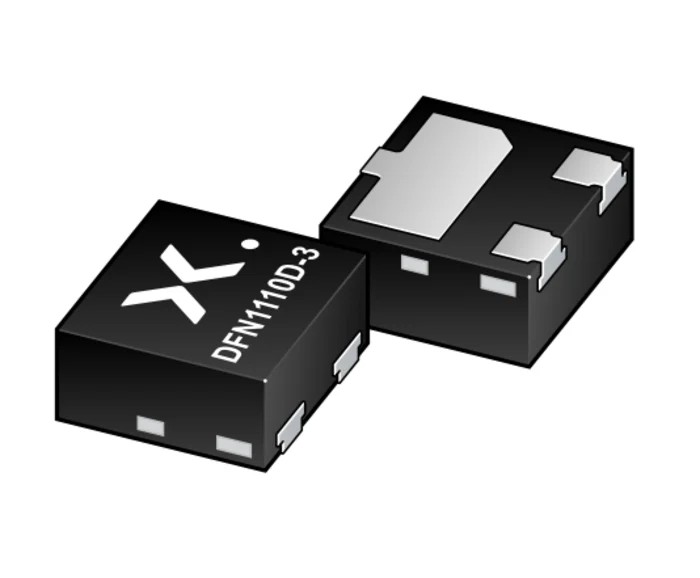

Nexperia PDTC114EQBZ resistor-equipped transistor is an NPN bipolar transistor designed for surface mount applications in digital and switching circuits. Packaged in an ultra small 30-pin DFN1110D-3 leadless SMD with side-wettable flanks, it offers a maximum DC collector current of 100 mA and collector-emitter voltage of 50 V. This device includes built-in resistors which simplify the overall circuit design and reduce component count, improving assembly efficiency and lowering costs.
The transistor exhibits a low profile package height of 0.5 mm suitable for automatic optical inspection during assembly processes. It supports operating temperatures from -55°C up to 150°C and complies with stringent automotive AEC-Q101 standards, making it reliable for automotive and industrial applications. The device achieves a high transition frequency of 250 MHz allowing fast switching performance ideal for digital logic and control circuits.
Key applications include controlling integrated circuit inputs and switching low to moderate loads in electronic equipment. This resistor-equipped transistor serves as a cost saving alternative to the BC857 series commonly used in digital applications. It is RoHS compliant ensuring environmental safety in manufacturing.
Ultra-small DFN1110D-3 SMD package with side-wettable flanks. Maximum DC collector current 100 mA. Built-in resistors reduce circuit complexity and cost. Low profile 0.5 mm package height supports AOI. RoHS and AEC-Q101 compliant for automotive applications.
Fast switching with 250 MHz transition frequency. Wide operating temperature range from -55°C to 150°C. Cost-effective alternative to BC857 series in digital circuits. Ideal for controlling IC inputs and switching loads.
Explore the range of Bipolar Transistors at EnvMart for diverse industrial, automotive, and electronic manufacturing needs.
Interested in this product? Drop us an email and we will let you know when it's available for order.
