| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA144EQCZ |
| Mount Type | Surface |
| Series | PDTA144E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

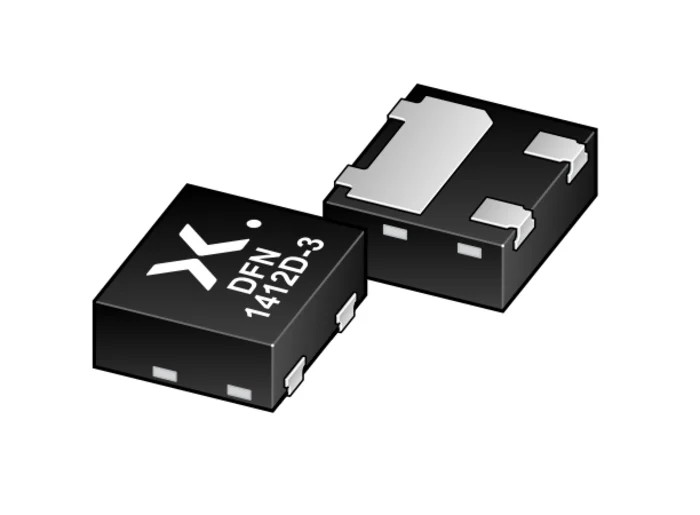

Nexperia PDTA144EQCZ resistor-equipped transistor is a surface-mount PNP bipolar transistor in a 3-pin DFN1412D-3 plastic package with side-wettable flanks. It supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 50 V, with a maximum emitter-base voltage of 10 V.
Designed for digital applications, this transistor integrates built-in resistors that simplify circuit designs by reducing external component needs and lowering pick and place costs. Its low package height of 0.5 mm allows for compact PCB layouts, and the side-wettable flanks make it suitable for automatic optical inspection (AOI) ensuring soldering quality in manufacturing processes.
The PDTA144EQCZ is RoHS compliant and meets the automotive AEC-Q101 standard, offering reliability for automotive and industrial environments. It operates stably across a wide temperature range from -55°C minimum to a maximum of 150°C, supporting robust performance in harsh conditions.
This transistor is suitable for controlling integrated circuit inputs and switching load operations efficiently in digital circuits. The built-in resistors reduce overall component counts and simplify PCB layouts. Its ultra-small DFN1412D-3 package offers a low-profile design and excellent solderability.
Automotive standard AEC-Q101 certification ensures suitability for automotive use.
PDTA144EQCZ resistor-equipped transistors are ideal for use in industrial, automotive, communication, and consumer electronic applications requiring compact, reliable switching transistors. This device provides a cost-saving alternative to traditional transistor series such as BC857 in digital switching and control functions.
