Nexperia Resistor-Equipped PNP Bipolar Transistor, -100 mA 50 V, 3-Pin DFN1110D-3 PDTA143XQB-QZ

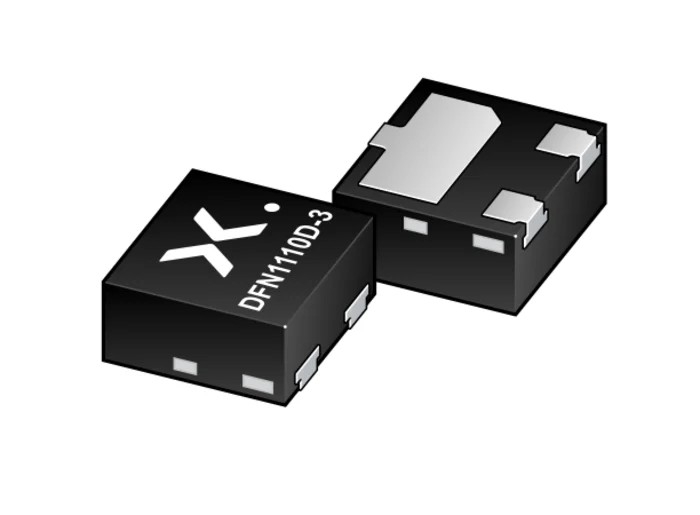

Nexperia PDTA143XQB-QZ resistor-equipped transistor is a premium PNP bipolar transistor designed for compact, efficient digital and switching applications. It provides a maximum DC collector current of 100 mA and a collector-emitter voltage of 50 V, housed in an ultra-small DFN1110D-3 surface mount package featuring plastic material with side-wettable flanks. This configuration enables ease of solder inspection and supports automatic optical inspection (AOI) during manufacturing.

The integrated resistors simplify circuit design by reducing the number of external components, lowering component count and pick-and-place costs. It operates reliably across a wide temperature range from -55°C to 150°C, compliant with RoHS and automotive AEC-Q101 standards, making it suitable for automotive and industrial environments.

This transistor serves as a cost-effective alternative to the BC857 series in digital applications, effectively controlling IC inputs and switching moderate loads while maintaining small form factor and low profile of 0.5 mm package height.

Compact 3-pin DFN1110D-3 surface mount package with side-wettable flanks. 100 mA maximum collector current for low power switching. Collector-emitter voltage rating of 50 V suitable for many control applications. Integrated resistors reduce external component needs.

Wide operating temperature range from -55°C to 150°C for robust use. Complies with RoHS and AEC-Q101 automotive standards. Low package height and suitable for automatic optical inspection. Ideal for digital switching and controlling IC inputs.

This resistor-equipped transistor is widely used in industrial, automotive, digital electronics, and control systems for applications requiring reliable switching with integrated resistors, space savings, and cost efficiency. Explore more Bipolar Transistors for your design requirements on EnvMart.
